| Application: | Laser Marking |
|---|---|
| Certification: | ISO |
| Brand Name: | Delphi |
| Graphic Format Supported: | DWG,DXF |
| Condition: | New |
| Applicable Material: | Various of metals, alloy, semiconductor, diamond, jade, sapphire , cer |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Power(W): | 3W,10W,30W,60W |
| Model Number: | Fast laser marking machine |
| Place of Origin: | China (Mainland) |
| Working Accuracy: | 0.005mm |
| Cooling Mode: | Air Cooling |
| Laser Type: |
Quick Details
Specifications

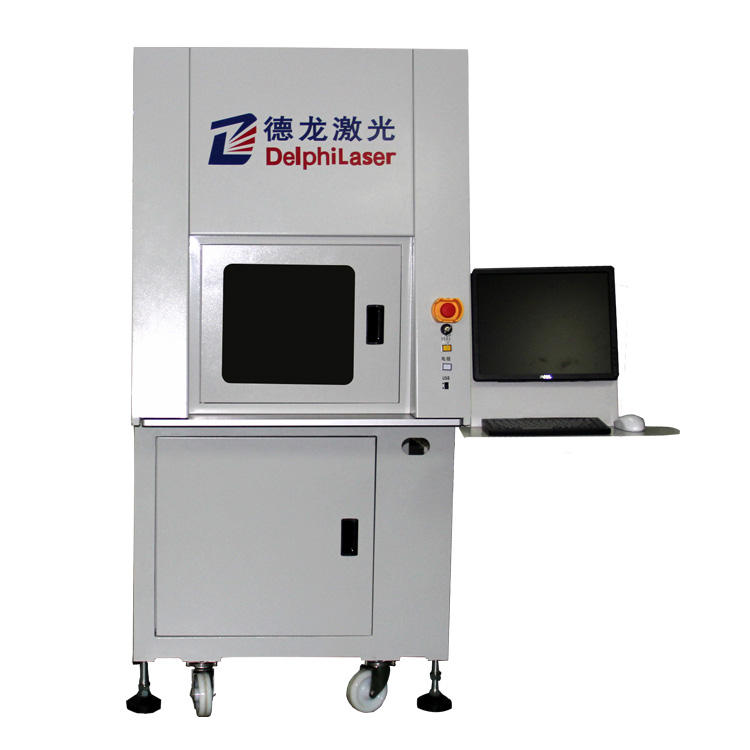

Fast (Pico/ Femtosecond) laser marking machine
1.Brief Introduction:
1.Brief Introduction:
Fast laser marking machine uses Pico/ femtosecond laser produced by Delphi, with low pulse width below 15 ps, UV, green and infrared. Which makes material surface smooth, no heating effect nor chipping.
2.Techincal parameters:
Power:3W,10W,30W,60W
Wave length:1064nm,532nm,355nm
Pulse width <15ps
Single pulse energy >0.1mJ
Beam diameter:10~30um
Marking area: 60mm*60mm- 250mm*250mm
Repetition accuracy:0.005mm
Scanning speed:5000mm/s
3.Performance features:
It is mostly used in high quality marking request, sometimes it's also one kind of anti- counterfeiting technology. It also can process ( drilling, scribing ) on different materials.
Sample Figure
