Product Main

Quick Details

Brand Name: Grewin
Size: 20cm*25cm*20cm
Type: Current Transformer
Material: Epoxy
Color: white
Model Number: GWSCCT751
Place of Origin: China (Mainland)
Rated Input: 5A-5000A
Measuring Range: 10%in-130%in
Rated Output: 0.333V(AC) or 0-500mA

Specifications

Product Description

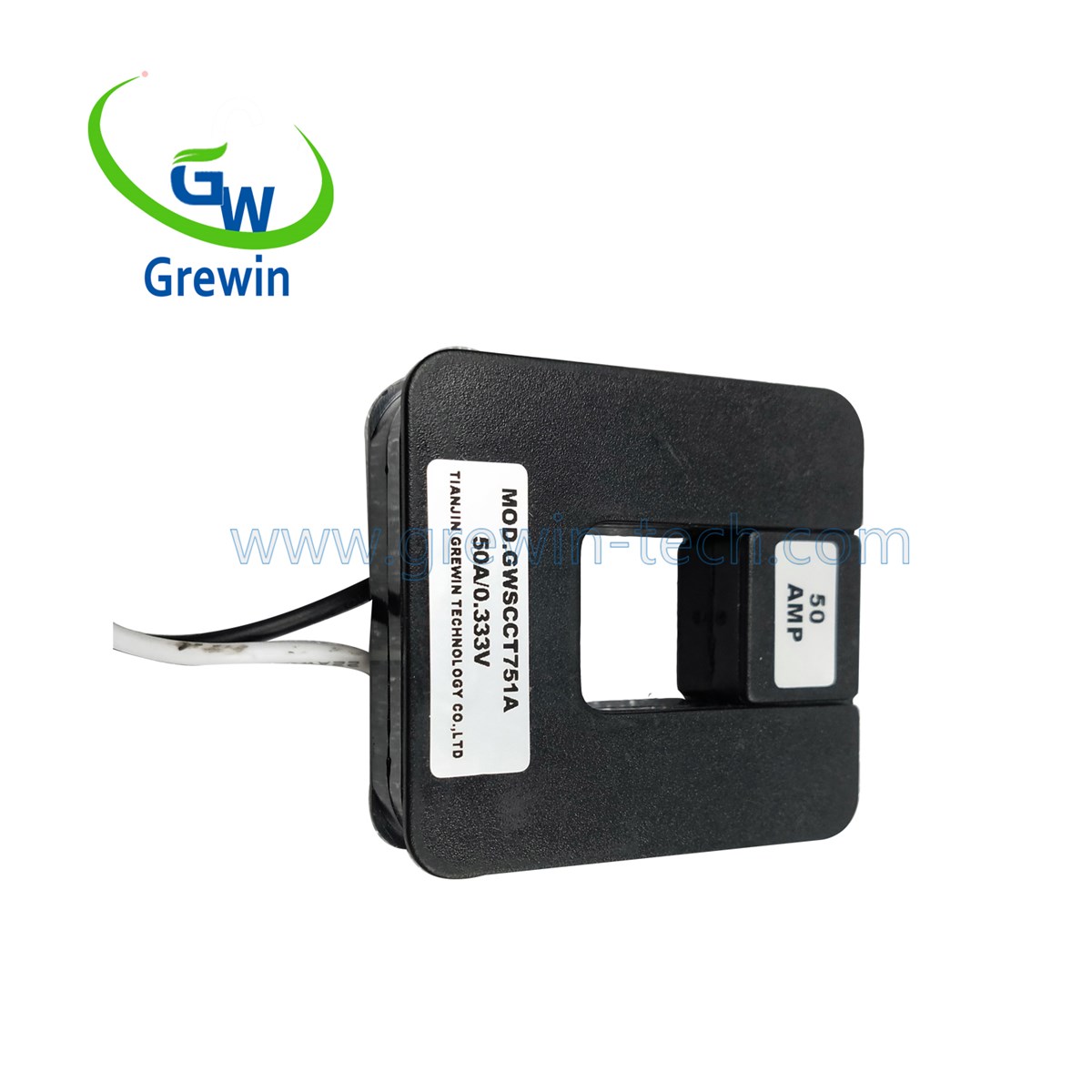

1.Product pictures

5A 100A 400A 1000A 5000A Rated Input Split Core Current Transformer2.Features:
Split core design, safe, easy to install, portable
Wide inner window, allowing clamping of big cables or bus-bars
Wide range of sizes to accommodate all the existing installations
3.Application:
Current measurement, monitoring and protection for electrical wiring and equipment.
Current and power measurement for electric motors, lighting, air compressheating and ventilation system, air-condition equipment and automation - controlsystem.
Current, power and monitoring device.
Relay protection device.

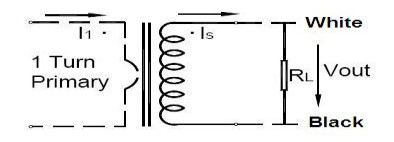

4.Circuit connection diagram
5A 100A 400A 1000A 5000A Rated Input Split Core Current Transformer

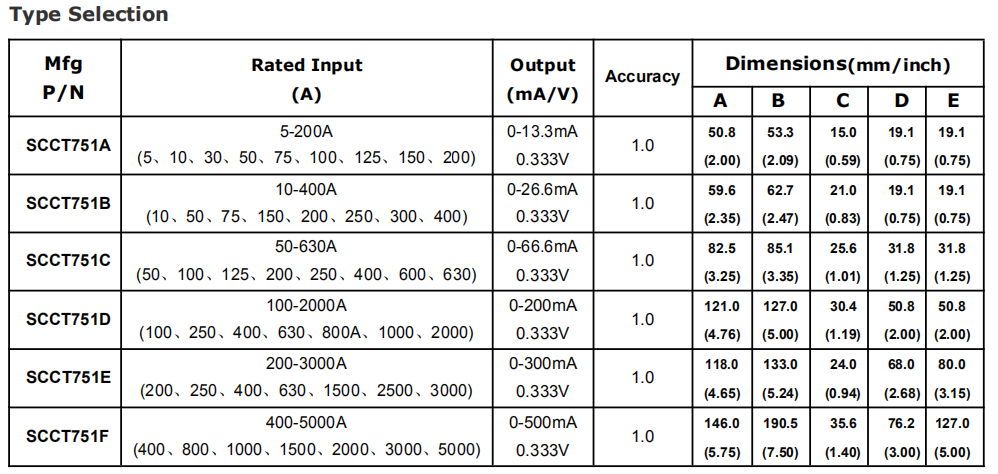

5.Details of the data
5A 100A 400A 1000A 5000A Rated Input Split Core Current TransformerCompany introduction
1.Certification
We have passed ISO9001:2015,CE,SGS approval and IEC report
05 Accuracy 200mA Output Hall Current Transformer CT Sensor for Monitor05 Accuracy 200mA Output Hall Current Transformer CT Sensor for Monitor
2.Company profile
     Tianjin Grewin is concentrating on transformers for 20 Years and complianted by ISO9001:2015,CB,IEC CB,CE etc.We're always pay great attention to its business philosophy "Quality and Honesty First".Grewin is specialized in the design and manufacture of wound components such as transformer,current sensors, chokes etc.Windely used in communications,electronics,meters,industrial control,medical equipments and other fields.We are also a provider of power meters and instruments locators. 85% of its products exported to America, Europe, and Asia etc.We sincerely invite you to join us to create a bright future.

3.Terms of Shipment:
(1)Products are shipped via UPS / DHL / EMS / HK EMS /     FedEx / TNT and so on expresses (door to door).
(2)We Provide Drop shipping Service.
(3)20 days around delivery upon receiving payment if the qty    is lower than 1000PCS and it is not customized products.
(4)Shipping via EMS. UPS. FedEx and TNT express usually     takes 3~7days dependent on the destination country.

4.Payment terms:
(1)T/T 100% or 50% deposit by T/T in advance, balance amount to be paid 7 days before
Delivery.
(2) by irrevocable L/C at sight, to be issued immediately against confirmed order.
(3)Payment by T/T, if order amount is less than USD 20,000.

5.Warranty:
(1)We provide 1 year warranty.
(2)If the product is defective, please notify us within 3 days of delivery.
(3)All products must be returned on their original condition, in order to qualify for a refund or exchange of goods

6.Production
the following picture showed you about all finished transformer production line and package with export standard carton and strong pallets:05 Accuracy 200mA Output Hall Current Transformer CT Sensor for Monitor
