| Type: | LED Modules |
|---|---|
| Certification: | CE,RoHS |
| Brand Name: | ADLED |
| Viewing Angle(): | 180 |
| Power: | 2.5W |
| Emitting Color: | White |
| Place of Origin: | China (Mainland) |
| Storage Temperature(): | |
| Operating Temperature(): | |
| Color Temperature: | 2800-3200/6000-7000K |
| Color Rendering Index(Ra): | 80 |
| Power Dissipation: | 0.2 |
| Optical Attenuation(%): | 1 |
| Luminous Flux(lm): | 250lm |
| Luminous Intensity: | 100lm/w |
| Chip Material: | AlGaInP |
| Model Number: | AD-8821-2835-3 |
| Module center: | 225mm |
| Warranty: | 5 years |
| IP Rating: | 67 |
Quick Details
Specifications

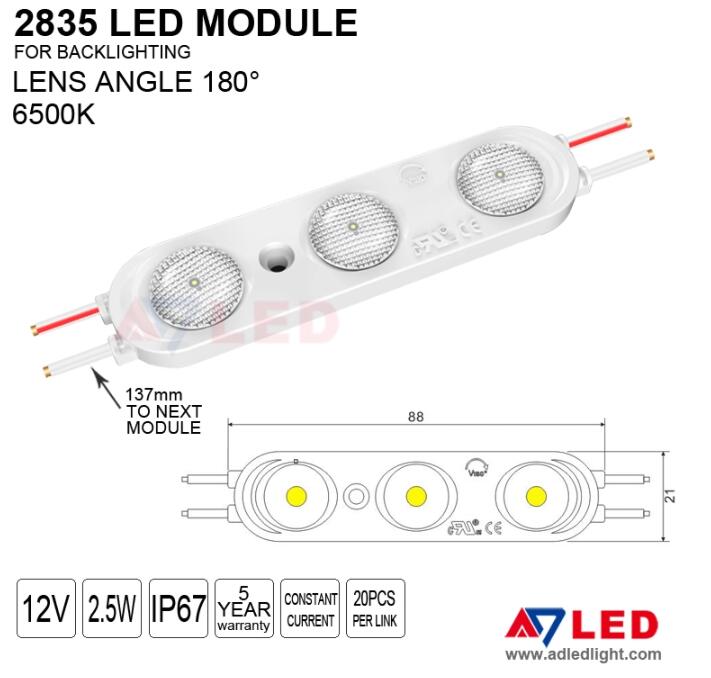

CE&rohs shenzhen manufacturer 3 lamp white SMD 2835 waterproof injection light LED module with lens
Parameters:
Name |
Super bright SMD2835 LED module |
Model |
AD8821-2835-3 |
LED type |
SMD 2835 LED |
Work voltage |
DC12V |
Power |
2.5W |
LED QTY |
3leds |
Beam angle |
180 |
IP grade |
IP67 |
Lumen |
250lm |
Size |
88*21*8.1 mm |
Warranty |
5 years |
HS code |
9405409000 |
Other service |
OEM & ODM,One to One communication,Free Samples |
Application |
Recommended depth 8-25cm channel letters and light boxes |
Features:
1. Top-tier LED chip
2. DC12V low-voltage power supply,security and energy efficiency
3. Micro prism lens producing a wide, even light spread,Max:P:D=3.5:1
4. Versatile mounting options
5. Constant Current Technology
6. 180 degree lens
Applications:
12v 2835 SMD LED module light suitable for channel letter lighting
12v 2835 SMD LED module light suitable for lightbox lighting source
12v 2835 SMD LED module light suitable for advertising signs
12v 2835 SMD LED module light suitable for LED signage
12v 2835 SMD LED module light suitable for exterior and interior banner lighting
12v 2835 SMD LED module light suitable for commercial signs
12v 2835 SMD LED module light suitable for decorative lights
12v 2835 SMD LED module light suitable for indoor and outdoor illuminated signs
