| Type: | Multi-Function Packaging Machine |
|---|---|
| Brand Name: | Lin-Pack |
| Packaging Material: | Plastic |
| Packaging Type: | Bags,Pouch,Stand-up Pouch |
| Application: | Beverage,Chemical,Food,Medical |
| Function: | Filling,Labeling,Sealing |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | ISO9001,CE |
| Dimension(L*W*H): | 2460*1830*1460mm |
| Model Number: | MR-200R MR-200RH MR-300R |
| Place of Origin: | China (Mainland) |
| Voltage: | 220V/380V 3PH 50HZ |
| Driven Type: | Electric |
| Automatic Grade: | Automatic |
| Condition: | New |
Quick Details
Specifications

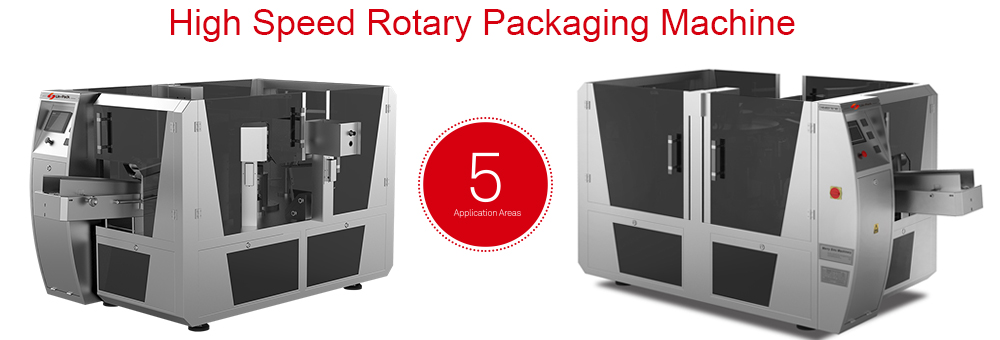

Multi function Automatic rotary soft drink beverage oil filling packing machine
1.Brief Introduction:
2.Techincal parameters: Model NO.:
MR8-200RH Pouch type
Stand-up pouches, zipper bags,four/three side sealed bags Pouch Size
Width(mm): 80-210, Length(mm):100-300 Filling Volume
10-1500g(Depend on type of products) Capacity(PPM)
30-60 bags/ min, 25-45 bags/min for zipper bags Package Accuracy
Error1G Total power
2.5KW(220V/380V,3PH,50HZ) Demension
1710*1505*1640m(L*W*H) Weight
1480KGS Compress air requirement
0.8m/min supply by user Features and Characteristics
1. Incessant rotary vacuum system 2. Quick changeover 3. Comply with the sanitation requirements of food processing machines 4. Materials contact parts adopt 304 stainless steels 5. Easy to operate 6. Sealing temperature detection 7. the machine adopts PLC and POD(touch screen)electrical control system Application:
Block: chocolate, candies, cereal, biscuits, cakes, puffed food, etc. Granule: nuts, capsules, seeds, feeds, pesticides, fertilizers, etc. Powder: seasoning, milk powder, washing powder, fine sugar,etc. Liquid/sauce: detergent, juice, beverage, ketchup, jam Necessary infos offered in inquiry
Pouch type Pouch size Filling material
3.Performance features:

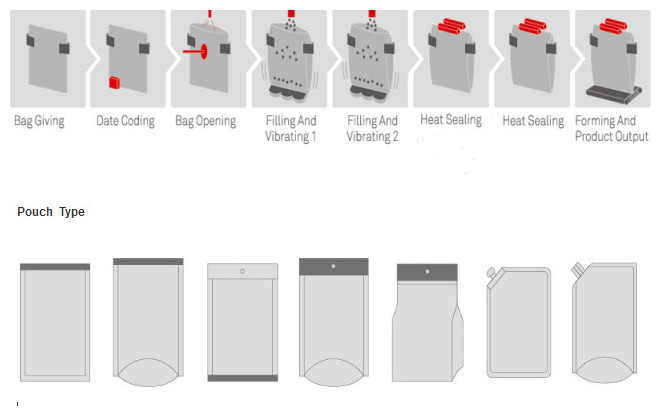

Process:
