| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 2 years |
| Weight: | 250kg |
| Brand Name: | TIGERTEC |
| Condition: | New |
| Certification: | CE FDA |
| Dimensions: | 766*1266*1141mm |
| Application: | advertising industry |
| Feeding Height: | 200mm |
| Rated Power: | 380v, 3ph, 50/60HZ |
| Model Number: | TR6090 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

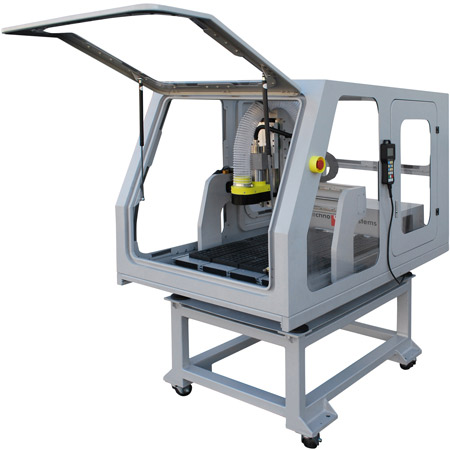

TR6090A tabletop CNC Router Machine
Options:
Steel base with casters.
Full safety enclosure
Servo driving system
Vacuum pump from China or Germany for your choice.
1.5HP dust collector
Coolant system
4th axis rotary table with tailstock.
Standard features:
1. 600*900mm process area, with 200mm Z-axis stroke
2. Easy to use hand-held controller
3. with a 1.5kw(2HP) HSD high frequency collet spindle
4. Precision ball screws and Linear rail and bearing on all 3 axes
5. Bushless micro stepper motors and controls
6. Double-layer multi-holes vacuum T-slot table for easy part ficturing.
7. All of the electrical components are housed, wired and tagged from Siemens, Schneider, Igus and Phoenix.
Specifications:
Model No. |
Process Area |
Accuracy |
Weight |
Foot Print(mm) | ||||
TR6090A |
X |
Y |
Z |
0.05mm |
250kgs |
W |
L |
H |
600mm |
900mm |
200mm |
766 |
1266 |
1141 | |||
|
|
|
|
|
||||
