| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 2 year |
| Certification: | CE FDA |
| Brand Name: | TIGERTEC |
| Condition: | New |
| Weight: | 3500KGS |
| Dimension(L*W*H): | 4025*2768*2338mm |
| Power(W): | Air-cooled 9kw |
| Voltage: | AC220V/380V, 3PH, 50/60HZ |
| Model Number: | TZ12-9A /TZ12-9B |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
Quick Details
Specifications

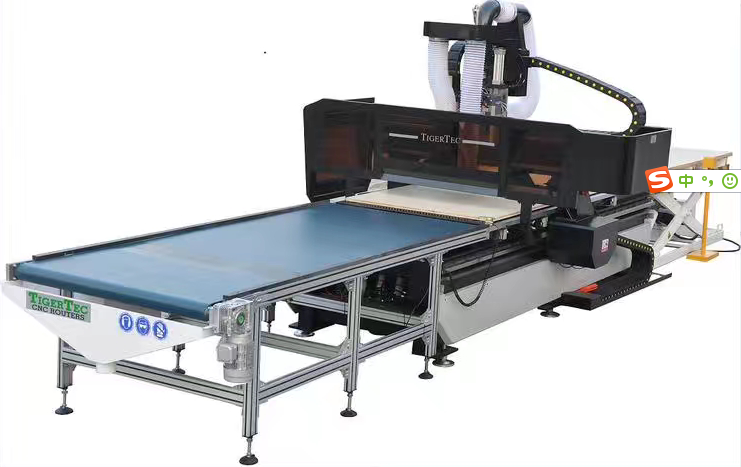

CNC Nesting Process Center
Applications:
Wooden door, kitchen cabinet, wine cabinet, panel furniture, closet, customized furniture, table, chair, voice box, cupboard door, stereo wave board, etc. Suitable for standard or bespoke production.
Technical Features:
Working size |
1300*2500*200/1800*3800*200mm |
Main Spindle |
9kw Air-cooled, 24000 rpm |
Boring Head |
5+4 Vertical drilling |
Tool Magazine |
12 pcs of carrousel on X-axis |
Operating System |
Syntec Windows Control |
Vacuum table |
Double-layer multi-holes |
Driving system |
Yakawa servo with reducer |
Max Speed X/Y/Z |
80/70/20m/min |
