| Safety Standards: | IEC |
|---|---|
| Breaking Capacity: | High |
| Usage: | Low Voltage |
| Brand Name: | Solarson |
| Material: | fuse |
| Model Number: | sspv-30 |
| Place of Origin: | China (Mainland) |
| RATED VOLTAGE: | 1500VDC |
| RATED CURRENT: | 1A,2A,3A,3.5A,4A,5A,6A,8A,10A,12A,15A,16A,20A,25A,32A |
Quick Details
Specifications

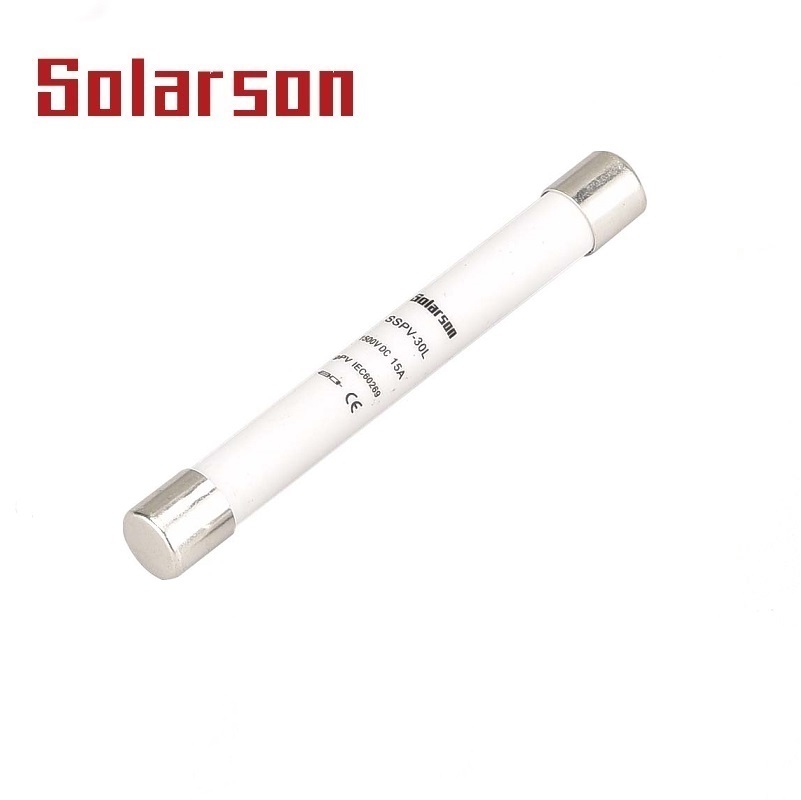

10X85mm 1500VDC High quality extreme fuse heating element thermal glass and ceramic
Product Description
Yueqing Aidun Electrical produce " SOLARSON" brand SSPV series of 10X85 mm 1500V DC Photovoltaic Fuse +holder is designed to provide over-current protection for solar arrays. the use of a fuse can protect your solar array from unnecessary damage from an over-current event.
Rated Current:1A,2A,3A,3.5A,4A,5A,6A,8A,10A,12A,15A,16A,20A,25A,32A
Rated Voltage: 1500 V DC
Rated breaking capacity:DC 33kA
Operating class gPV and UL PV fuse link for Solar protection
10x85mm 1500VDC Solar PV Fuse gPV
Yueqing Aidun Electrical produce " SOLARSON" brand 10x85mm,1500Vdc 10x85mm 1500VDC Solar PV Fuse and holder are for protecting and isolating photovoltaic strings. the fuses are specifically designed for use in PV systems with extreme ambient temperature, high cycling and low fault current conditions (reverse current, multi-array fault) string arrays. Four styles available for application flexibility.
Product description
According to IEC/EN60269-6 and UL248
Rated current: 1,2,3,3.5,4,5,6,8,10,12,15,16,20,25,30A
Rated voltage: 1500V DC
Rated breaking capacity:DC 33kA
Operating class gPV and UL PV fuse link for Solar protection
Technical data
Item |
Product type |
Size (mm) |
Rated Voltage (V) |
Rated Current(A) |
Breaking Capacity |
Drawing No. |
010 |
SSPV-30L |
10X85 |
1500VDC |
1,2,3,3.5,4,5,6,8,10,12,15, 16,20,25,30 |
33kA |
Drawing 10 |
011 |
SSPV-30T |
10X85 |
1500VDC |
1,2,3,3.5,4,5,6,8,10,12,15, 16,20,25,30 |
33kA |
Drawing 11 |
Drawing:
Company imformation
Package and shipping
Packaging Details
NH00C: QTY: 180PCS; GW: 21KGS NW: 21KGS; MEAS: 35x25x22.5cm
NH00: QTY: 100PCS; GW: 21KGS NW: 20KGS; MEAS: 43x17x27cm
NH0: QTY: 72PCS; GW: 18KGS NW: 17KGS; MEAS: 37x27x20cm
NH1: QTY: 48PCS; GW: 21KGS NW: 20KGS; MEAS: 43x28.5x22cm
NH2: QTY: 36PCS; GW: 24KGS NW: 23KGS; MEAS: 38x31.5x24cm
NH3: QTY: 24PCS; GW: 22KGS NW: 21KGS; MEAS: 45x32x20.58cm
