| Safety Standards: | IEC |
|---|---|
| Breaking Capacity: | High |
| Usage: | Low Voltage |
| Brand Name: | SOLARSON |
| Material: | FUSE |
| Model Number: | D01 D02 D03 |
| Place of Origin: | China (Mainland) |
| RATED VOLTAGE: | 400VAC 500VAC 250VDC 400VDC |
| RATED CURRENT: | 0.5,1A,2A,4A,5A,6A,8A,10A,12A,15A,16A,20A,25A |
Quick Details
Specifications

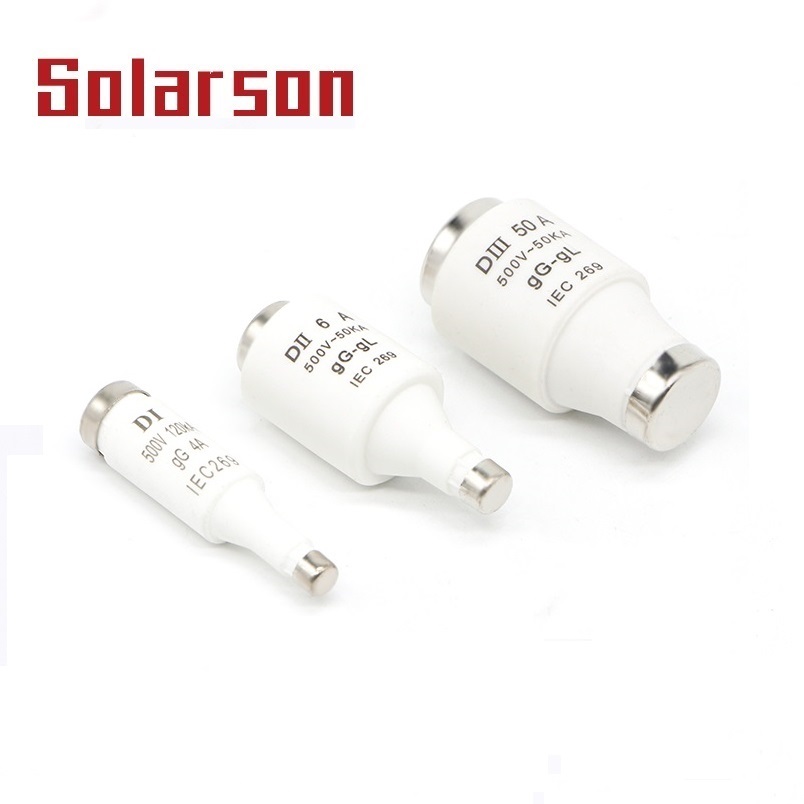

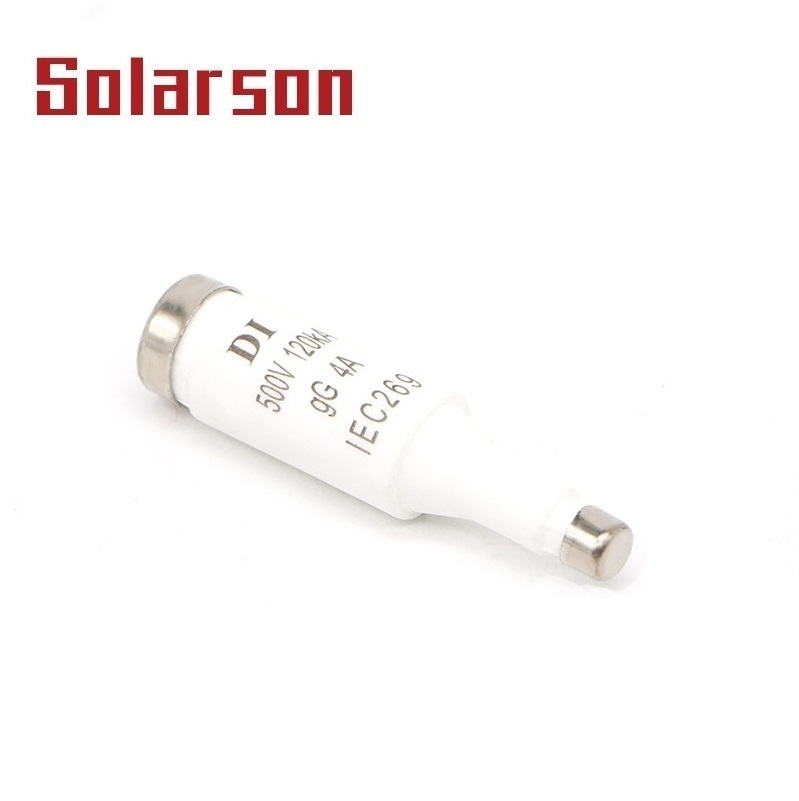

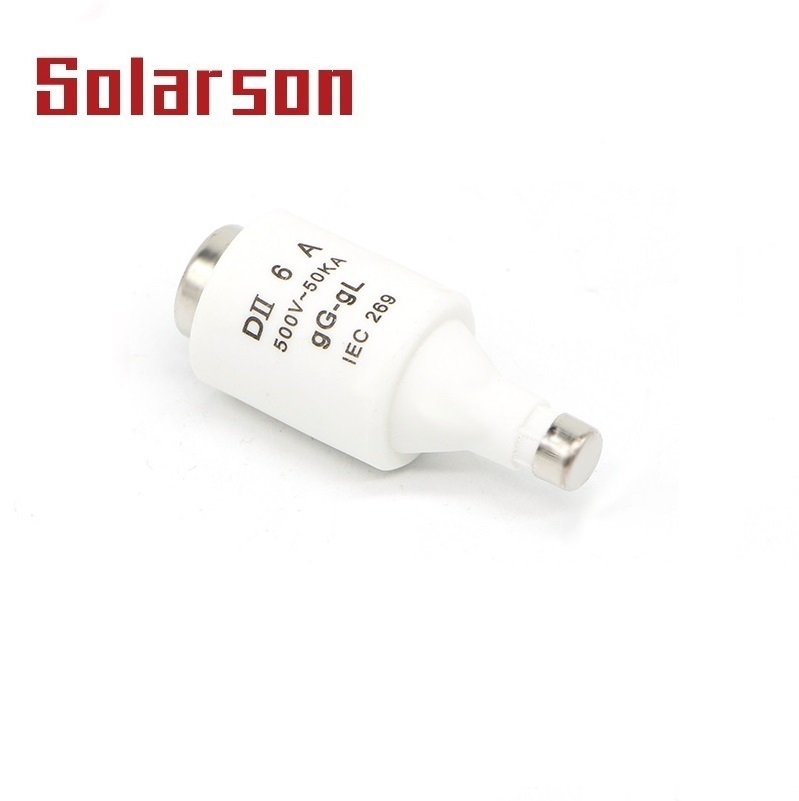

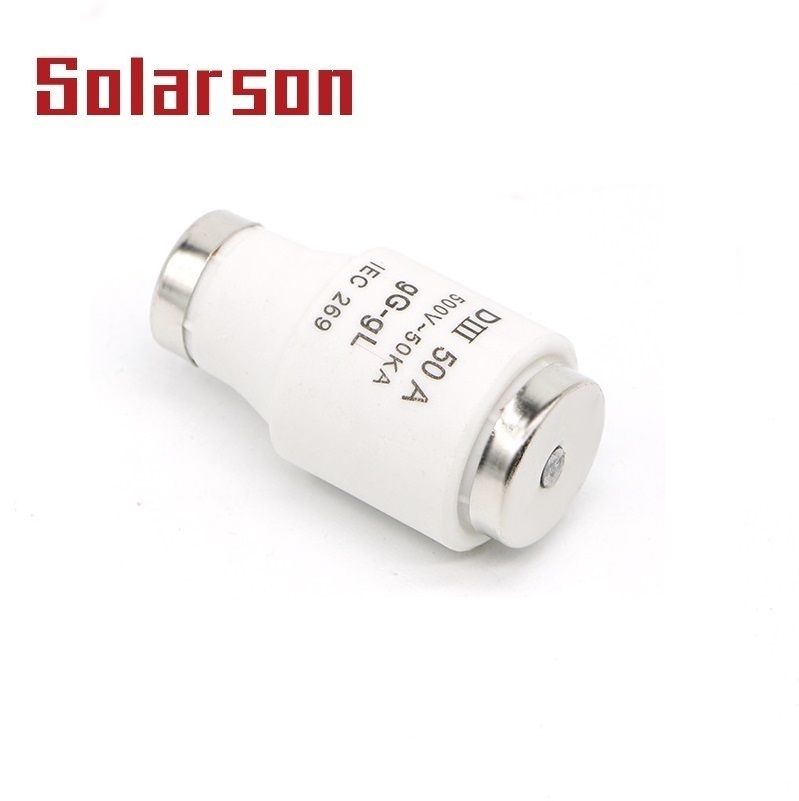

China Aidun Electrical produce " SOLARSON" brand D and D0 fuse links are specifically designed for the protection of general industrial applications such as power distribution and cable protection. both types D and D0 are available in three operating characteristics: Time-delay, Fast-acting and Ultra-rapid versions that fit into screw cap fuse link carriers for mounting in 1- or 3-pole DIN-Rail or screw fixing.
Technical data
Voltage:400VAC 500VAC 690VAC 500VDC
Ampere Rating of fuses: 0.5,1A,2A,4A,5A,6A,8A,10A,12A,15A,16A,20A,25A
Breaking Capacity:50kA
Operating class:gL/gG,aR,time delay,aM
Standard:IEC 60269,EN60269,VDE,DIN
