| Brand Name: | Oceantech |
|---|---|
| Material: | Aluminum alloy |
| Color: | Silver |
| Warranty: | 1 years |
| Type: | Single door,Surface mounted |
| Model Number: | GK280 |
| Place of Origin: | China (Mainland) |
| Name: | electronic magnetic lock |
| Size: | 270*60*65 mm |
| Holding Force: | 280kg(600Lbs) |
| Input Voltage: | DC12V/500mA |
| Current: | 12V/500mA or 24V/250mA |
| Suitable: | Wooden door , Glass door ,Metal door , Fireproof door |
| Door status signal output: | NO,NC,COM |
| Cover Finish: | Galvanized |
Quick Details
Specifications

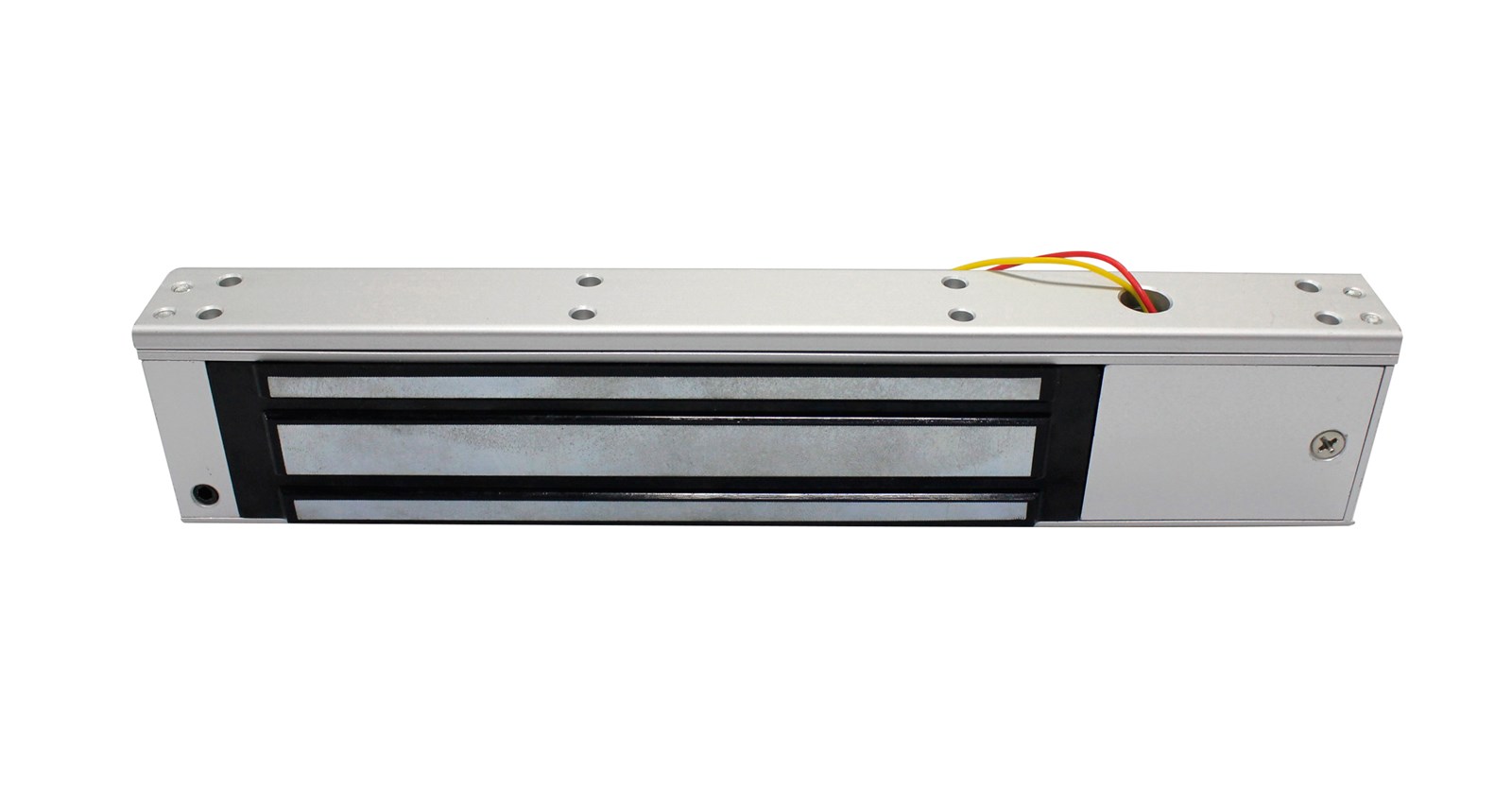

280KG Electronic Magnetic Lock,Surface Mounted EM Lock with LED,for Access Control System Optional Signal Feedback
Lock Size: 270*60*65 mm
Armature size: 180*38*11mm
Voltage: DC12V/500mA
Holding Force: 280 Kgs
with LED
3. the Standard Voltage is 12VDC when Finished.
4. MOV Provides Reverse Current Protection.
5. Anti-Residual Magnetism Designed.
6. High Strength Material,Anodized Aluminum Housing.
7. Design without Mechanical Failure.
8. Increase the holding Force,Dual Insulative Housing.
Lock Size: 270*60*65 mm
Armature size: 180*38*11mm
Voltage: DC12V/500mA
Holding Force: 280 Kgs
with LED
Features:
1. Collinear Load Test 280kg,600pounds.
2. Dual Voltage 12 or 24 VDC(optional).3. the Standard Voltage is 12VDC when Finished.
4. MOV Provides Reverse Current Protection.
5. Anti-Residual Magnetism Designed.
6. High Strength Material,Anodized Aluminum Housing.
7. Design without Mechanical Failure.
8. Increase the holding Force,Dual Insulative Housing.
