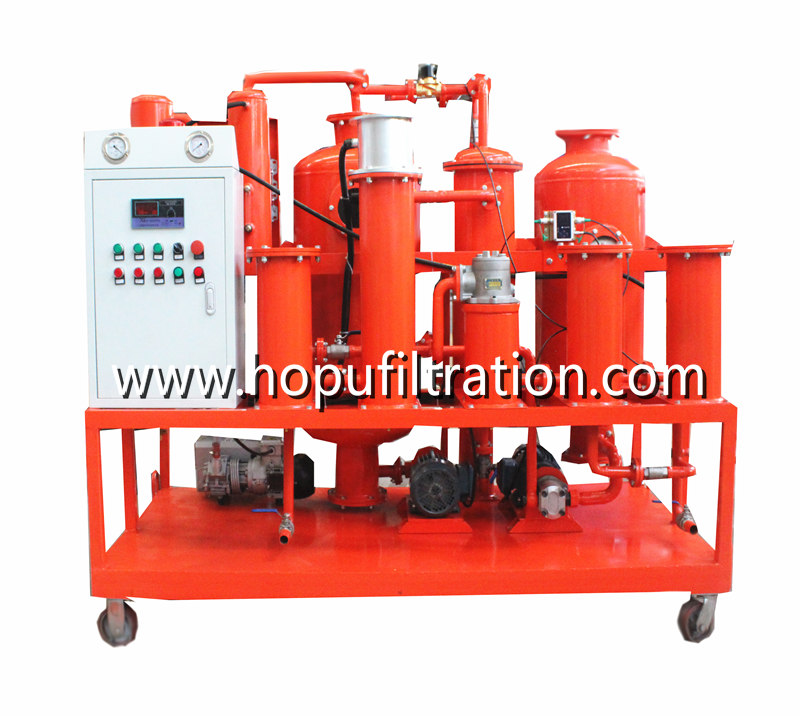

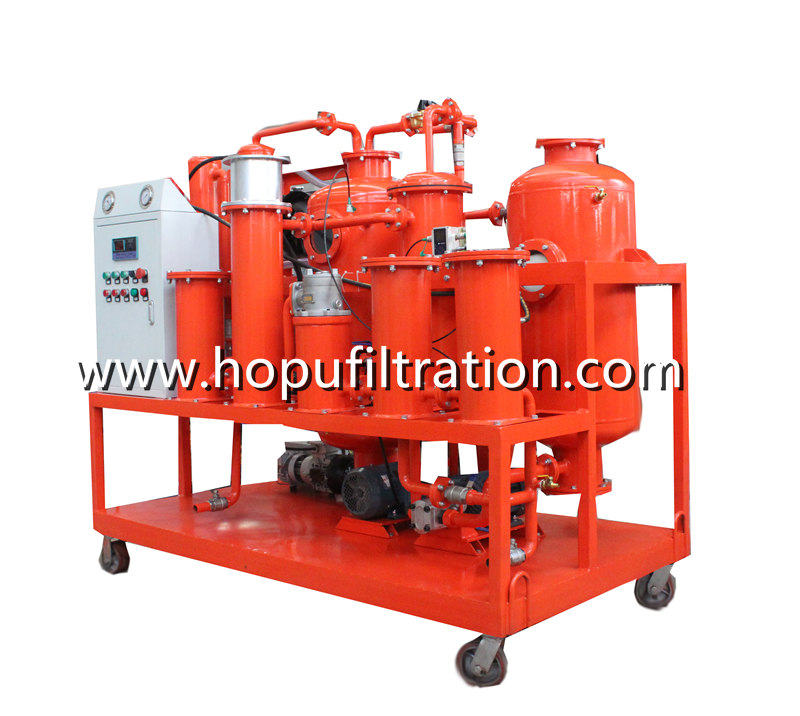

Waste Hydraulic Oil Regeneration

Series TYA Vavuum Oil Purifier Machine can fast degas, dewater, and remove the impurity and the volatile matter (for example ethyl alcohol, gasoline, ammonia and so on). Enhances the oil quality, restores the lubricating oil viscosity, flash point and improves the oil capability. Guaranteed the hydraulic system, dynamic system and lubricating system running normally. the machine is suit for many lines, such as transportation,mine, metallurgy, electric power, manufactures and so on.. Regenerate the used diesel oil, hydraulic oil, lubricating oil, coolant oil, machine oil and so o

Product Description
with triple stage filters oil water separator, mainly used for turbine turbine oil processing, can quickly and efficiently remove oil in the water, gas, impurities. so that the oil quality indicators meet the new oil standards to ensure that the unit regulation, lubrication system to work properly, to extend the maintenance cycle unit. Using the advanced international principles of strengthening the hydrophilic and hydrophobic, dehydration, precision filter in one, online demulsification, dehydration, acid removal, impurity removal, the turbidity of the turbidity emulsified turbine oil becomes crystal clear. It is suitable for the deep dewatering of transparent oil, hydraulic oil, refrigerating machine oil and other lubricants that need to remove a lot of water and finely filter the impurities.

Features:

1. with the strong ability to filter the impurity, which can filter the particles completely.

2. It has the back flush system, which can clear impurities automatically.

3. Advanced dielectric condensation device

4. this machine installs the new pressure protector, which can control the temperature automatically; also it can drain water on line by the waterseparator device. So it is easy to control this machine.

5. We adopt the high quality filter materials, which has a good function in anti-corrosive, thermostable, mechanical strength. Especially, the precision of eliminates impurity is high and the service life is long. Also, it has a large volume for storing the impurities.

6. the unique degas and dewater system: Using the Stereo-Evaporation technical, which can separate the water and gas from the oil quickly by the Multi-level water-oil separation technology.

Item		Unit	TYA-10	TYA-20	TYA-30	TYA-50	TYA-100	TYA-150	TYA-200	TYA-300
Flow Rate		L/min	10	20	30	50	100	150	200	300
Vacuum Degree		MPa	-0.06 -0.095
Working Pressure		MPa	0.4
Temperature			0 100
Power Supply			3phrase,50Hz, 380V(or as needed)
Working Noise		DB(A)	75	75	75	78	78	78	80	82
Heating power		kW	36	40	45	72	80	90	120	135
Total power		KW	38	42	47	75	87	101	135	147
Inlet/outlet caliber		mm	25	25	25	32	42	50	50	60
Weight		Kg	450	550	600	750	850	1000	1200	1500
Dimension	Length	mm	1500	1500	1500	1600	1750	1900	1900	2100
	Width	mm	1000	1050	1050	1150	1250	1600	1700	1700
	Height	mm	1200	1600	1600	1700	1800	1950	2000	2100
Parameter after Purification
Demulsification value		min	New oil 15min, running oil 30min
Water Content		PPM	80
Gas Content		%	o.1
Cleanness		NAS	6 grade
