Application

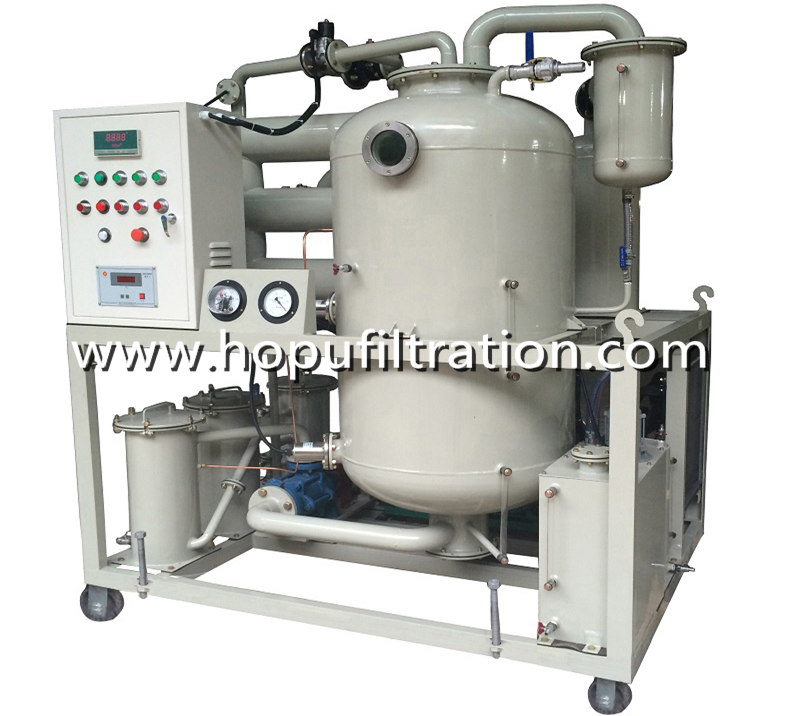

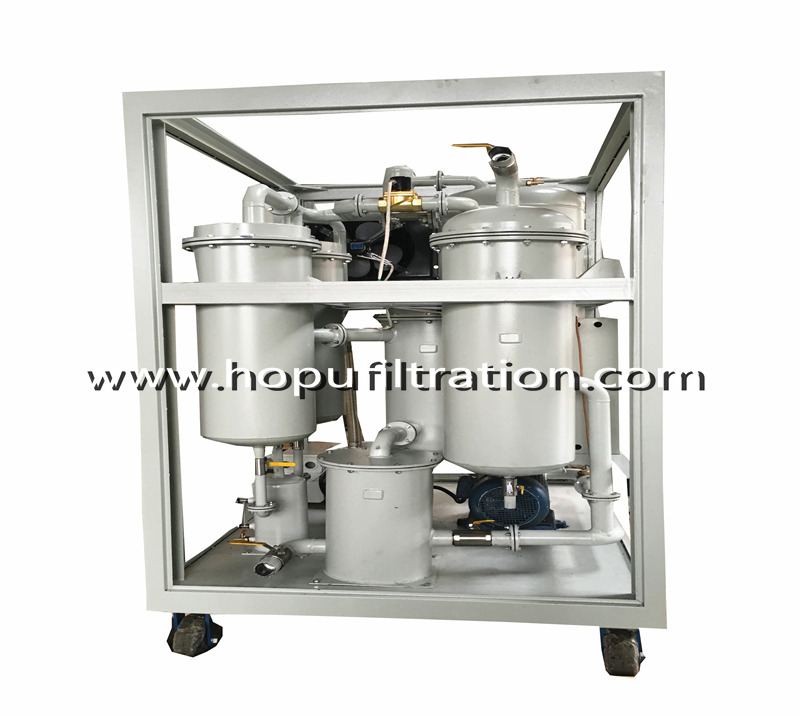

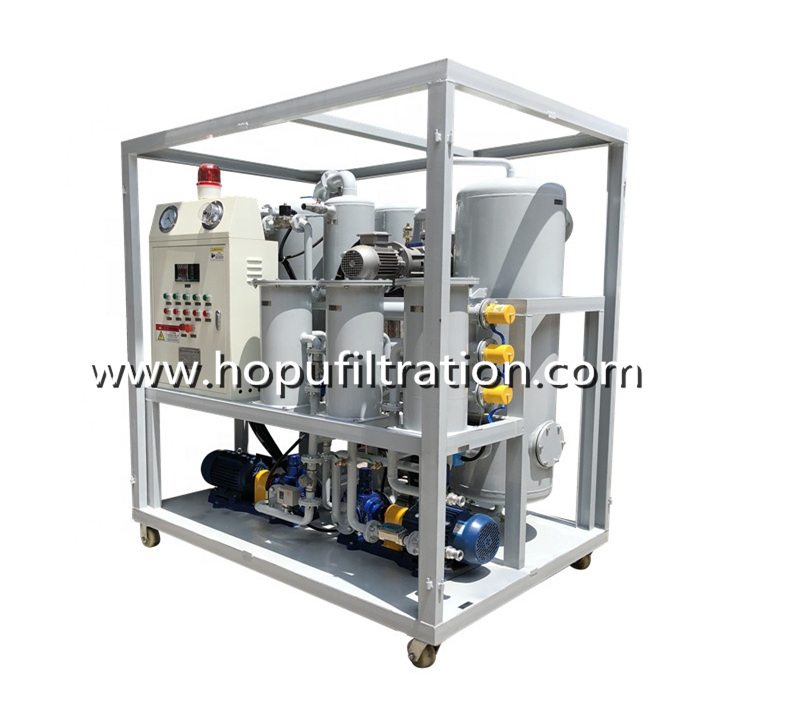

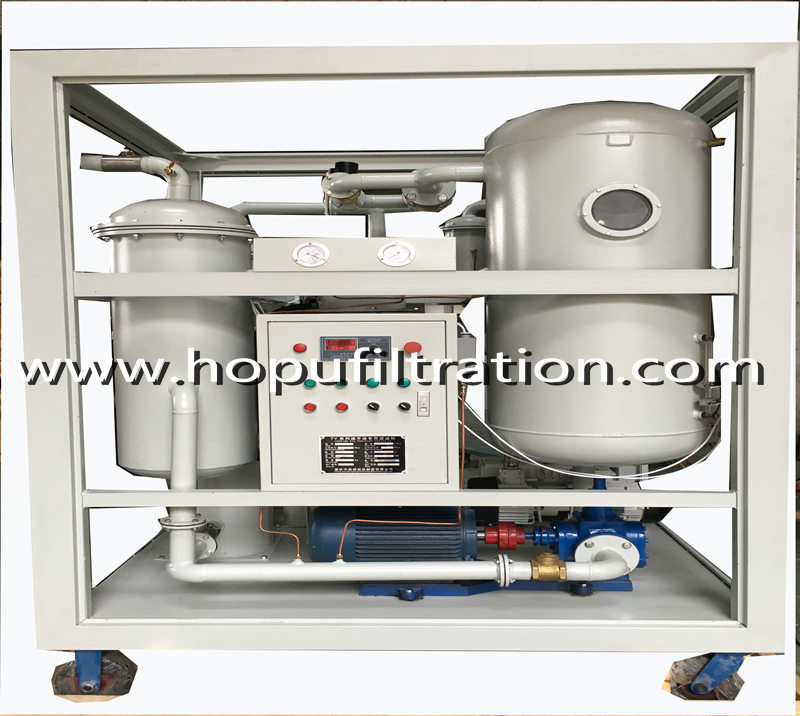

Series TY Gas Turbine Oil Purifier is used for treating the unqualified turbine oil, especially the seriously emulsified turbine oil.
this machine can clean the oil down to NAS 4,removing contamination and emulsified water down to less than 50 ppm. the treated oil can be reused as new.

Vacuum Turbine Oil Purifier for lube oil impurities removal deals with unqualified emulsified industrial oil such as mechanical oil, hydraulic oil, compressor oil and refrigerating oil, which can quickly and effectively remove the water, gas, impurities and volatile oil (such as alcohol, gasoline, ammonia Gas, etc.), restore the oil viscosity, flash point and performance. after treatment, the emulsified oil has low emulsification value, very little water content and high impurity precision, and can be reused repeatedly in domestic and overseas high-precision hydraulic lubrication equipment.

Features:
1.Effectively remove the iron, flake, dust, impurities, water and organic substance from the inferior oil. Moreover, it can eliminate organic and inorganic acid to recover the performance of hydraulic oil.
2.Strong demulsifying capability, which could easy to separate the massive moisture contents, also easy to get rid of the little tiny water from oil
3.Adopt high precision and stainless steel FH rectangle filtration system that import from Japan, the precision of filter can reach up to 1 micron.
4.Utilize HOPU own invented technology of H, P, M macromolecule material, which can reduce 1 or 2 color code of oil, the machine especially fit to high viscosity lubricant oil, freezing machine oil, hydraulic oil and gear oil etc.

Working principe& flow chart:
1, Working principle
When the oil purification starts, firstly contaminated oil enter into heater, secondly flowed into pre-filter under the difference pressure, in which the large impurities are removed. Thirdly oil goes into intermediate filter. Fourthly oil flow into water separator, the water separator adopts a special skill which changes the change the impaction of oil and water
to speed up trace water and coagulate big water which is separated from oil and stored in water content. after that, oil passes through the fine filter and fine particles of matters is
Removed during the process. Finally oil flows into vacuum pump which use stereo-evaporation removing residual trace of water and steam is condensed in the condenser or expelled out by the vacuum system. the oil was transported out by oil pump. the purification process has finished.

Technology Parameters

Item	Unit	TY-10	TY-20	TY-30	TY-50	TY-100	TY-150	TY-200	TY-300
Flow rate	L/min	10	20	30	50	100	150	200	300
Vacuum degree	MPa	-0.060.095
Working pressure	MPa	0.4
Temperature degree		20 ~80
Power supply		380V/50HZ/3Ph 5 wire(as customer's requirement)
Working noise	DB(A)	65~80
Working time	H	4000
Continuous working time	H	150
Electric heating degree	kW	12	15	18	24	45	60	72	84
Total electric power	kW	14	17	20	27	48	66	81	97
Outlet(inlet)caliber	mm	25	25	25	32	42	50	50	60
Weight	kg	400	450	500	600	800	1000	1100	1550
Length	mm	1500	1550	1600	1650	1700	1750	1900	2000
Width	mm	800	850	900	950	1000	1200	1300	1350
Height	mm	1600	1650	1700	1750	1800	1800	2000	2100
Index after filtering by TY
Moisture content	PPM	50
Gas content	%	0.1
Demulsification value	min	15
Degree of cleanliness	NAS 1638	4
Impurity size	m	1(Customerizable)
