| Gender: | Female |
|---|---|
| Application: | Automotive |
| Type: | Adapter |
| Brand Name: | SOLARSON |
| Color: | black |
| Model Number: | MC4 |
| Place of Origin: | China (Mainland) |
| Safety Standards: | IEC |
| Breaking Capacity: | High |
| Usage: | Low Voltage |
| Material: | PPO |
| Rated voltage:: | 1000V/1500V DC |
Quick Details
Specifications

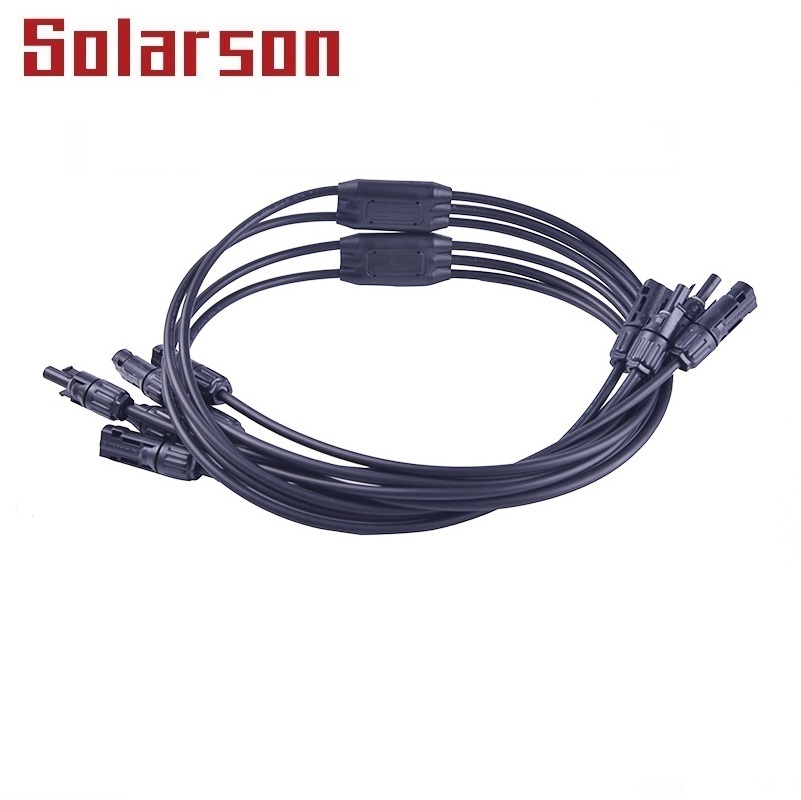

China Aidun Electrical produce " SOLARSON" brand 1500VDC solar MC4 Y branch solar connector are used for solar PV system.
Simple on-site processing.
Acomodates PV cable with different insulation diameters.
Mating safety provided bykeyed housings.
Multiple plugging and unplugging cycles.
High current carrying capacity.
TUV and UL approved.
Technical Data
Rated Current |
30A(2.5-6mm2), |
Rated Voltage |
1000VDC/1500VDC |
Test Voltage |
6000V(50Hz,1min) |
Overvoltage Type/Pollution Degree |
CAT III /2 |
Contact Resistance of Plug Connector |
Im |
Contact Material |
Copper, Tin-plated |
Insulation Material |
PPO |
Degree of Protection |
IP2X/IP67 |
Flame Class |
UL94-VO |
Safety Class |
II |
Suitable Cable |
OD 4.5-8.5(2.5-6.0mm2) |
Insertion Force/Withdrawal Force |
50N/ 50N |
Connecting System |
Crimp connection |
Temperature Range |
-40 C ~ +125C |
