| Safety Standards: | IEC |
|---|---|
| Breaking Capacity: | High |
| Usage: | Low Voltage |
| Brand Name: | Solarson |
| Material: | copper |
| Model Number: | SSPV-63 |
| Place of Origin: | China (Mainland) |
| Breaking Capacity:: | high 33kA |
| Function class:: | gG/gL |
Quick Details
Specifications

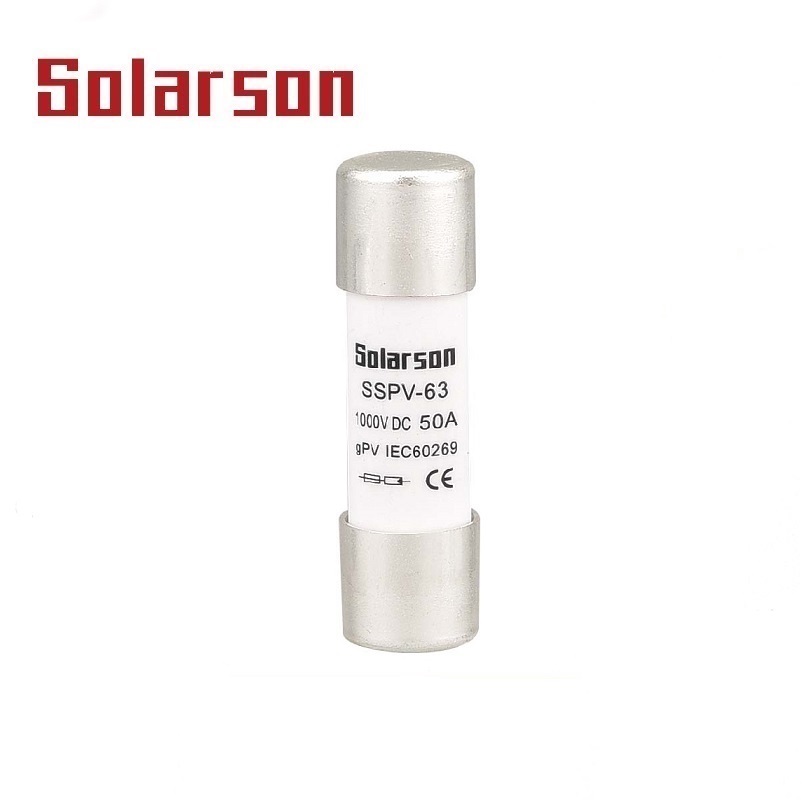

Yueqing Aidun Electrical produce " SOLARSON" brand 14x51mm 400V/500V/690V Solar PV Fuse and holder are for protecting and isolating photovoltaic strings. the fuses are specifically designed for use in PV systems with extreme ambient temperature, high cycling and low fault current conditions (reverse current, multi-array fault) string arrays. Four styles available for application flexibility.
According to IEC/EN60269-6 and UL248
Rated current: 2A 3A 4A 5A 6A 8A 10A 12A 15A 20A 25A 32A 35A 40A 50A 63A
Rated voltage: 400V/500V/690V
Rated breaking capacity: 120kA
Operating class gPV and UL PV fuse link for Solar protection
