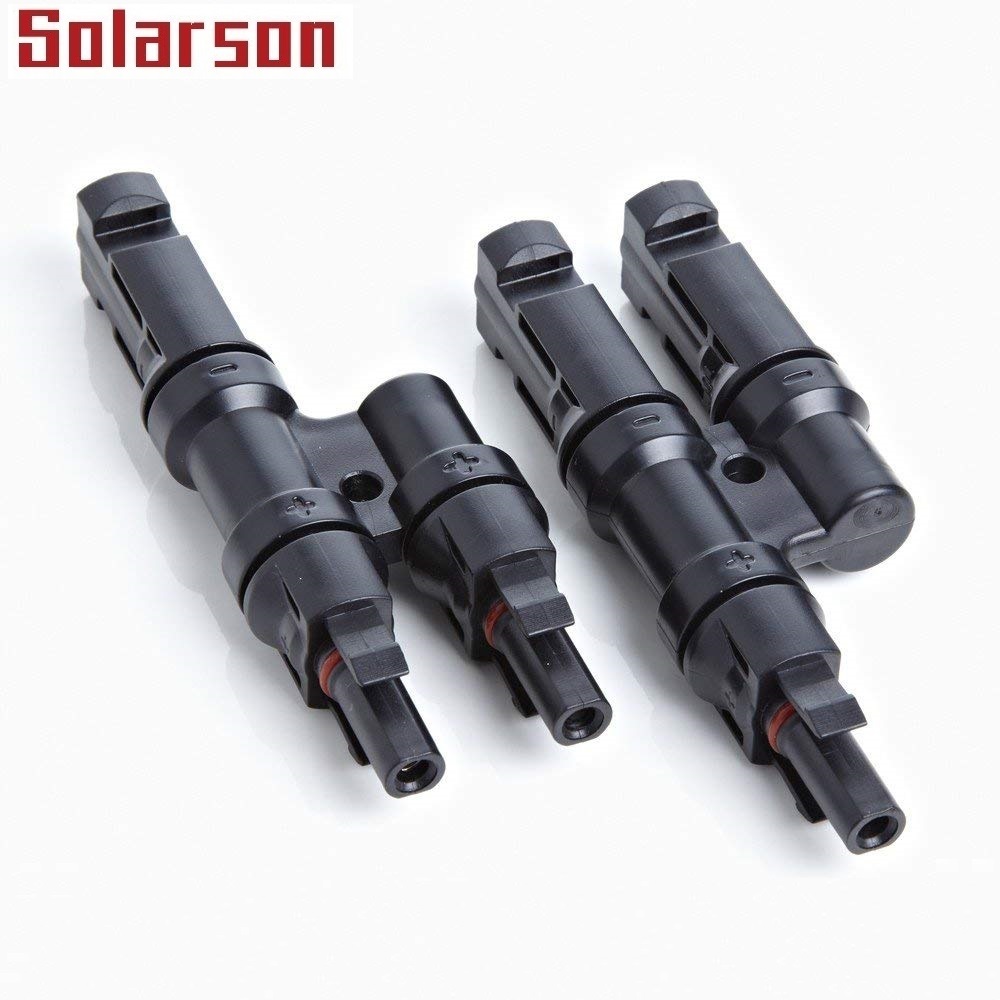

1000V DC Waterproof MC4 Multi Branch Connector for Solar System

Simple on-site processing.

Acomodates PV cable with different insulation diameters.

Mating safety provided bykeyed housings.

Multiple plugging and unplugging cycles.

High current carrying capacity.

TUV and UL approved.

Rated Current	30A(2.5-6mm2),60A(10-16mm2)
Rated Voltage	1000VDC/1500VDC
Test Voltage	6000V(50Hz,1min)
Overvoltage Type/Pollution Degree	CAT III /2
Contact Resistance of Plug Connector	Im
Contact Material	Copper, Tin-plated
Insulation Material	PPO
Degree of Protection	IP2X/IP67
Flame Class	UL94-VO
Safety Class	II
Suitable Cable	OD 4.5-8.5(2.5-6.0mm2)
Insertion Force/Withdrawal Force	50N/ 50N
Connecting System	Crimp connection
Temperature Range	-40 C ~ +125C
