MachineParameter

Armature O.D

20-55mm

Length of lamination

Max 60mm

Shaft length

32~250mm

Shaft O.D

 6~20mm

Slot number

8-24 slots

Commutator O.D

 16~50mm

Speed regulation range

 0~60Hz

Length of insulation paper

15-60mm adjustable

Thickness of insulation paper

 0.1 mm ~ 0.5 mm

Type of insulation material

 DMD, DM, Polyester film(thickness 0.125mm), etc.

Insulation paper shape

V or edge-folding V

Efficiency

 0.5sec - 0.8sec/per slot

 loadingclampfeeding paperunloading

Air source: air pressure

4~6kg/cm2

Machine power

1.0KW

Voltage

 AC220V10%, 50/60Hz

Weight

about 400Kg

Dimension

 L910 mm x W880 mm x H1300mm

WIND AUTOMATION

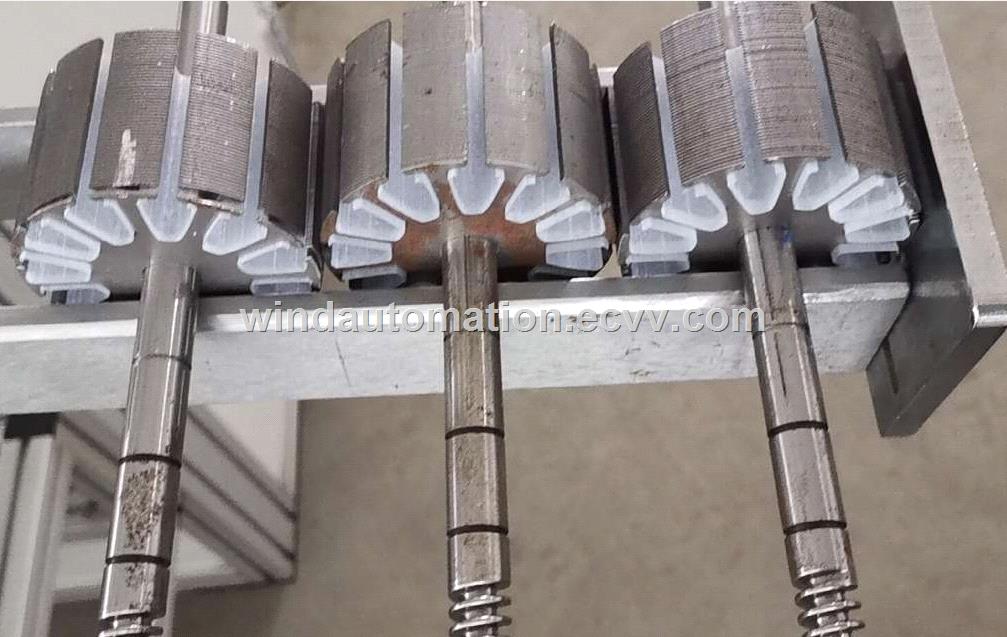

this paper inserting machine form, cut and insert the insulation paper polyester to armature's slot,the process is forming, cutting, inserting, indexing to next slot,repeat the action until all the setted armature slots are finished,one armature is well inserted,machine automatially place the next armature and repeat the job.
