| Type: | Fuse Link |
|---|---|
| Brand Name: | Solarson |
| Safety Standards: | CE ISO CCC |
| Breaking Capacity: | high |
| Usage: | low voltage |
| Model Number: | NH2 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

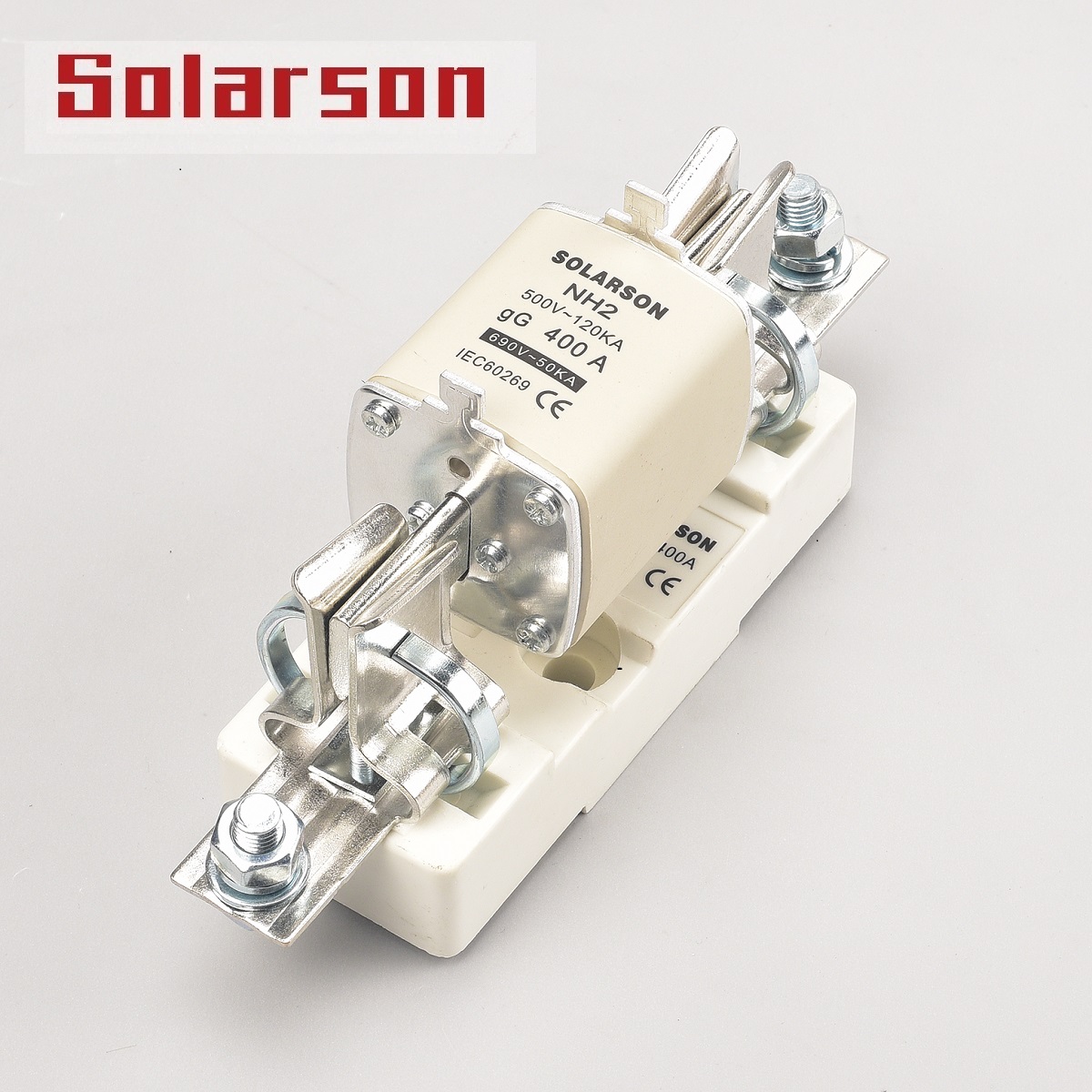

690V HRC NH2 Fuse Link and Holder 80A 100A 125A 135A 150A 160A 200A 250A 315A 355A 400A
General industrial applications or for the protection of motor circuits.
Version with voltage free metal gripping lugs for insulated fuses. Light yellow ceramic available.
Technical Data:
Rated Voltage: 500V/690V
Rated Currents: 80A 100A 125A 135A 150A 160A 200A 250A 315A 355A 400A
Breaking Capacity: 500V-120kA 690V-80kA
Function Level: gG/gLgtraMgMaR
Standard: IEC50269 DIN43620 VDE 0636
| No. | Product type | Competitor Part Number | Rated Voltage (V) | Rated current (A) | Overall dimension (mm) | |||||
| gG | aR | A | C | D | E | H | ||||
| 18004 | NH1 | NH1 | RS32 | 500/690 | 32-250 | 135 | 68 | 46 | 20 | 58.5 |
| 18005 | NH2 | NH2 | RS33 | 500/690 | 80-400 | 150 | 68 | 58 | 25 | 68.5 |
| 18006 | NH3 | NH3 | RS34 | 500/690 | 160-630 | 150 | 68 | 70 | 32 | 82 |
