Type: | surge arrester |
---|---|
Brand Name: | Jecsany |
Safety Standards: | IEC |
Breaking Capacity: | GOOD |
Usage: | HIGH |
Model Number: | YH5W-3 |
Place of Origin: | China (Mainland) |
Quick Details
Specifications
the following example is for you reference.
Features:

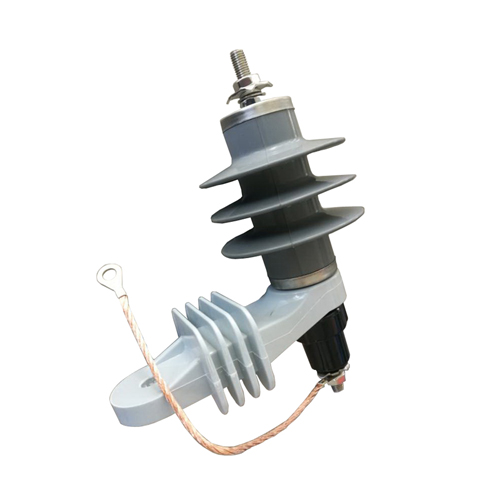

the zinc oxide surge arrester is the most advanced oVer-voltage protector in the world. Due to make the resistor disc of core component mainly adopt zinc oxide arrester. Compared with the conventional siliconcarbide arrester, this prescription of the product improves greatly the volt-ampere characteristics of the resistor disc and increase through- current capability at over-voltage so as to bring a rad local-changes for the characteristics of the arresters.
Technical details:
Description Unit Value Rated voltage KV 3 Nominal discharge current KA 5 Rated AC system frequency Hz 50 / 60 Continuous operating voltage(rms) KV 2.55 1/4s steep current impulse (crest) KV 11.3 8/20us Lighting impulse residual voltage(crest) KV 9 30/60us Swithcing current impulse KV 8.9 Rectangular current withstand 2ms A 150 4/10us High current impulse withstand(crest) KA 65 Leakage/Creepage Distance mm 250
Operation method of useage:
Package:
