After-sales Service Provided: | Engineers available to service machinery overseas |
---|---|
Warranty: | 2 years |
Certification: | CE FDA |
Brand Name: | TIGERTEC |
Condition: | New |
Weight: | 1200kgs |
Power(W): | 3kw/5.5kw water cooled |
Voltage: | 380v, 3ph/220v,3ph |
Model Number: | TR1325 |
Place of Origin: | China (Mainland) |
CNC or Not: | CNC |
Quick Details
Specifications

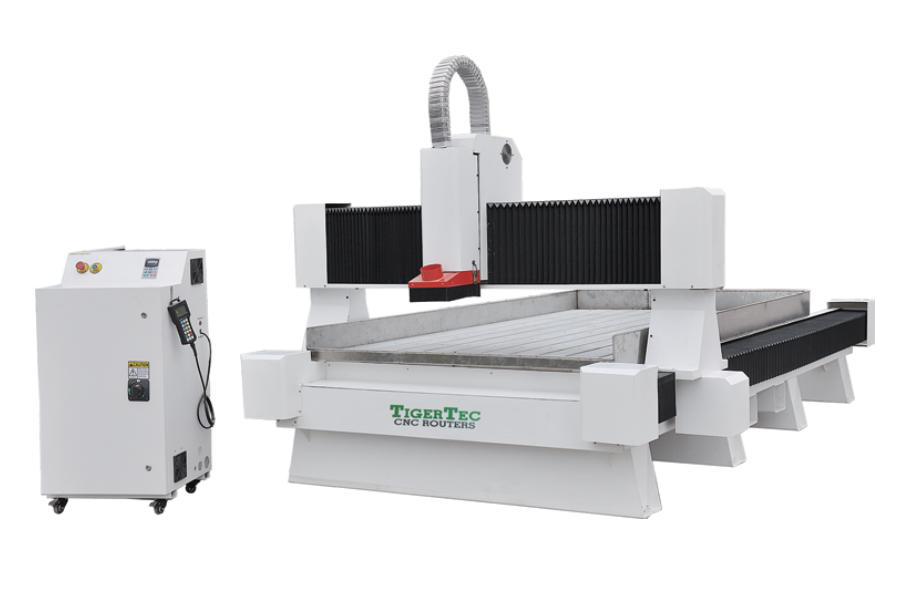

Stone Engraving Machine
1. Heavy-duty welded steel structure, strong frame body
2. 5.5kw constant water-cooled spindle specially for stone processing, powerful cutting force with high efficiency
3. Imported linear rail, high accuracy, maximum workload and long service time
4. High precision rack gear transmission, smooth operation, fast speed and strong power.
5. Bidirectional tool cooling system, effectively improve longer life-span of tools.
6. Configured with water tank and automatic cooling water supply system.
7. Overall dust-proof and water-proof design.
Model NO. |
TR1325 |
Machine structure |
Welded steel structure |
Working area |
13002500200mm |
Carving depth |
10mm |
Max Carving Speed |
10m/min |
Working accuracy |
<0.05mm |
Command code |
G code |
Spindle motor |
3kw/5.5kw water cooled |
Diameter of collet |
6-12.7mm |
XYZ linear rail |
Square linear rail |
Transmission mode |
Rack and pinion for XY-axis ballscrew for Z-axis |
Weight |
1200kgs |
