| Rated Voltage: | 8KV/mm |
|---|---|
| Application: | High Temperature |
| Material: | Composite Polymer |
| Type: | Thermal Grease |
| Brand Name: | LTD |
| Tensile Strength: | MPa |
| Model Number: | LE120-500 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
LE SeriesThermal Grease
Typical Applications:
L between Semiconductor and heatsink
L between CPU and heatsink
L between power resistor and base
L Thermoelectric cooler
L the surface of temperature regulator and assembly
L High-power LED lighting
Physical Properties:
Test Item |
TEst Method |
Unit |
LE120 |
LE200 |
LE300 |
LE380 |
LE500 |
Color |
Visual |
- |
White |
White |
Gray |
Gray |
Gray |
Specific Gravity |
ASTM D792 |
g/cm3 |
2.1 |
2.4 |
3.0 |
3.2 |
3.38 |
Continuous Use Temp |
EN344 |
-40~+200 |
-40~+200 |
-40~+200 |
-40~+200 |
-40~+200 | |
WEight Loss |
@150240H |
% |
1.0 |
1.0 |
0.5 |
0.5 |
0.5 |
BReakdown Voltage |
ASTM D149 |
KV/mm |
10 |
10 |
8 |
8 |
8 |
VOlume Resistivity |
ASTM D257 |
cm |
11015 |
91012 |
11013 |
31013 |
91012 |
Dielectric Constant |
ASTM D150 |
@1MHz |
4.42 |
5.78 |
5.88 |
6.79 |
6.1 |
Dielectric Loss |
ASTM D150 |
@1MHz |
2.05E-03 |
6.49E-03 |
3.58E-03 |
8.13E-03 |
7.67E-03 |
Thermal Conductivity |
ISO 22007-2 |
W/mK |
1.2 |
2.0 |
3.0 |
3.8 |
5.0 |
THermal Impedance |
ASTM D5470 |
-in2/W |
0.150 |
0.050 |
0.015 |
0.012 |
0.009 |

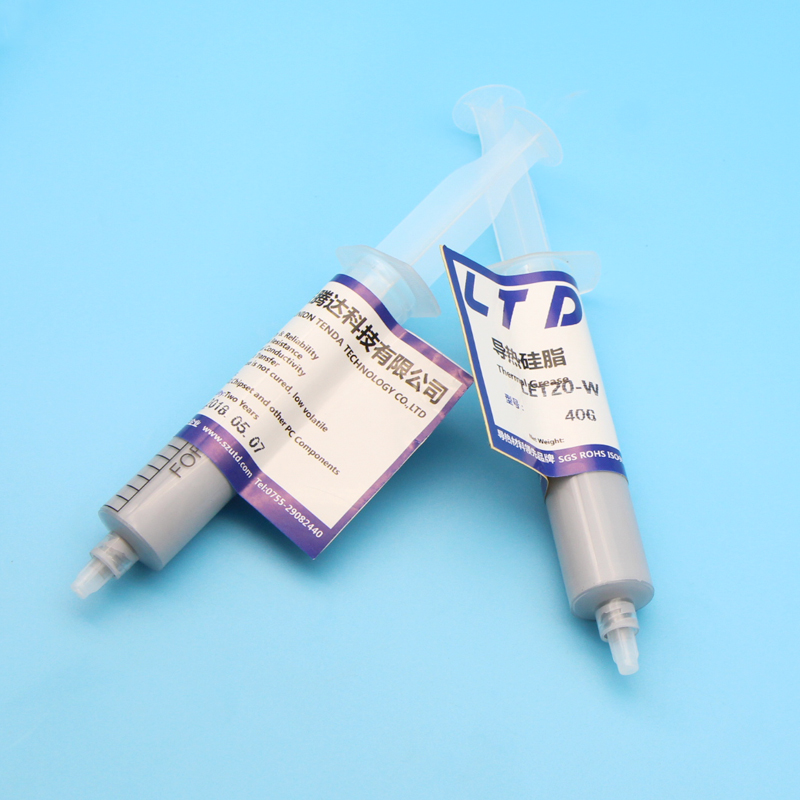

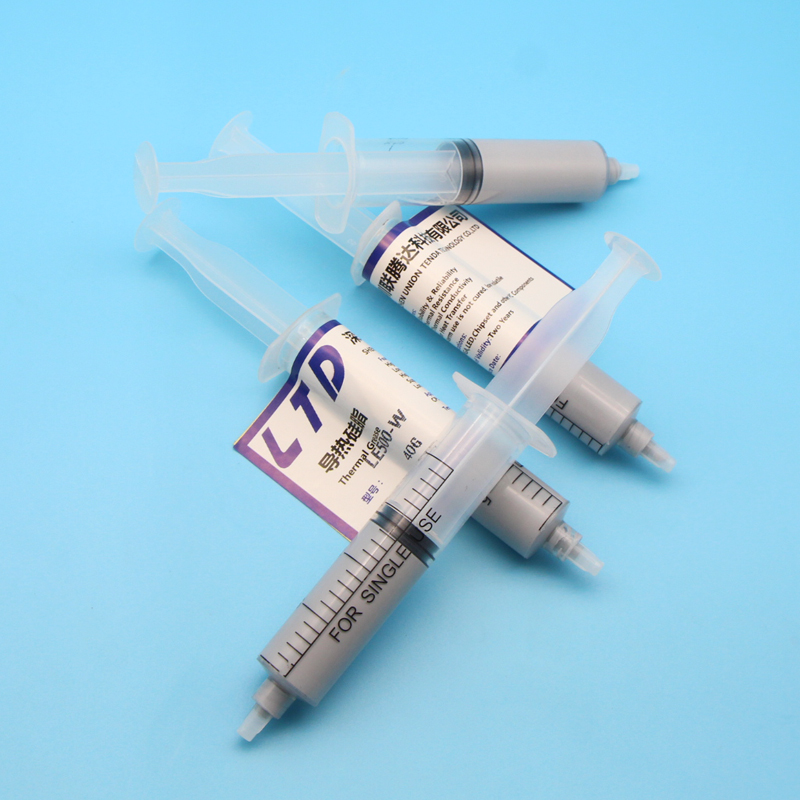

Standard package: syringe/pot/bucket package;
30G/40G/1KG/5KG/10KG/20KG, customized specifications available;
for more please feel free to contact us.
