| Rated Voltage: | KV/mm |
|---|---|
| Application: | High Temperature |
| Material: | Composite Polymer |
| Type: | Insulation Tape |
| Brand Name: | LTD |
| Tensile Strength: | MPa |
| Model Number: | LCT080 |
| Place of Origin: | China (Mainland) |
| Color: | White |
Quick Details
Specifications

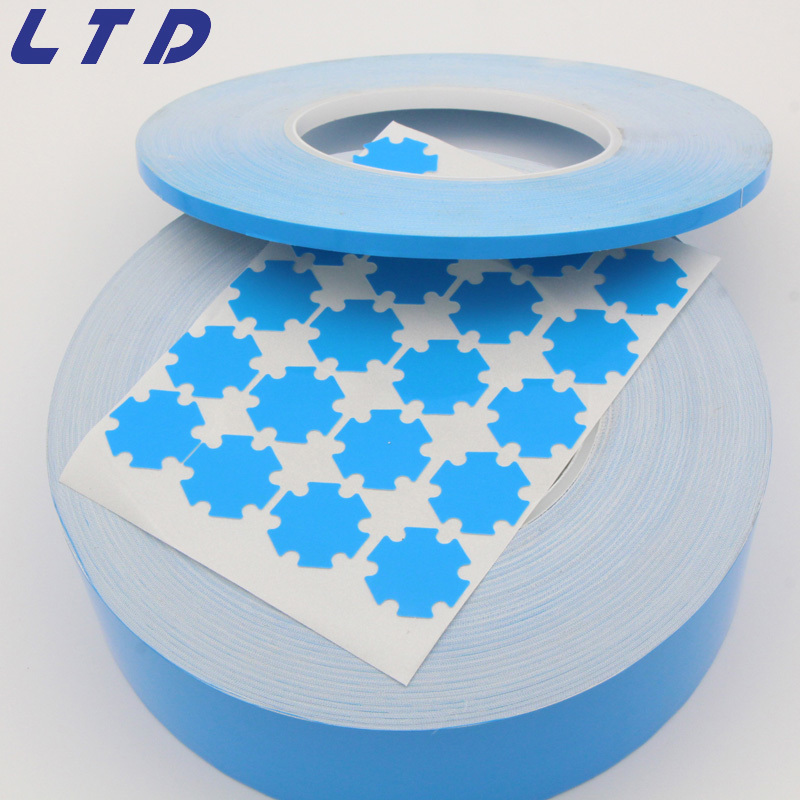

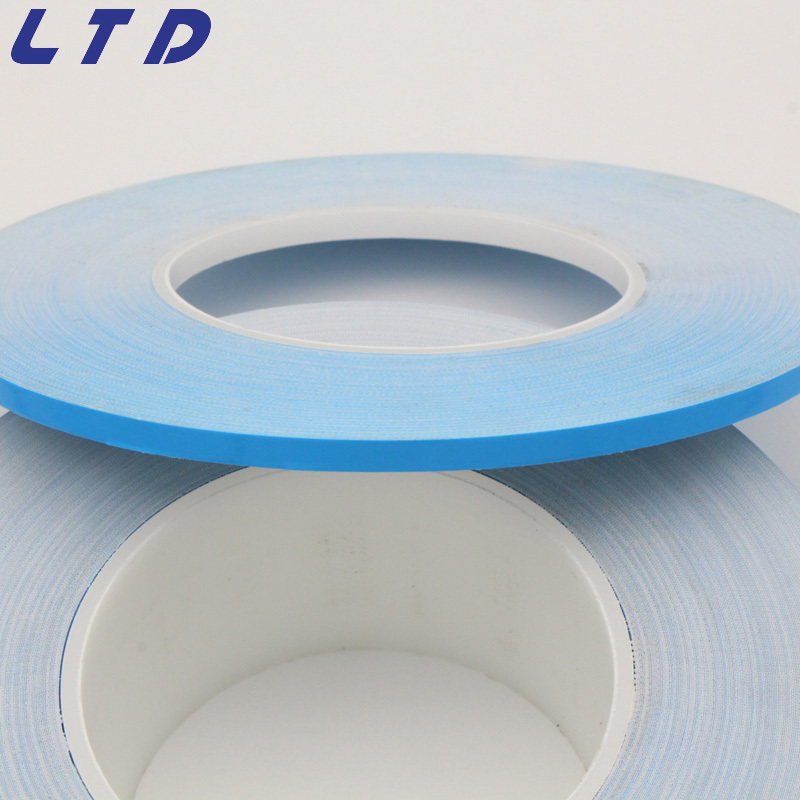

LCT Fiberglass Reinforced Thermal Acrylic Tape
Features & Benefits:
L Perfect thickness standard, easy to install fixed, replace the screw fixed
L Excellent adhesion strength and thermal insulation
Typical Applications:
L Secure the heatsink to the packaged chip
L Secure the heatsink to the power supply circuit board or vehicle control circuit board
L LED light bar and metal frame assembly
L Can replace hot melt adhesive, screw, buckle to be fixed
Physical Properties:
Carrier |
Fiberglass |
Fiberglass |
Fiberglass |
Fiberglass |
Fiberglass |
Fiberglass |
Fiberglass |
Color |
White |
White |
White |
White |
White |
White |
White |
THickness |
0.1mm |
0.15mm |
0.2mm |
0.25mm |
0.3mm |
0.4mm |
0.5mm |
180 Peel Force (PSTC-101)(N/25mm) |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
Temp Resistance Long term (C) Short term(C) |
120 180 |
120 180 |
120 180 |
120 180 |
120 180 |
120 180 |
120 180 |
Retentivity (PSTC-7)(Hour) (1 kg/inch/25C) |
48 |
48 |
48 |
48 |
48 |
48 |
48 |
ADhesion |
1.1 |
1.4 |
1.4 |
1.4 |
1.5 |
1.5 |
1.6 |
BReakdown Voltage (KV) |
2 |
3 |
3.5 |
3.8 |
4 |
4.5 |
5.0 |
Initial Adhesion |
0.6 |
1.3 |
1.3 |
1.3 |
1.3 |
1.5 |
1.6 |
THermal Conductivity (ASTMD5470 W/mK) |
0.8 | ||||||
USe Temperature |
-20~+120 | ||||||
Shelf Life |
to maintain the best performance, at a temperature of 23 C5 C, relative humidity of 60%10% in the original box. In addition to the use of this product within 12 months from the date of production. | ||||||
Standard Specification: standard roll form of 1040mm*50M, customized sheet, die-cut form available.
for more, please feel free to contact us.
