Type: | Boxing Machine |
---|---|
After-sales Service Provided: | Engineers available to service machinery overseas |
Brand Name: | Hongming |
Packaging Material: | Paper |
Application: | Machinery & Hardware |
Condition: | New |
Weight: | 7788kg |
Dimension(L*W*H): | 6800*5500*3300 |
Model Number: | HM-6418D |
Place of Origin: | China (Mainland) |
Power: | 35KW |
Voltage: | AC380V |
Driven Type: | Electric |
Automatic Grade: | Automatic |
Packaging Type: | |
Color: | white |
Quick Details
Specifications
the following example is for you reference.
1.Brief Introduction:

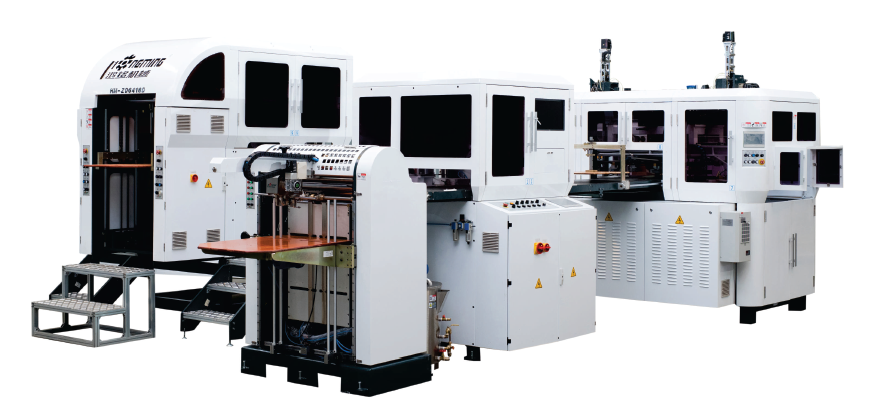

HM-ZD6418D High Speed Automatic Rigid Box Machine is one of the most advanced fully auto box machines by our company.It is suitable to make various types of rigid boxes for mass production,such as mobile phone boxes,cosmetic boxes,watch boxes,slanting boxes,slip case,etc.
2.Techincal parameters:
Greyboard Size:max 820*580mm min 124*74mm
Paper Size: max850*610mm min 180*95mm
Finished Box size:max 600*400*130mm min 100*50*12mm
3.Performance features:
Computer control for auto mould changing
Auto Error stop and display
Can produce face paper slotted products, and complete the hem at one time
