| Type: | Geomembranes |
|---|---|
| Material: | EVA,HDPE,LDPE,LLDPE,PVC |
| Brand Name: | Tianhai |
| Type: | smooth |
| thickness: | 1.5mm |
| color: | black |
| Place of Origin: | China (Mainland) |
| color: | black |
| quality: | GM13 |
| function: | waterproofing |
| certificate: | ISO |
Quick Details
Specifications
Geomembranes such as HDPE 1.5 mm will be specified for their high Chemical resistance, strong mechanical properties, and long-term service lives; but we should also take time to recognize that this material offers a carbon Footprint rating that is 3x lower than compacted clay. Even if you evaluate Good quality clay and a borrow site just 16 km from the project site, HDPE Geomembranes coming from 1000 km away still outperform compacted clay on a Measure of carbon footprint.

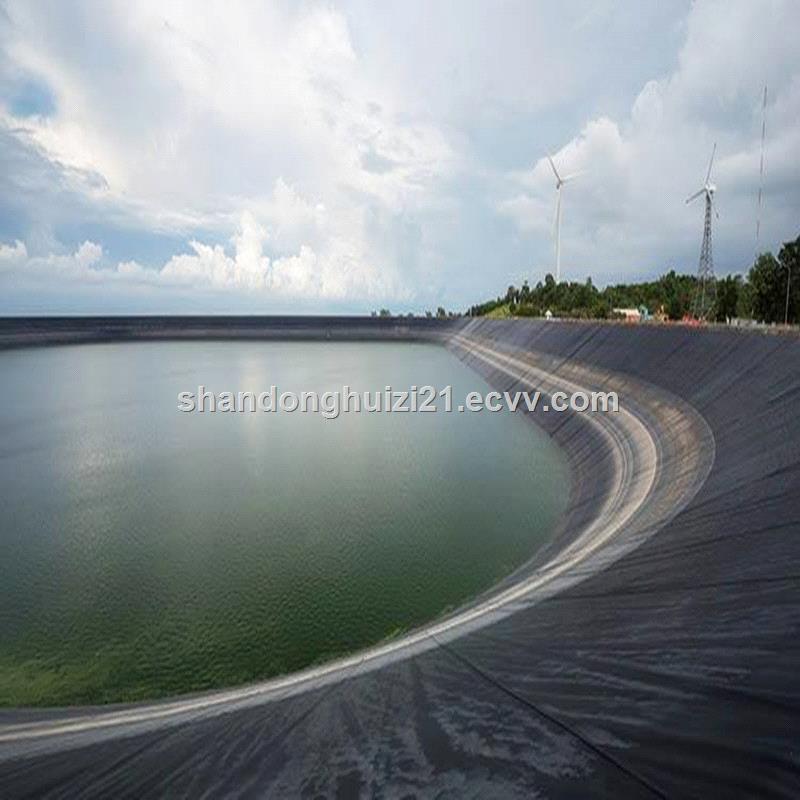

HDPE fish pond liner specification data
Smooth HDPE geomembrane-GM13(ASTM) technical data | |||||||||||
Properties |
Test Method |
Test Value | |||||||||
0.75 mm |
1.00 mm |
1.25 mm |
1.50 mm |
2.00 mm |
2.50 mm | ||||||
Thickness (min. ave.) lowest individual of 10 values |
D5199 |
Nom -10% |
Nom -10% |
Nom -10% |
Nom -10% |
Nom -10% |
Nom -10% | ||||
Density (min.) |
D 1505/D 792 |
0.94 |
0.94 |
0.94 |
0.94 |
0.94 |
0.94 | ||||
Yield Strength |
D 6693 |
11 kN/m |
15 kN/m |
18 kN/m |
22 kN/m |
29 kN/m |
37 kN/m | ||||
Break Strength |
20 kN/m |
27 kN/m |
33 kN/m |
40 kN/m |
53 kN/m |
67 kN/m | |||||
Yield Elongation |
12% | ||||||||||
Break Elongation |
700% | ||||||||||
Tear Resistance (min. ave.) |
D 1004 |
93 N |
125 N |
156 N |
187 N |
249 N |
311 N | ||||
Puncture Resistance (min. ave.) |
D 4833 |
240 N |
320 N |
400 N |
480 N |
640 N |
800 N | ||||
Stress Crack Resistance (2) |
D 5397 |
300 hr. | |||||||||
Carbon Black Content - % |
D 4218 |
2.0-3.0% | |||||||||
Oxidative Induction Time (OIT) (min. ave.) |
|
|
|
|
|
|
| ||||
(a) Standard OIT |
D 3895 |
100 min. | |||||||||
(b) High Pressure OIT |
D 5885 |
400 min. | |||||||||
Oven Aging at 85C |
|
|
|
|
|
|
| ||||
(a) Standard OIT (min. ave.) - % retained after 90 days |
D 3895 |
55% | |||||||||
(b) High Pressure OIT (min. ave.) - % retained after 90 days |
D 5885 |
80% | |||||||||
UV Resistance |
|
|
|
|
|
|
| ||||
High Pressure OIT (min. ave.) - % retained after 1600 hrs |
D 5885 |
50% | |||||||||
