| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | CE |
| Weight: | 500KG |
| Brand Name: | HOPU |
| Condition: | New |
| Dimension(L*W*H): | 1.5X1.4X1.7 |
| Power(W): | 30 |
| Voltage: | 380 |
| Usage: | Insulation Oil |
| Model Number: | zy |
| Place of Origin: | China (Mainland) |
| Working Pressure: | 0.03 |
| Flow: | 600lph |
| vacuum: | single stage |
Quick Details
Specifications
Application

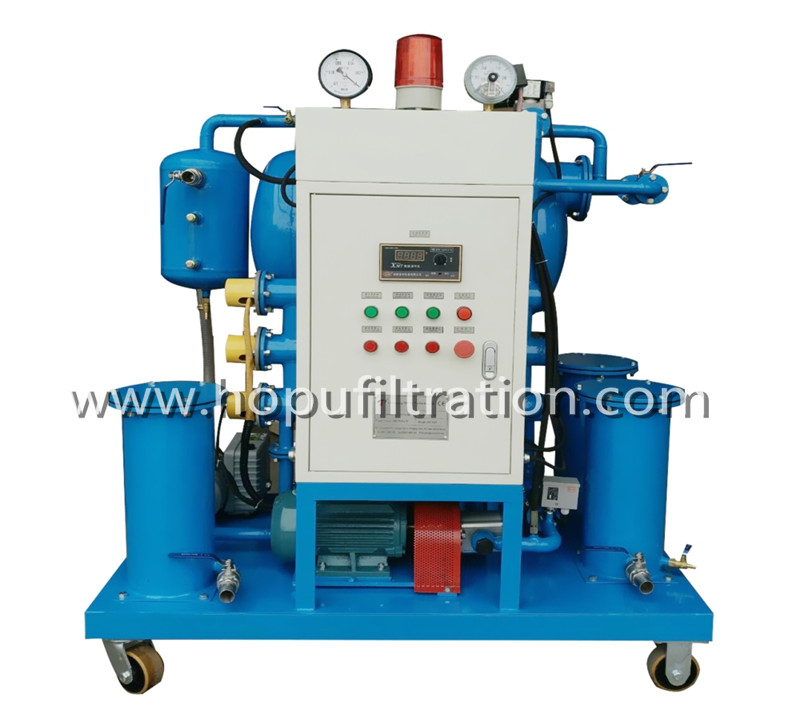

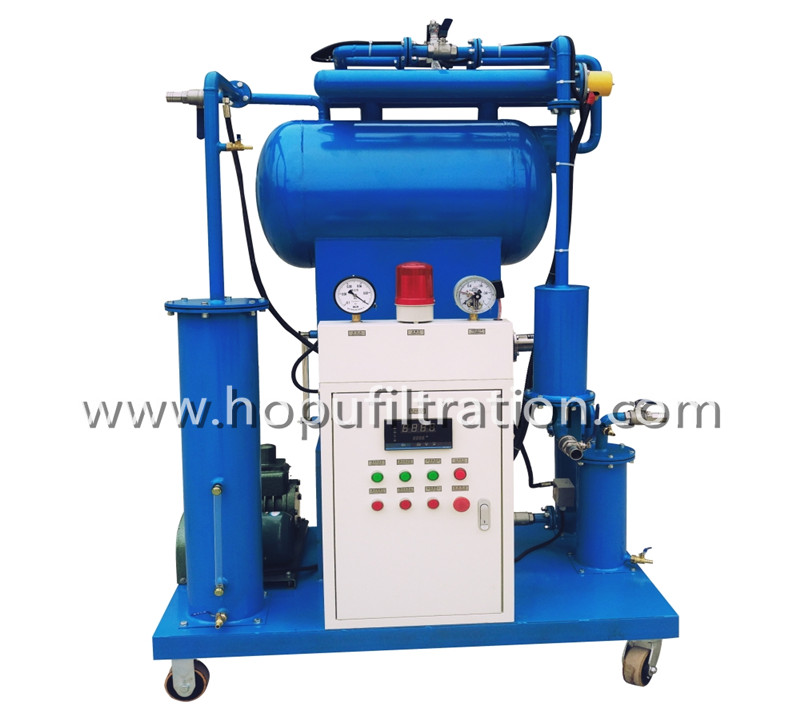

Mobile Small Transformer Oil Dewatering Dehydraion Purifier is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system.ZY series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
Single stage transformer oil purifier is designed to purify electrical insulating oil in the oil-filled electrical equipment.the dissolved gases and moisture, solid particulate, contamination can be completely removed by dehydrator, degasification and filtration processes,
Single stage transformer oil purifier used in factory workshops, power transmission and generation station. the quality of insulating oil can be upgr Transformer oil centrifuging filtration machine
Aded and the deteriorated oil can be reclaimed to extent the life of insulating oil and ensure safety operation of oil-filled electrical equipment treatment.
Index after purification (test at oil-outlet of the machine):
Water content10 ppm
Gas content1%( by volume)
Acetylene content:0
Breakdown voltage55 KV (Spherical polar)
Filtration precision: 3 micron
Dielectric loss tg0.3% (90C)
Acid value 0.1mgKOH/g
| Parameters | Unit | ZY-10 | ZY-20 | ZY-30 | ZY-50 | ZY-100 | ZY-150 | ZY-200 | ZY-300 | |
| Flow rate | L/min | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 | |
| Working vacuum | MPa | 0.06 to 0.095 | ||||||||
| Working pressure | MPa | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Breakdown voltage | KV | 55 | 55 | 55 | 60 | 60 | 60 | 60 | 65 | |
| Moisture | PPM | 5 | ||||||||
| Gas content | % | 0.1 | ||||||||
| Impurity content | 5 | |||||||||
| Temperature range | C | 10 to 80 | ||||||||
| Power supply | 50HZ380V(being regulated according to customer's option) | |||||||||
| Working noise | DB (A) | 61 | 63 | 70 | 70 | 75 | 70 | 70 | 70 | |
| Heating power | kW | 11 | 13 | 15 | 30 | 48 | 52.5 | 57.5 | 60 | |
| Total power | kW | 12.5 | 14.5 | 16.5 | 33.5 | 51.5 | 57.5 | 65.5 | 68 | |
| Inlet/outlet caliber | mm | 25 | 25 | 25 | 32 | 42 | 50 | 50 | 60 | |
| Weight | kg | 150 | 200 | 260 | 300 | 400 | 450 | 550 | 600 | |
| Size | L | mm | 1050 | 1050 | 1100 | 1200 | 1450 | 1600 | 1800 | 1900 |
| W | mm | 750 | 750 | 800 | 950 | 950 | 1100 | 1200 | 1200 | |
| H | mm | 1350 | 1350 | 1400 | 1500 | 1650 | 1800 | 1900 | 1900 | |
