| Brand Name: | Dechuang |
|---|---|
| Accuracy: | 1mm |
| Material: | aluminum/PTFE/stainless steel |
| Measuring range: | 150meter |
| display color: | Blue/special custom |
| Model Number: | DCRD1000B |
| Place of Origin: | China (Mainland) |
| Application: | especially be used in the high temperature & pressure, strong dust & multiple mixing environment, it can satisfy many applications for a large range measurement with high-precision requirements |
| Antenna type: | PTFE/PEEK/PE, can choose Lens antenna guard/Anti-corrosive antenna/Antenna heat pipe/Quartz isolation flange; |
| Process connection: | thread, flange |
| Housing material: | Aluminium alloys single chamber or double chamber(220VAC Only with double chamber); |
| Product Name: | FMCW Radar Level Measurement |
Quick Details
Specifications

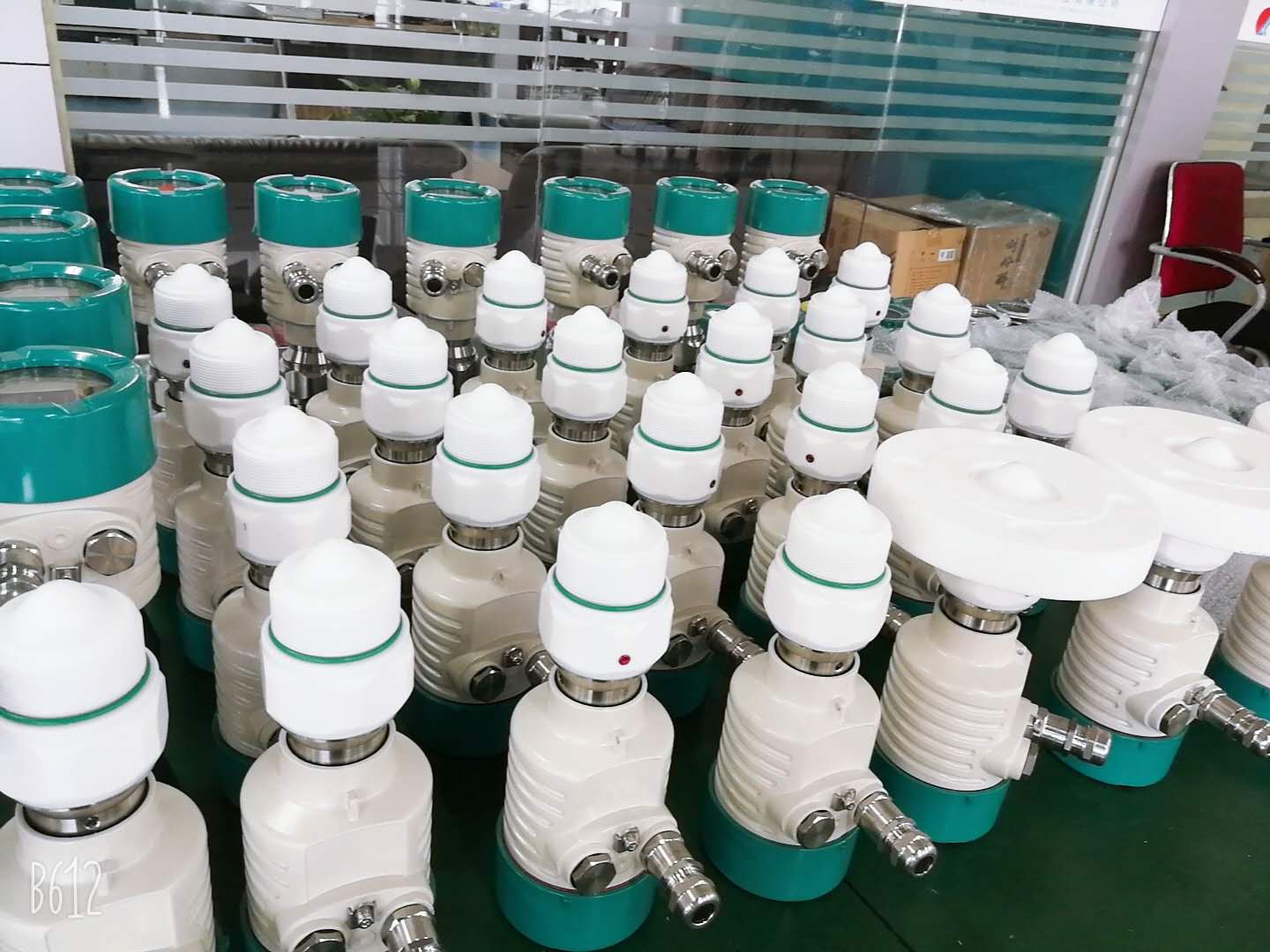

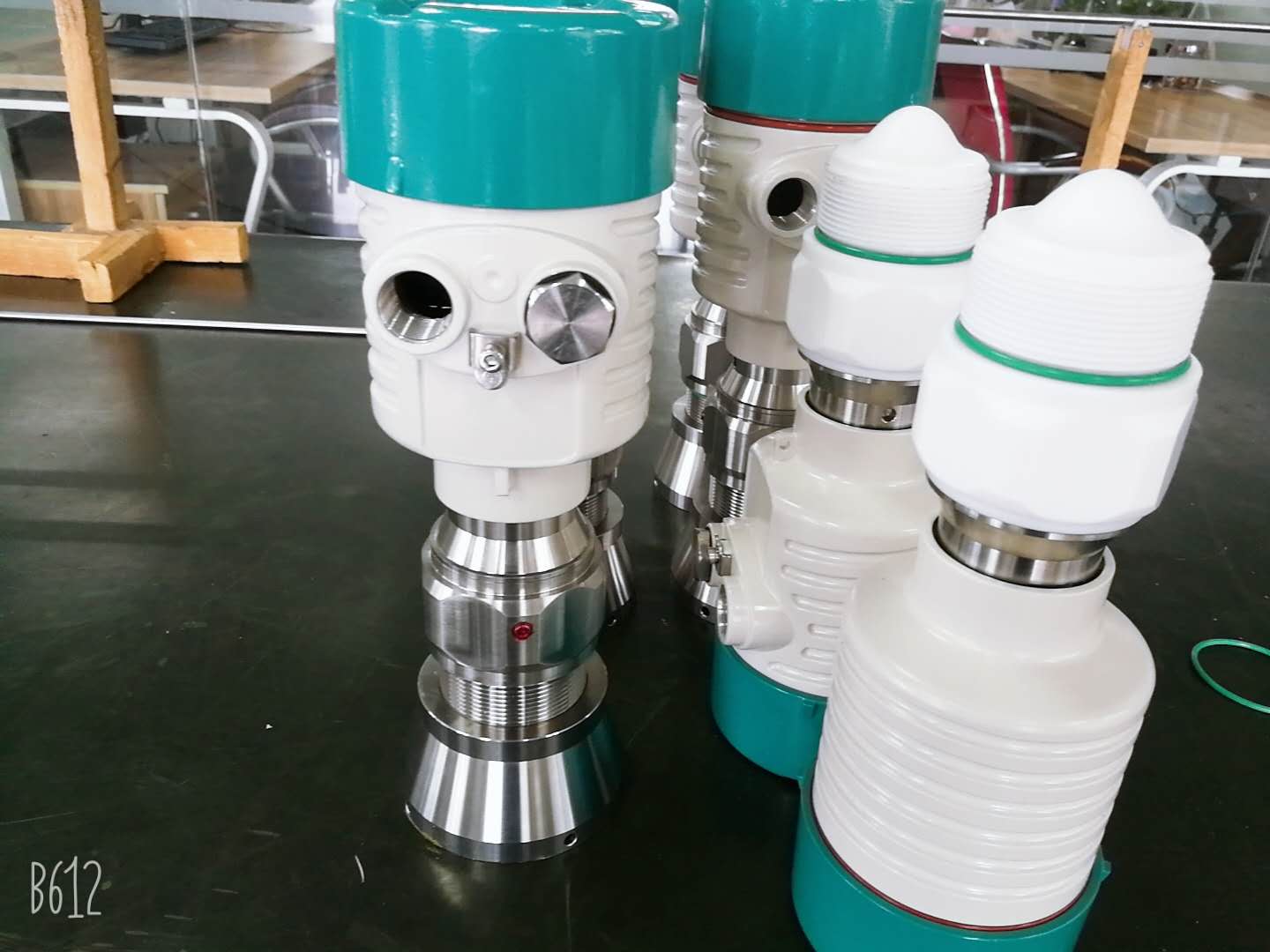

Two-wire or four-wire FMCW type 120ghz radar level transmitter simple level measurement
1. Product Profile
the 120GHz FMCW Radar level transmitter using 10GHz sweep bandwidth, it is been calculated by FPGA chip hardware can achieve the Fast Fourier Transform. the company's engineer & technical personnel creatively applied diffraction wave separation and spectrum refinement algorithm technique to reach the measurement accuracy up to 0.217mm (Theoretical value) within 50 meters range, and in the static air vertical reflection surface test, the distance-resolution is 8mm.
the product DCRD1000B just need 80ms to finished the distance measurement & calculation process for 100m ranges. this allows the system to have more time and resources to deal with various kinds of things on level application of the instrument, such as: echo signal probability assessment / level prediction / level reliability analysis / input&output/ communication, etc.
CRD1000B using PTFE lens antenna with hermetic potting design, there is a perfect solution which resolved the antenna near field radiation suppression issues, that makes it has a good directional performance and less 1 degrees beam angle (the mass product manufacturing process differences, may be biased 0.3 degrees).
2.the main advantages:
1. Not be affected by atmospheric precipitation;
2. the ambient temperature is -60C;
3. Being Installed on the outside of tank;
4. the antenna inside of the level transmitter is protected by fluoroplastic lens heating;
5. the measuring radiation is narrow, easy to install and measurement sensibility;
6. the accuracy of the level measurement can't be limited by the temperature of tank;
7. Evaporation and dust will not affect the measurement;
8. Boiling liquid level measurement;
9. Corrosive liquid level measurement, non-contact, non-corrosion, stable measurement;
3.Applications
Specific Details
