| Light Source: | LED |
|---|---|
| Item Type: | Wall Washers |
| Brand Name: | ADLED |
| Certification: | CE,EMC,FCC,LVD,RoHS,UL |
| IP Rating: | IP67 |
| Lamp Power(W): | 28 |
| Input Voltage(V): | DC12V/DC24V |
| Model Number: | ADE-E3030-18 |
| Place of Origin: | China (Mainland) |
| Lamp Body Material: | Aluminum |
| Working Lifetime(Hour): | 50000 |
| Working Temperature(): | |
| Color Temperature(CCT): | Pure White |
| CRI (Ra>): | 80 |
| Lamp Luminous Efficiency(lm/w): | 2160 |
| Lamp Luminous Flux(lm): | 2160 |
| Warranty(Year): | 5 |
| LED Light Source: | LED |
Quick Details
Specifications
Parameters:

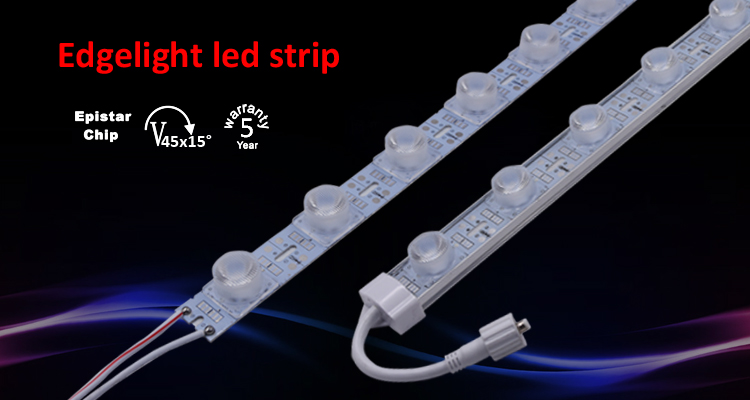

Model: ADE-E3030-18
LED Type: Epistar chip 3030 SMD LED
Power: 28.8W/M
Work Voltage: DC12V/24V
LED Quantity: 18leds/m
Flux Lumen: 2160LM
Beam Angle: 45x15
Waterproof Grade:IP67
Driven Mode:Constant current
Dimmable by using dimmer controller
Features:
Powered by Epistar chip 3030 SMD LED
1.6mm aluminium base for good heat sinking
DC12V/24V low-voltage power supply, security and energy efficiency
Use mounting clip to fix,easy to install
Long life-span
Application:
Airport light box,Metro light box,Railway station light box,Bus station light box,Parking lot light box
Exhibition light box,Ceiling roof lights,Exterior wall light box advertising
Building decorative lighting,Billboard advertising signs
Recommended depth 8-20cm external single side light boxes
Recommended depth 10-25cm external double sided light boxes
