| Type: | Geomembranes |
|---|---|
| Material: | EVA,HDPE,LDPE,LLDPE,PVC |
| Brand Name: | Tianhai |
| Type: | smooth |
| thickness: | 1.0mm |
| color: | black |
| Model Number: | 1.0mm |
| Place of Origin: | China (Mainland) |
| color: | black |
| quality: | GM13 |
| function: | waterproofing |
| certificate: | ISO |
| sample: | yes |
Quick Details
Specifications
HDPE membrane liner has unique physical, Chemical, biological, and mechanical properties. Within a certain range, Properties may be varied to suit desired specifications for specific liners. the desired properties are usually determined after careful consideration of Prevailing conditions under which the liner will be installed and operated. of Prime importance are the following criteria:
A,Strength characteristics.
B,Elastic and plastic deformability.
C,Relaxation characteristics.
D,Chemical rankness.
E,Stress cracking resistance.
F,Ageing resistance.
G,Process ability.
H,Thickness.

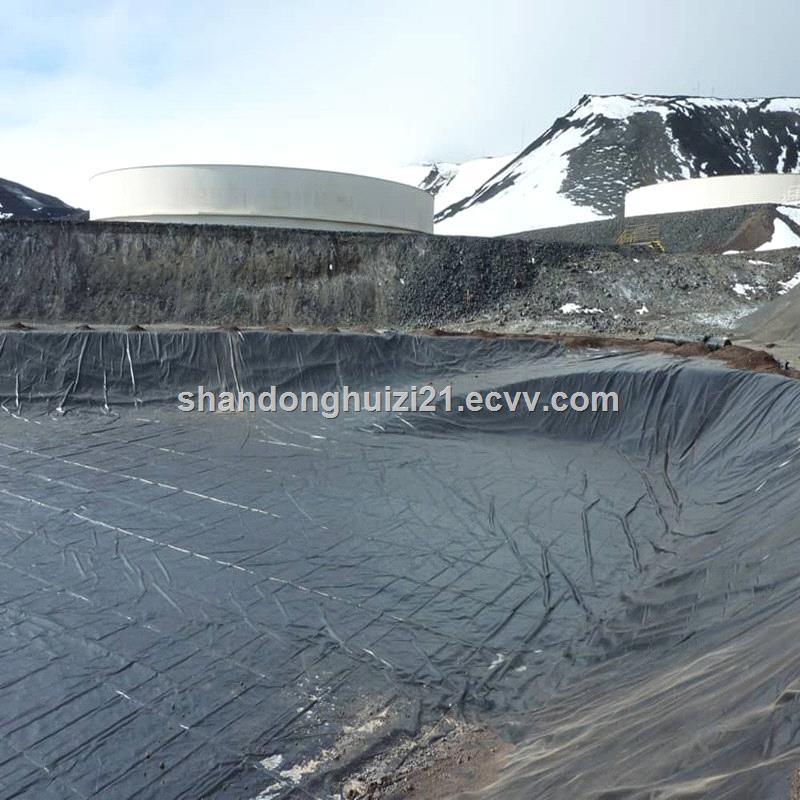

HDPE pond liner specification data
Smooth HDPE geomembrane-GM13(ASTM) technical data | |||||||||||
Properties |
Test Method |
Test Value | |||||||||
0.75 mm |
1.00 mm |
1.25 mm |
1.50 mm |
2.00 mm |
2.50 mm | ||||||
Thickness (min. ave.) lowest individual of 10 values |
D5199 |
Nom -10% |
Nom -10% |
Nom -10% |
Nom -10% |
Nom -10% |
Nom -10% | ||||
Density (min.) |
D 1505/D 792 |
0.94 |
0.94 |
0.94 |
0.94 |
0.94 |
0.94 | ||||
Yield Strength |
D 6693 |
11 kN/m |
15 kN/m |
18 kN/m |
22 kN/m |
29 kN/m |
37 kN/m | ||||
Break Strength |
20 kN/m |
27 kN/m |
33 kN/m |
40 kN/m |
53 kN/m |
67 kN/m | |||||
Yield Elongation |
12% | ||||||||||
Break Elongation |
700% | ||||||||||
Tear Resistance (min. ave.) |
D 1004 |
93 N |
125 N |
156 N |
187 N |
249 N |
311 N | ||||
Puncture Resistance (min. ave.) |
D 4833 |
240 N |
320 N |
400 N |
480 N |
640 N |
800 N | ||||
Stress Crack Resistance (2) |
D 5397 |
300 hr. | |||||||||
Carbon Black Content - % |
D 4218 |
2.0-3.0% | |||||||||
Oxidative Induction Time (OIT) (min. ave.) |
|
|
|
|
|
|
| ||||
(a) Standard OIT |
D 3895 |
100 min. | |||||||||
(b) High Pressure OIT |
D 5885 |
400 min. | |||||||||
Oven Aging at 85C |
|
|
|
|
|
|
| ||||
(a) Standard OIT (min. ave.) - % retained after 90 days |
D 3895 |
55% | |||||||||
(b) High Pressure OIT (min. ave.) - % retained after 90 days |
D 5885 |
80% | |||||||||
UV Resistance |
|
|
|
|
|
|
| ||||
High Pressure OIT (min. ave.) - % retained after 1600 hrs |
D 5885 |
50% | |||||||||
