Description

DC-E20 RTV-2 Silicone Potting Component is a newly silicone rubber material of sealing compounds.
It cures with no heat, no corrosion and very low shrinkage. It can be applied to the sealing and pouring of various electronic components, and then forming insulation system.

Application

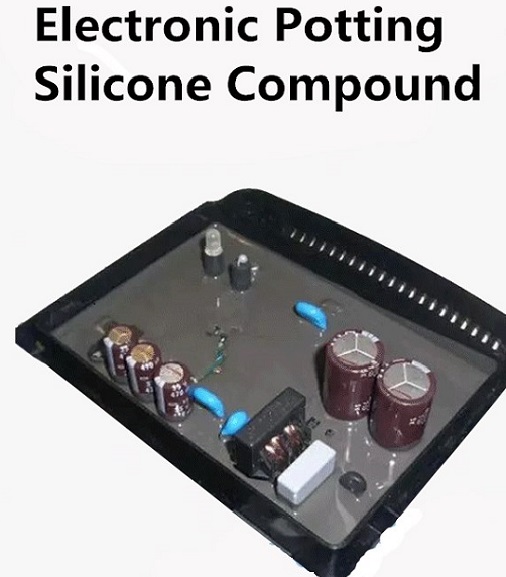

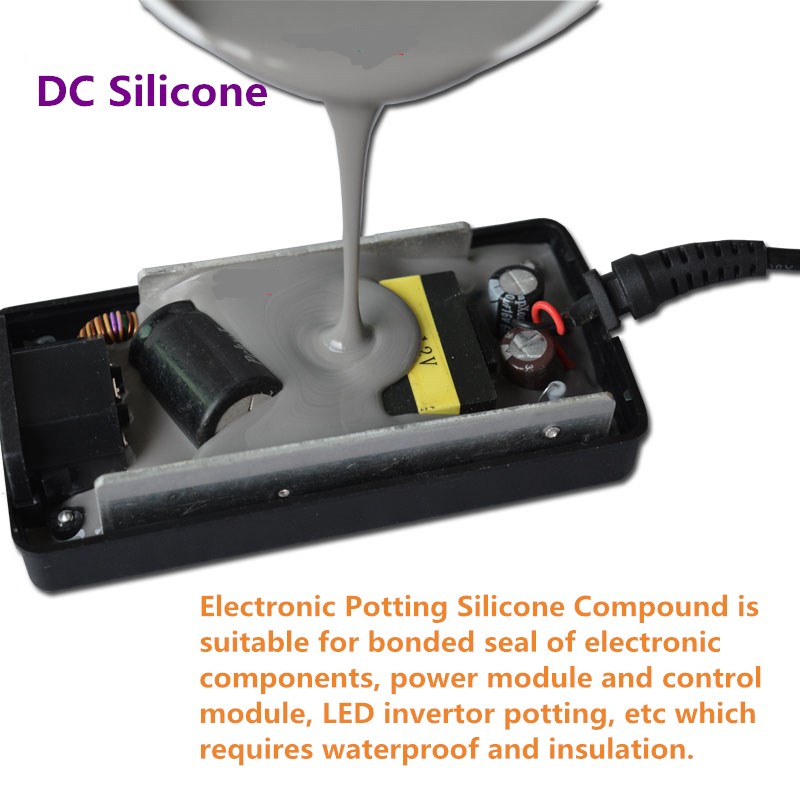

DC-E20 RTV-2 Silicone Potting Component is suitable for bonded seal of electronic components, power module and control module, which requires waterproof and insulation. It can be broadly used for LED screen, Wind Power Generator, PCB substrate, etc



Technical Parameters

Model	Color	Viscosity (cps)	Hardness (A)	Mixing ratio	Operating Time(min)	Curing Time(Hr, 25)
DC-E20	Water clear	500100	253	1:1	30~60	4~5





Operation instructions

1, Pls put part A and part B in separate container and stir evenly before mixing the two part together.

2, Weight Ratio: part A: part B = 1:1

3, Deaeration the mixture under 0.08 MPa for 3 minutes.

4, the temperature influences the curing time: When in too low temperature, we suggest customers appropriately heat the mixture to accelerate vulcanization.



Warm tips:

1.the following material may hinder the curing of the product, so pls apply after summary experiment. When necessary, pls clean the application areas.
2. Should be sealed storage.the mixture should be used up at once, avoid causing waste.

3. Silicone belongs to non-dangerous goods, but keep away from mouth and eyes.

4. When it gets stratified after a period of storage, Please mix 9301 evenly before using, it does not affect the performance.



PAckage
20KG/drum vacuum packing for part A + 20KG/drum vacuum packing for part B

200KG/drum packing for part A +200KG/drum packing for part B



SHelf life

1. Eighteen(18) months from date of shipment when stored at 25C in original unopened packages.

2. this kind of product is non-dangerous product, it can be transported as general chemicals.

3. Products exceed the storage life should be confirmed normal before using.
