Description:

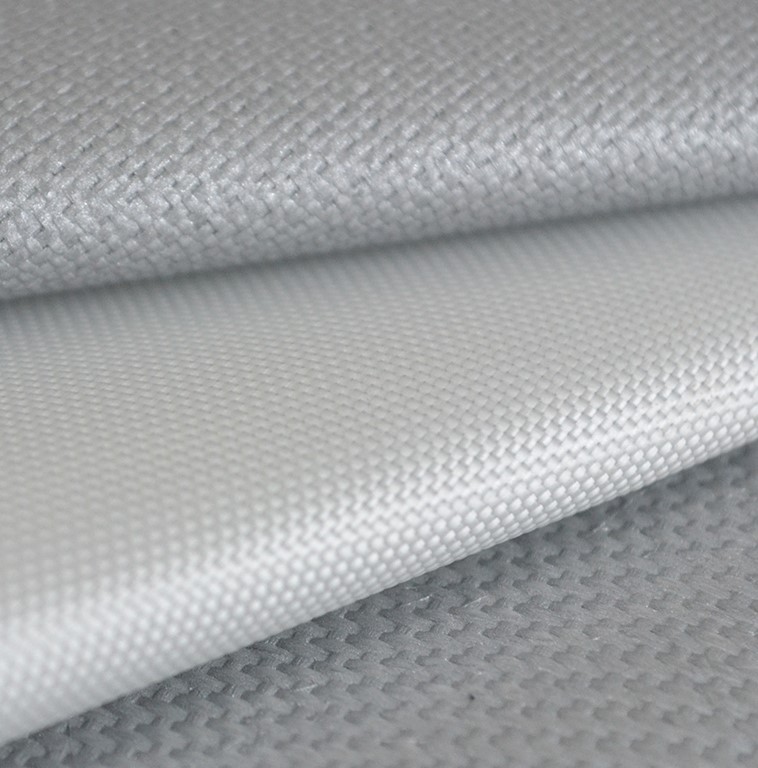

    PU Coated Fiberglass Fabric is a fiberglass fabric coated with Polyurethane, and composite materials with multiple functions, the design of PU coated fiberglass fabric can adapt to different places.
It features good rebound resilience, toughness, softness, bright in color, superior resistance to wear, cold, oil, water, aging and weather. It also has the function of an anti bacterium, and can also be used for mould proofing, heat-insulation and anti-ultraviolet.

Features:

1. High strength and good abrasion

2. Fireroof and low combustible

3. High working temperature

4. Good processbility

Applications:

1.Electric insulation: silicone rubber coated fiberglass cloth features high grade of electric insulation and bear a load of high voltage. It fits for making products like insulation cloth and sleeves.

2.Non-metallic compensator: used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction. this membrane material specially fit for use in industries of petroleum, chemical engineering, cement, iron and steel and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.
3.Anti-corrosion sector: it is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength. It proves to be an ideal anti-corrosion material.
4.Others: apart from above application, it can also be used as sealing material, temperature resistant and anti-corrosion conveyer belt, as well as packaging material.
5.Color can be made according to customers' requirements, such as red, blue, yellow, gray, black, etc.



Specification:

Item	Thickness, mm	Coating weight, g/m^2	Coating side	Total weight, G/m^2	Weave
PC400	0.42	30	1/2	450	4H Satin
PC400	0.42	60	2	470	4H Satin
PC600C	0.75	30	1/2	630	Double Plain
PC600	0.75	40	1/2	680	8H Satin
PC600(R)	0.75	40	1/2	680	8H Satin
PC600(R)	0.75	80	2	720	8H Satin
PA2025	0.80	100	2	700	Plain
PA30	1.0	100	2	1100	Plain
PT600	0.70	30	1	630	8H Satin
PT1100	1.0	50	1	1150	12H Satin
