| Item Type: | Advertising Lights |
|---|---|
| Brand Name: | ADLED |
| Material: | Aluminum & plastic |
| Shape: | 1 Meter or Customized Length |
| Size: | 940*28*18mm |
| Power Consumption: | 48W |
| Model Number: | ADE-E1818-18 |
| Place of Origin: | China (Mainland) |
| Lamp Body Material: | Aluminum Alloy |
| Emitting Color: | |
| Certification: | CE,EMC,FCC,LVD,RoHS,UL |
| IP Rating: | IP67 |
| Working Lifetime(Hour): | 50000 |
| Working Temperature(): | |
| Color Temperature(CCT): | |
| CRI (Ra>): | 80 |
| Lamp Luminous Efficiency(lm/w): | 4400 |
| Lamp Luminous Flux(lm): | 4400 |
| Lamp Power(W): | 48 |
| Input Voltage(V): | DC24 |
| Light Source: | LED |
Quick Details
Specifications
Parameters:
Name |

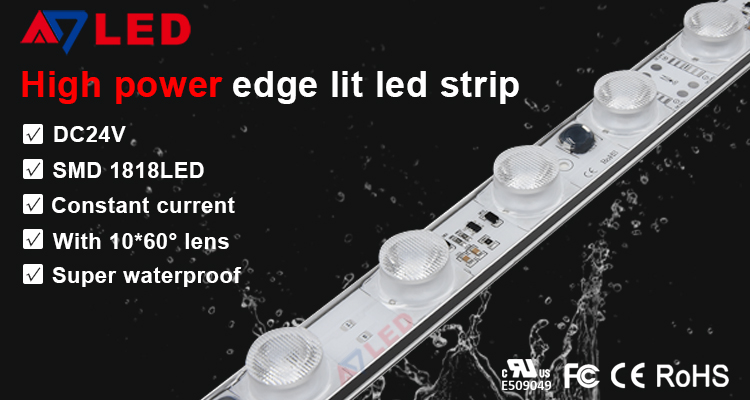

High lumen efficiency SMD1818 48W IP67 250lm/LED edge light module LED bar aluminium for lightboxes |
Model |
ADE-E1818-18 |
LED type |
SMD1818 LED |
Work voltage |
DC24V |
Power |
48W or custom |
LED QTY |
18leds/m |
Driven mode |
Constant Current |
Beam angle |
45X10 or 60X10 |
IP grade |
IP67 |
Lumen |
4400lm |
Size |
940*28*18 mm |
Warranty |
5 years |
HS code |
9405409000 |
Other service |
OEM & ODM,One to One communication,Free Samples |
Application |
Recommended depth 25-50cm external light boxes |
Features:
1. Powered by SMD1818 LED
2. DC24V low-voltage power supply
3. Driven by constant current
4. 1.6mm aluminum base for good heat sinking
5. Each 3 lamps can be cut, length can be customized
6. Dimmable by using dimmer controller
7. with mounting clip to fix, easy to install
Applications:
Aluminium profile LED strip Suitable for airport light box
LED aluminum light bar Suitable for metro light box
Edge lighting LED module suitable for railway station light box
Edge light modules Suitable for bus station light box
Edge light LED sign module suitable for parking lot light box
Aluminum profile LED bar suitable for exhibition light box
Lightbox LED bar Suitable for ceiling roof lights
LED bar aluminium Suitable for exterior wall light box advertising
LED edge backlight module Suitable for building decorative lighting
Edge light LED module Suitable for billboard advertising signs
Recommended depth 25-50cm external double sided light boxes
