| Brand Name: | techwin |
|---|---|
| Wavelength: | N/A |
| Data Rate: | NO |
| warranty: | 1 YEAR |
| Connector: | USB |
| Model Number: | fusion splicer TCW605E |
| Place of Origin: | China (Mainland) |
| Dimensions: | 160mm*150mm*140mm |
| Application: | construction and maintenance of fiber and cable |
| Accuracy: | ARC Calibration |
| Measurement: | automatic |
| Operating Temperature: | -25~ 50 |
| Display Type: | Analog and Digital |
Quick Details
Specifications
China fiber Fusion Splicer with good quality TCW-605E
Features
Specification
Features
- Not only a Fusion Splicer, but also your partner who make your job easy and happy
- 5.0 inch TFT color LCD monitor with anti-reflective coating
- the advanced core to core fiber profile alignment system(PAS)
- ARC Calibration FREE system (ARC Calibration sub-menu included in the Menu too, can do the ARC Calibration by Manual when necessary)
- X/Y axes was displayed or both X and Y were displayed simultaneously, Magnification up to 300 times
- 8 seconds splicing time, 30 seconds Heat-Shrinking
- Battery capacity was display in real time, precisely
- Built-in high capacity battery, support 200 cycles(splicing /tube heating), to meet one days' work
- Long Electrode Lifetime, up to 4000 times
- the new wind-cover design, enhance the ability to prevent the dust & wind, Max. Wind velocity of 15m/s
- Two Splicing modes: auto, manual
- Built-in super high-brightness LED supply convenience for night work
- Auto calculate splicing loss based dual camera cladding axis alignment data
- Small bulk and light weight, only 2.0kg include battery
- 4000 results Storage
- 2.0 USB data interface
- Compliance with IPx5 standard protection
- Thermal compartment of turned on manual
- the software allows the fulfillment of all the functions of the TCW-605E Fusion Splicer, and its updating is Guaranteed for a period of 5 years
- One year warranty( TWO years or THREE years warranty is available for special order)

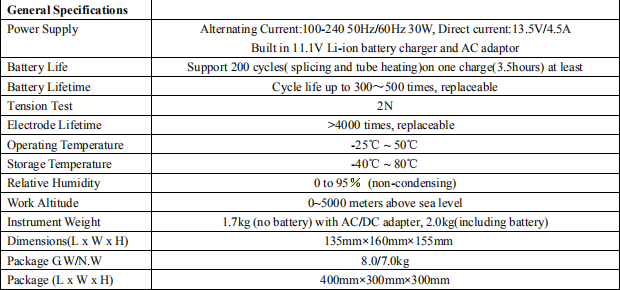

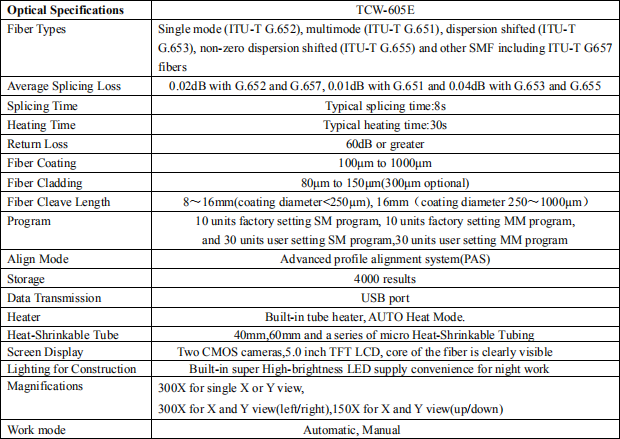

Specification
