| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Brand Name: | SHANMU |
| Motor Type: | AC Motor |
| Condition: | New |
| Certification: | ISO9001 |
| Weight: | 11000KGS |
| Dimension(L*W*H): | 3050x1640x2350mm |
| Model Number: | PYB900 |
| Capacity(t/h): | 50-90 |
| Power(W): | 55 |
| Application: | Secondary crusher |
| Type: | Cone Crusher |
| Motor brand: | ZHONGTAI |
| Bearing: | ZWZ |
Quick Details
Specifications

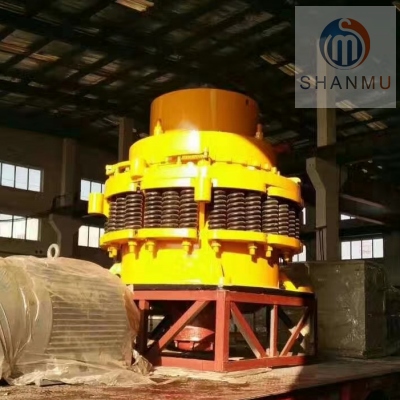

Spring CONE CRUSHER
Cone crusher is a modern high-performance cone crusher designed, researched and developed by our company on the basis of introducing and absorbing foreign technologies, and based on the customer requirements and the lamination crushing principles
Features
I. Multiple optional cavity types, applicable to multiple working conditions.
II. Long working life of durable-wear parts, and low investment in long term.
III. High-efficiency with three types, each type of crusher is equipped with multiple cavities, so that it is suitable for the intermediate crushing and fine crushing operation requirements of materials.
TECHNICAL DATA
SPECIFICATIONS
MODEL: PYB900
FMAX. FEEDING SIZE: 115mm
CAPACITY: 50-90TPH
DISCHARGE RANGE: 15-50MM
DIMENSION: 2692MM*1640*2350MM
MOTOR: 55KW (WN BRAND)
MATERIAL
FRAME: Q235A
FEED PLATE: HIGH MANGANESE STEEL
BOWL LINER & MANTLE: HIGH CHROMIUM CAST IRON
TOGGLE PLATE: CASTING STEEL
SIDE PLATE: HIGH MANGANESE STEEL
SPRING: SPRING STEEL
BEARING: LYC
