2.4 inch TFT display screen, concise user interface and menu hint design.

Main interface status bar, date/clock indication, fairly obvious alarm host status.

Built-in powerful performance CPU master based on 32-bit Cortex-M3 core.

Based on uCOS - III operating system with multitasking design, great user operation experience.

WiFi/GSM/3G/GPRS intranet alarm system, support different alarm channels, like APP push/SMS/voice monitoring/intranet center etc. To ensure the alarm performance stable and reliable.

Support SMS arm/disarm and voice arm/disarm

Support up to 88 learning/storage location for remote control, RFID cards and wireless detector.

Support many defense zones, such as gate, SOS, bedroom, window, balcony, perimeter, smoke, gas, carbon monoxide, water leaking, etc.

Support the main power malfunction, backup power shortage, tamper alarm and other extended alarm.

Support entry/exit zone, indoor zone, perimeter zone, 24-hour zone..etc.

up to 5 groups preset alarm phone numbers, SMS on/off and dial on/off can be set respectively.

Support external wireless siren.

Support timing arm and disarm

Can store and inquire daily operation records and alarm records.

GSM network clock synchronization, to ensure accurate clock, and support country time zone setting.

Support multi-language menu display, voice prompts and alarm SMS setting.

Can record 10/20 seconds voice message and alarm voice.

Telephone function, support 5 groups re-dial number.

User-friendly APP operation experience and user interface.

Push Arm/disarm message to APP

Support APP remote arm/disarm, parameter setting and accessory management.

Online GPRS to obtain equipment status, automatic alarm when offline.

Reserved remote GPRS TCP / UDP protocol channel, compatible with multiple alarm center networking protocol to facilitate network alarm.

Technology parameter:

Color	White, Black optional
Working network	WiFi+3G network
Wireless frequency	433MHZ (315/868MHZ optional)
Input voltage	DC5V2A(micro USB)
Standby current	<40mA
Alarm current	<450mA
Alarm Sound(Siren)	60~70dB at 3m
Support wireless sensors	EV1527/300K or 2262/1.5-4.7M
Wireless distance	70~80m open area
Working Temperature	-10~45 degree
Working Humidity	<=90%
Storage temperature range	20-60C
Standard Kit Gross Weight	1.5 kg

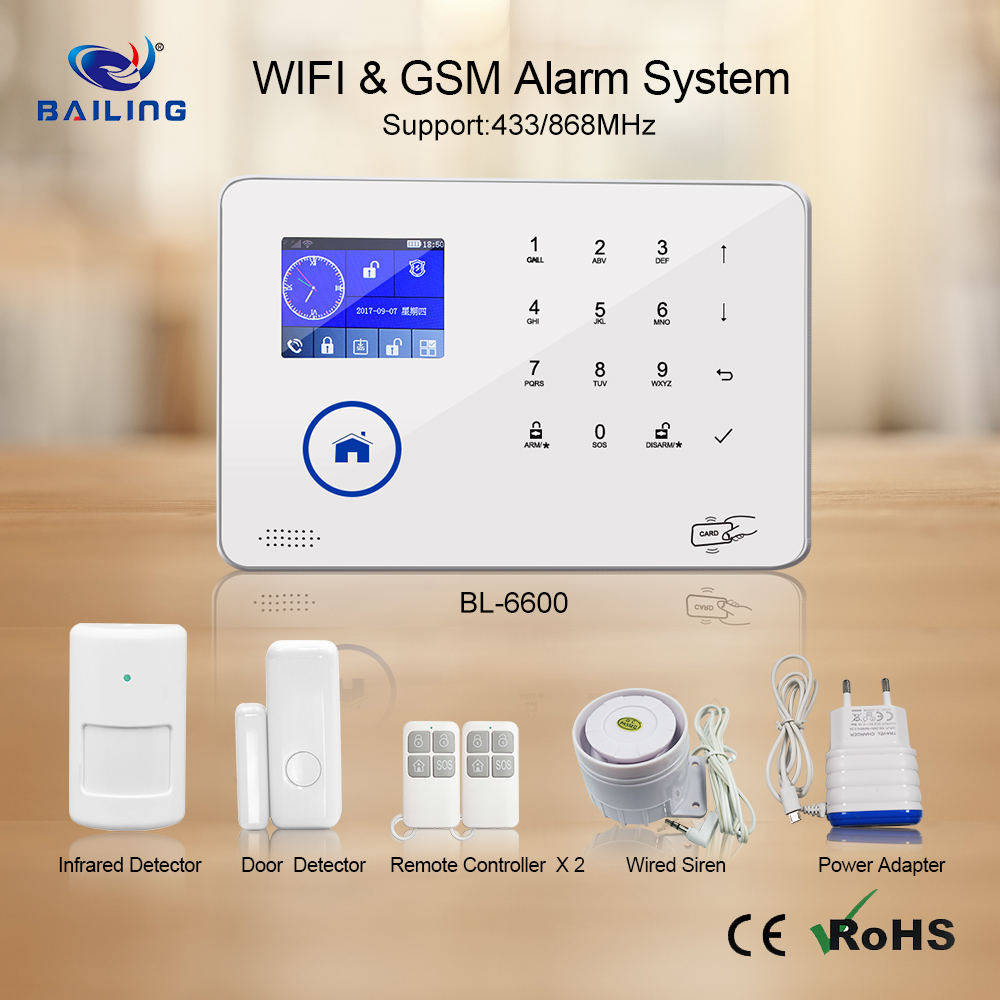

Standard configuration	1X BL-6600 alarm panel  1X wireless door/window sensor  1X wireless PIR sensor  2X wireless remote controllers 1X wired siren  1X power adapter
