Product Main

Quick Details

Usage: home
Brand Name: Bailing
color: white /black
GSM Frequency: 850/900/1800/1900MHz
Power: DC5V2A(mico USB)
Model Number: BL-6600
Place of Origin: China (Mainland)
Standby current: <40mA
Wireless distance: 30m open area
Working Humidity: <=90% rh
warranty: 1 year
color: black /white

Specifications

Product Features



1. Multi-language words menu WiFi + 3G/GSM+GPRS+SMS home alarm system


2.Android + IOS APP Application easily control, Easy to give authorization.


3.Free charges through WiFi network. When there is no WiFi, the host will work with GPRS network. If there is neither WiFi nor GPRS network,then the alarm host will send alarm SMS and make alarm call.



4.Work with IP camera, the IP camera APP embeds in the host APP.
Users can monitor what happen at home wherever and whenever.


5.Workable with 100pcs smart socket/wireless relay output to control simple home appliances. Relay outputs name and sockets name can be revised by users


6. 8 scene Settings and 20 ifttt settings
Advanced home automation functions for perfect smart home life.


7.Workable with RFID wireless keypad


8.10-20s Leaving message remotely in APP. Alarm speed is low 10s so that can inform users promptly.


9.Information push promptly when AC power lost or recovered or detectors in low voltage


10.Smart zone function: self-checking windows/doors status and chime reminds if door open


11.30 wireless defense zones, Zone names can be revised by users


12.Support " ding dong"  Doorbell Function


13.Can store 6 alarm call phone No.+2 alarm SMS phone No.


14.Support Three zone types: 24H line, 1st line, 2st line.


15.Arm/alarm Delay for each defense zone. Timed arm/disarm function


16.Built-in rechargeable battery


17.the host support Monitoring and Two-way intercom Function



18. Support External wireless siren(internal wireless siren optional)



19.Built-in powerful performance MCU master based on 32-bit Cortex-M3 core.

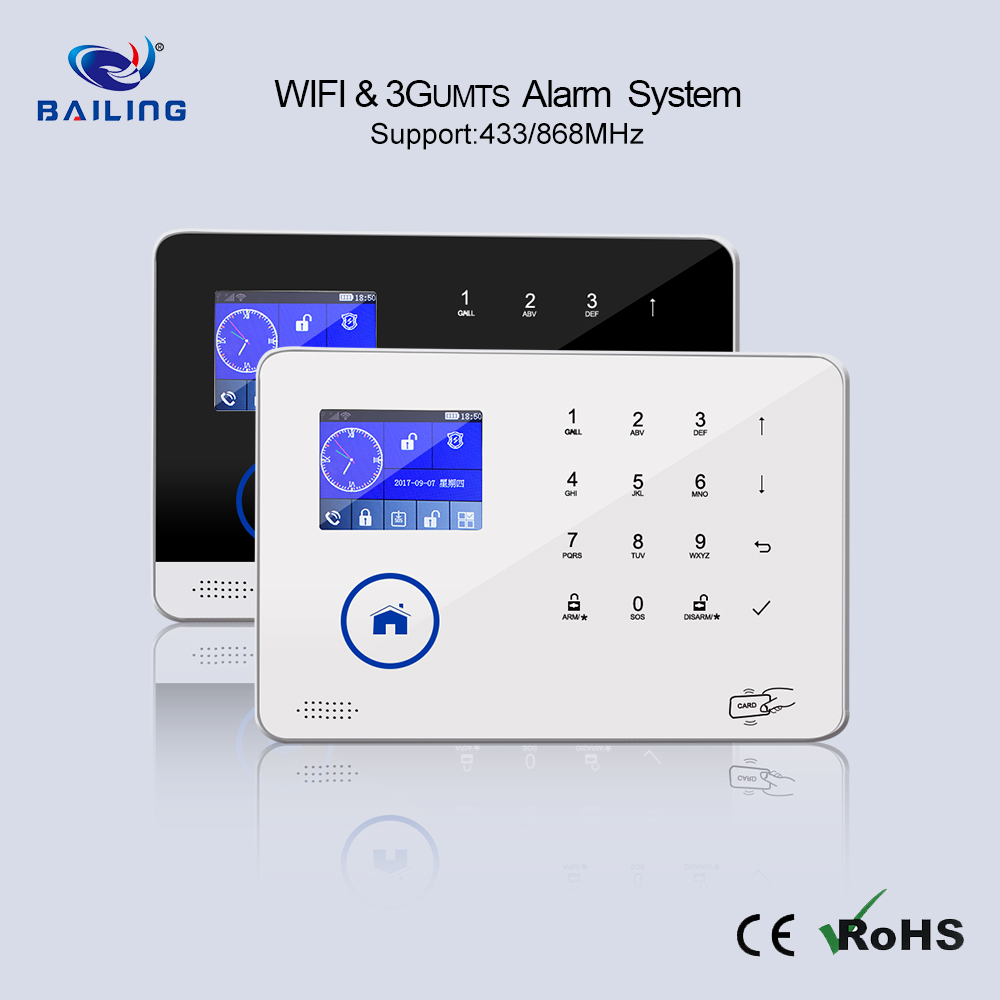

2019 Popular Smart Smoke Anti Fire SMS 110DB Siren Alert WiFi GSM House alarm system

Parameter:



Product dimension:

185mm*125mm*14.7mm(LHT)

Input voltage

DC5V2A(mico USB)

Standby current

<40mA

Alarm current

<450 mA

Alarm Sound(Siren)

60~70dB at 3m

3G WCDM UMTS Frequency

2100/900MHZ&850/1900MHZ

GSM:850/900/1800/1900MHz

Wireless transmitting frequency

433Mhz,315Mhz,868Mhz

Support wireless sensors

EV1527/300K or 2262/1.5-4.7M

Wireless Alarm Sound(Siren)

433MHZ 60~70dB at 3m

Wireless distance

30m open area

Working Temperature

-10 Degree to 45 Degree

Working Humidity

<=90% rh

Storage temperature range

20-60C

Color Box Dimension



Camera body Size



Standard Kit Gross Weight

1.5 kg

Defense Zones

30 wireless zone

Support language

Chinese/English is standard. Other language can be customized per the order
