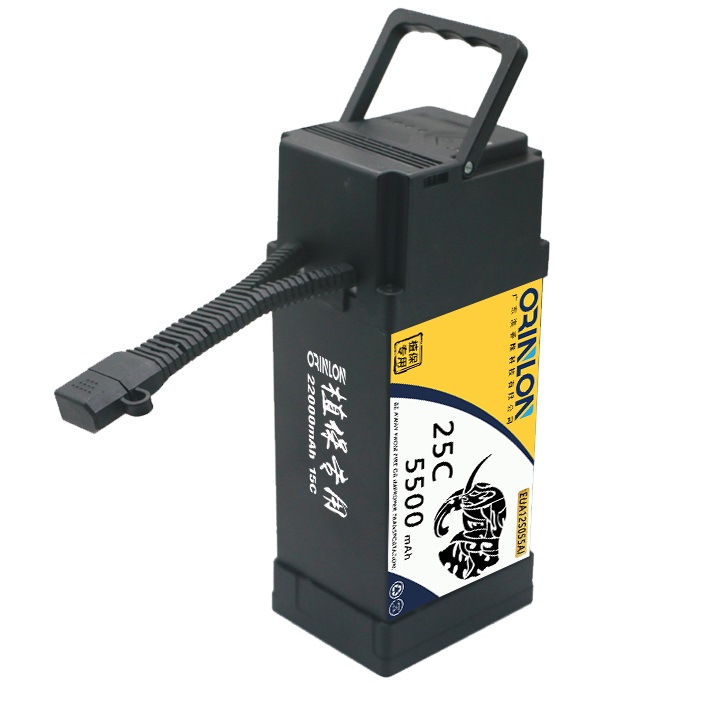

| Application: | Drone |
|---|---|
| Nominal Capacity: | 3.7v |
| Voltage: | 25.20V |
| Type: | Li-Ion |
| Brand Name: | Jovlong |
| Components: | |
| Model Number: | EBUA06S10A |
| Place of Origin: | China (Mainland) |
| Application: | drone |
| Output Voltage: | 25.20V |
| Output Current: | 5C-8C |
| Battery-Series: | 6S |
| Capacity: | 12000Mah |
| Voltage-Accuracy: | 1% |
Quick Details
Specifications
to make safer battery, to make the battery safer.
EUA XX S XXX AI series is intelligent lithium-ion polymer battery with built-in BMS for UAV, the BMS is compatible with all the communication protocol in the market including SMBus/UART/CAN/SPI/RS485/RS232. and there is PC smart tool and software. The BMS is not only for inspecting and forecasting the lithium and polymer battery capacity of 2s, 3s, 4s and 16s max, but also for monitoring the cells' balance states and key data, to avoid overcharging, over discharging, short circuit or over current. The user can read the Data Flash from the PC and amend the controlling parameters of the battery based on the application, then to record the discharge data. The battery is applied to new-energy vehicles, cargo van, golf cart, electric tool, portable medical equipment, autonomous ships, UAV, intelligent robot and UPS etc.
There shall be no such defect as flaw, crack, rust, leakage, which may adversely affect commercial value of battery.
2. Environmental test condition.
unless otherwise specified, all test stated in this product specification are conduct at below test condition.
Temperature: 20C~25C
Relative Humidity: 60%25% R.H.
3. Cycle Life.
Continuous charge and discharge for 300 cycles, the capacity will be measured after the 300th cycle 80% of initial capacity
4. Discharge and Charge.
Charging cut-off voltage 4.20V, discharge cut-off voltage 3.00V
EUA XX S XXX AI series is intelligent lithium-ion polymer battery with built-in BMS for UAV, the BMS is compatible with all the communication protocol in the market including SMBus/UART/CAN/SPI/RS485/RS232. and there is PC smart tool and software. The BMS is not only for inspecting and forecasting the lithium and polymer battery capacity of 2s, 3s, 4s and 16s max, but also for monitoring the cells' balance states and key data, to avoid overcharging, over discharging, short circuit or over current. The user can read the Data Flash from the PC and amend the controlling parameters of the battery based on the application, then to record the discharge data. The battery is applied to new-energy vehicles, cargo van, golf cart, electric tool, portable medical equipment, autonomous ships, UAV, intelligent robot and UPS etc.
There shall be no such defect as flaw, crack, rust, leakage, which may adversely affect commercial value of battery.
2. Environmental test condition.
unless otherwise specified, all test stated in this product specification are conduct at below test condition.
Temperature: 20C~25C
Relative Humidity: 60%25% R.H.
3. Cycle Life.
Continuous charge and discharge for 300 cycles, the capacity will be measured after the 300th cycle 80% of initial capacity
4. Discharge and Charge.
Charging cut-off voltage 4.20V, discharge cut-off voltage 3.00V
| Model | EBUA06S10A | EBUA07S15A | EBUA12S17A | EBUA13S20A | EBUA14S25A | EBUA18S30A |
| Input-voltage | 170-250V | 170-250V | 170-250V | 170-250V | 170-250V | 170-250V |
| Output-voltage | 25.20V | 29.40V | 50.40V | 54.60V | 58.80V | 75.60V |
| Output-current | 10A | 15A | 17A | 20A | 25A | 30A |
| Output power | 300W | 500W | 1000W | 1200W | 1600W | 2400W |
| Battery series | 6S | 7S | 12S | 13S | 14S | 18S |
| Charging mode | CC/CV | CC/CV | CC/CV | CC/CV | CC/CV | CC/CV |
| Accuracy | 1% | 1% | 1% | 1% | 1% | 1% |
| Balanced mode | Passive/active | Passive/active | Passive/active | Passive/active | Passive/active | Passive/active |
| Balance current | 2A | 3A | 3A | 3A | 3A | 3A |
| OTP | Yes | Yes | Yes | Yes | Yes | Yes |
| OVP | Yes | Yes | Yes | Yes | Yes | Yes |
| OCP | Yes | Yes | Yes | Yes | Yes | Yes |
| Out-pin | XT150 | XT150 | AS150 | AS150 | AS150 | AS150 |
| Out-line | AWG18 | AWG16 | AWG12 | AWG12 | AWG10 | AWG10 |
| Stardard | IEC60950/IEC55022A | |||||
