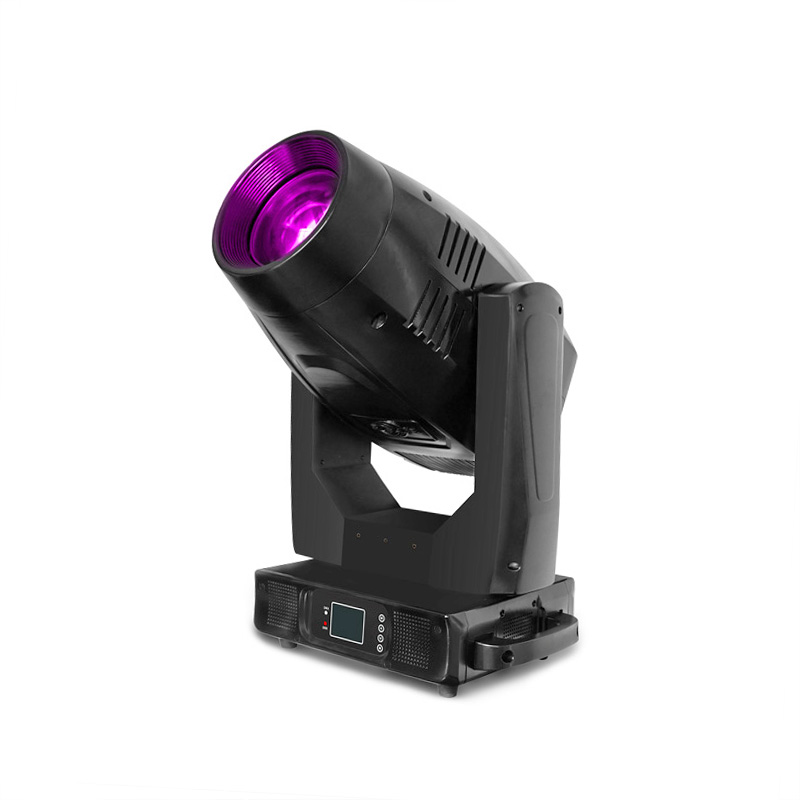

Type: | Moving Head Lights |
---|---|
Brand Name: | B&D LIGHTING |
Certification: | CE,RoHS |
Working Lifetime(Hour): | 20000 |
Lamp Power(W): | 500 |
Input Voltage(V): | 100-240 |
Place of Origin: | China (Mainland) |
Base Type: | AR70 |
Emitting Color: | RGB |
IP Rating: | IP44 |
Color Temperature(CCT): | Warm White |
CRI (Ra>): | 76 |
Light Source: | Incandescent Bulbs |
Quick Details
Specifications
COLORS
CMY color mixing +CTO linear(2700K-8000K)
1 Color wheel: 5 static colors + open
Split colors, color change with bi-rolling dreamy rainbow effect
GOBOS
1 Rotating gobo wheel: 6 interchangeable gobos + open
1 Static gobo wheel: 7 gobos + open
1 static effect gobo: 1 corrugated gobo, can be superimposed with other gobos
and make dynamic effects, such as: moving flame, corrugated water, etc.
FEATURES
Control: DMX512 control mode/stand-alone/master-slave/sound control/Auto mode
Rotating prism: 4-facet prism
Focus: automatic focus,0-100% focus
Iris:5-100% linear iris
Shutter and Strobe: electronic strobe, variable from 1-25Hz or random
Dimming: 0-100% linear dimming
Frost: 0-100% linear frost
Zoom beam angle: 6- 60linear zoom
Animation wheel: special dynamic flame or water effect
Framing system: 4 plates cut,with the ability to create different shapes.
Framing rotation of 90
DISPLAY
LCD colorful display,touch screen and 4 menu buttons
Battery operated for fast addressing and setting
SOFTWARE
Built-in programs are available
Upgrades: fast and convenient using,uploader over DMX, remote reset DMX address,fixture reset:sound mode conversion,displaying usage time
OTHERS
RDM compatible,bidirectional control data transmission, remote upgrade
DMX in/Out: 3-pin & 5-pin XLR
POWER
100-240V,AC 50/60HZ
800W power consumption
DIMENSIONS and WEIGHT
Product Dimension: 46.4x30.4x78.4cm
Net Weight: 37.5kgs
Packing: 2pcs fixtures in 1 flightcase and with lamp hook
Flightcase:( L)78cm(W)52cm(H)100cm
Gross Weight: 100kgs
