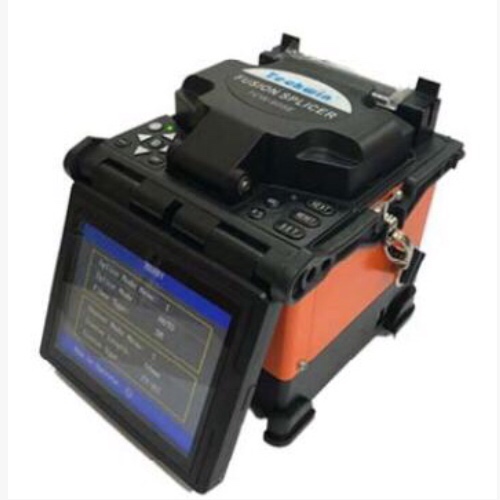

Techwin fusion splicer machine with ISO certification Top Quality TCW-605E

Feature
1. Not only a Fusion Splicer, but also your partner who make your job easy and happy
2. 5.0 inch TFT color LCD monitor with anti-reflective coating
3. the advanced core to core fiber profile alignment system(PAS)
4. ARC Calibration FREE system

   ARC Calibration sub-menu included in the Menu too, can do the ARC Calibration by Manual when necessary
5. X/Y axes was displayed or both X and Y were displayed simultaneously, Magnification up to 300 times
6. 8 seconds splicing time, 30 seconds Heat-Shrinking
7. Battery capacity was display in real time, precisely
8. Built-in high capacity battery, support 200 cycles(splicing /tube heating), to meet one days' work
9. Long Electrode Lifetime, up to 4000 times
10.the new wind-cover design, enhance the ability to prevent the dust & wind, Max. Wind velocity of 15m/s
11.Two Splicing modes: auto, manual
12.Built-in super high-brightness LED supply convenience for night work
13.Auto calculate splicing loss based dual camera cladding axis alignment data
14.Small bulk and light weight, only 2.0kg include battery
15.4000 results Storage
16.2.0 USB data interface
17.Compliance with IPx5 standard protection
18.Thermal compartment of turned on manual
19.the software allows the fulfillment of all the functions of the TCW-605E Fusion Splicer, and its updating is

    guaranteed for a period of 5 years
20.One year warranty( TWO years or THREE years warranty is available for special order)

for more details,please contact us freely.
