| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | ISO9001 |
| Brand Name: | Aistar |
| Condition: | New |
| Dimension(L*W*H): | 210*120*80cm |
| Weight: | 220kg |
| Power(W): | 1.5kw |
| Voltage: | 220V |
Quick Details
Specifications
Specification

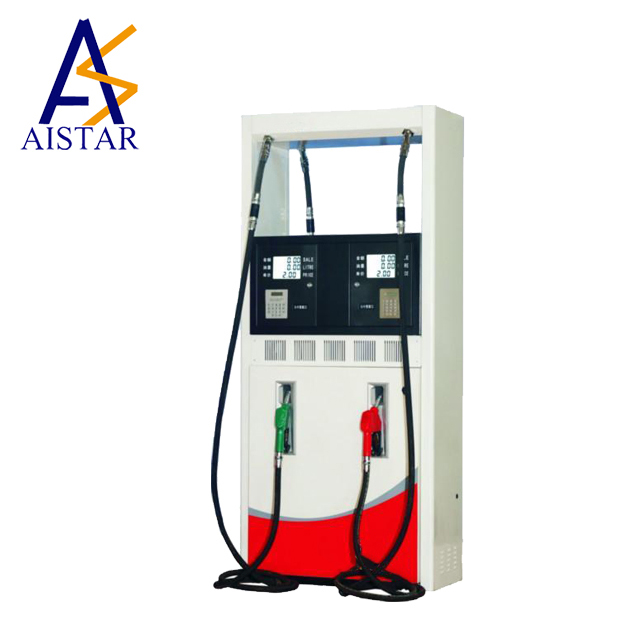

MPD fuel dispenser for 4 products, 8 nozzle, both suction and submersible is availble
HydraulicsPumping unit: High Performance Gear pumping unit
Motor:400 V, 3 Phase / 220V, 1 Phase / 110V, 1 Phase Motors
Meter:4-Pistion displacement flow meter
Electronics Calculator:Bluesky LT-C MPD controller
Display:LCD backlit
Interfaces:Mechanical
Hose column/Powder coated steel/Valves
Two stage electronic solenoid valve
Hydraulics cabinet door
Doors of hydraulic compartment Powder coated steel
Calculator head: Polycarbonate door
Nozzles:ZVA with Anti Kink Sleeves for hoses I 16 mm Spouts for unleaded petrol I
19 mm for diesel I 21 mm for vapour recovery I 25 mm for Diesel HF/UHF
Hose:3/4 inch, UL standard for option
Hose management:External hose (hose retraction optional)
Characteristics & Performance
Temperature range:-20oC to +55oC (-40oC optional)
Meter flow rate:from 70L/min up to 120L/min as an option
Power supply:230V (+10%; -15%), 50Hz 2Hz (400V 3phase also supplied)
Robust and reliable but designed to attract customers, Pioneer provides leading edge technology
with the flexibility to suit your needs.
Motor:400 V, 3 Phase / 220V, 1 Phase / 110V, 1 Phase Motors
Meter:4-Pistion displacement flow meter
Electronics Calculator:Bluesky LT-C MPD controller
Display:LCD backlit
Interfaces:Mechanical
Hose column/Powder coated steel/Valves
Two stage electronic solenoid valve
Hydraulics cabinet door
Doors of hydraulic compartment Powder coated steel
Calculator head: Polycarbonate door
Nozzles:ZVA with Anti Kink Sleeves for hoses I 16 mm Spouts for unleaded petrol I
19 mm for diesel I 21 mm for vapour recovery I 25 mm for Diesel HF/UHF
Hose:3/4 inch, UL standard for option
Hose management:External hose (hose retraction optional)
Characteristics & Performance
Temperature range:-20oC to +55oC (-40oC optional)
Meter flow rate:from 70L/min up to 120L/min as an option
Power supply:230V (+10%; -15%), 50Hz 2Hz (400V 3phase also supplied)
Robust and reliable but designed to attract customers, Pioneer provides leading edge technology
with the flexibility to suit your needs.
