Product Main

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Condition: New
Brand Name: Aistar
Weight: 150kg
color: customized

Specifications

Product Application

the machine takes advantage of high accuracy, convenient operation, and easy repair, and it also bears abroad functions, such as fueling as preset data, checking data and accumulative amount of fuel and sum of sales. the machine is widely used in a gas station for vehicles, suitable for gasoline, diesel oil, kerosene, and various light fuel.(Equipped with communication ports, monitor and control fuel dispenser condition )

Main Technical  parameter


Model Range
ZC-LPG1112
1 separator, 1 flow meter, 1 nozzle, 1 display
ZC-LPG1222
1 separator, 2 flow meter, 2 nozzle, 2 display


Motor
Voltage
110V/220V/380V (50/60Hz)
Noise
80dB(A class)
Ex-proof Signal
ExdmbIIAT3


Pump
Bennett type
Aluminum,15kgs,5~50L/min
Tatsuno type
Aluminum,17.5kgs,5~45L/min Pump
Tokheim type
Castiron,37kgs,5~40L/min
Subm. Type
Extermal oil pump, parameters according to customer
Ambient temperature
-25~+55
Suction Distance
6m ( Vertical ),50 m ( horizontal )
Accuracy
0.30%
Repeating tolerance
0.15%
Unit price range
0.01~999.99
Single volume range
0.01~999999.99
Accumulative volume
0.01~9999999999.99
Nozzle
Automatic shut-off type
Machine shape
Customized are acceptable(Include Logo)
Warranty period
One-year warranty on the machine and provide uninterrupted technical support
Main Features

Modular high hose design for easy upgrade | highly accurate meter | pump | filtering system to ensure clean fuel and dispenser longevity | totalizer | 3 in 1 LCD display board | Metal keyboard |White backlight display | Breakaway | Swivel || Emergency Stop button | Integrated receipt printer | Electronic calibration | LED rolling display |

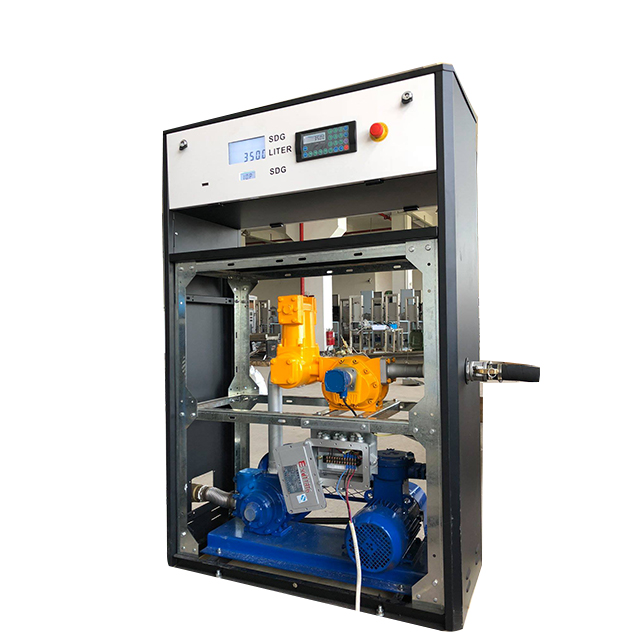

Lpg dispenser usedf for LPG station
