After-sales Service Provided: | Engineers available to service machinery overseas |
---|---|
Warranty: | 1 Year |
Certification: | CE, ISO, SGS, BV |
Brand Name: | Yuneng |
Condition: | New |
Dimension(L*W*H): | As per capacity |
Weight: | 500Kg~4000Kg |
Power(W): | 500Kg~4000Kg |
Voltage: | 380V or as per request |
Model Number: | ZJA1.8KY, ZJA3KY, ZJA3KY, ZJA9KY, ZJA12KY, ZJA18KY |
Place of Origin: | China (Mainland) |
Function: | Transformer Oil Purifier Equipment |
Nominal flow capacity: | 30L/min~300L/min |
Raw material: | Carbon Steel |
Heating method: | Indirect heating |
Oil pump: | Centrifugal oil pump, better than gear pump |
Condenser: | Each for the vacuum pump and roots pump |
Filter: | High quality to 0.5 micron |
Appearance: | Roots style |
Limit vacuity: | Less than 5Pa |
Working vacuity: | Less than 80Pa |
Quick Details
Specifications

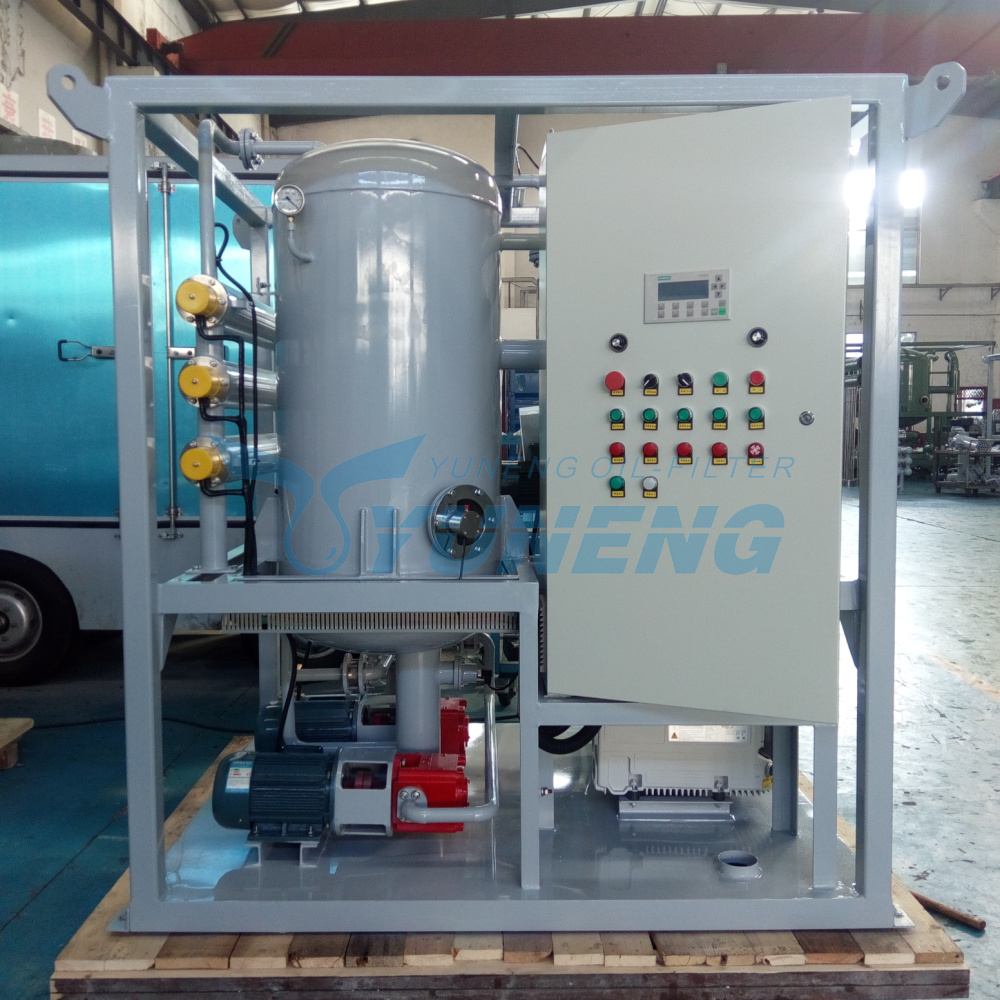

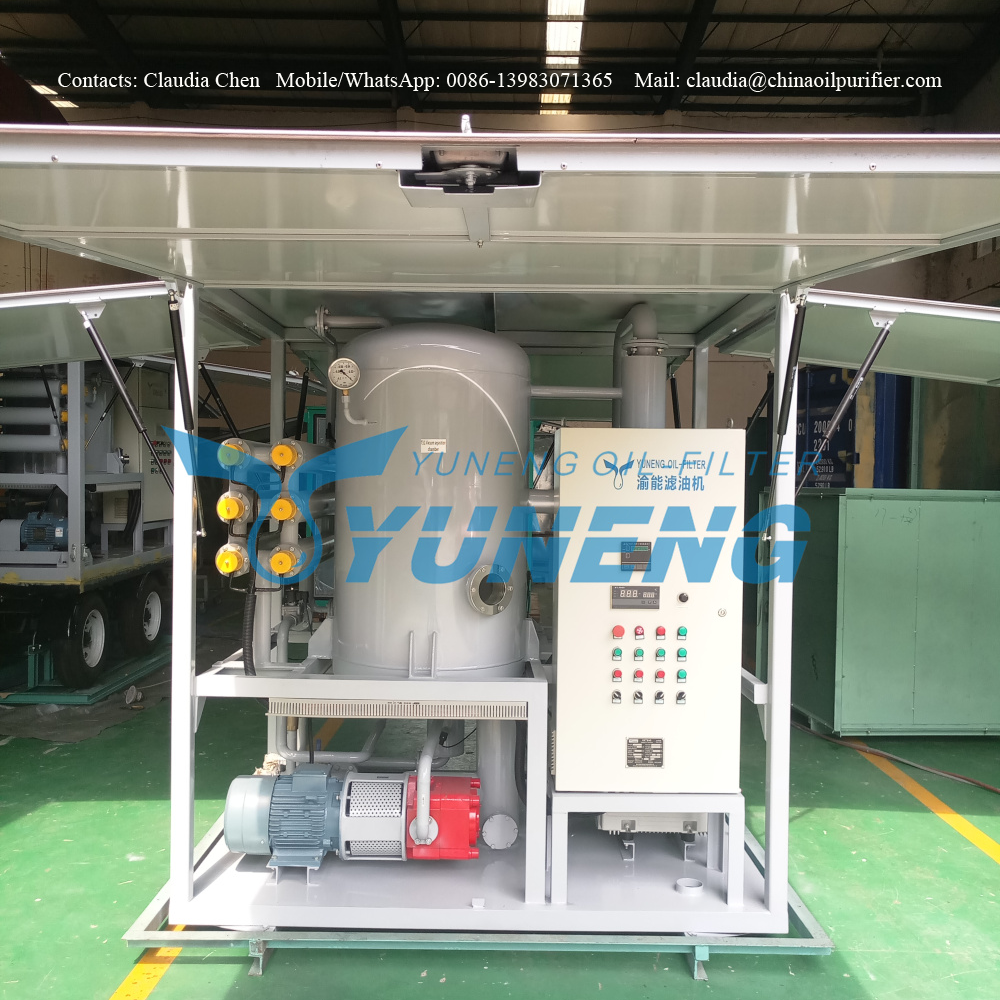

Including Fixed Close Type and Mobile Trailer Mounted Type Electric Transformer Oil Purifier Equipment enclosed in a canopy and mounted on a trailer can be easily moved to any work point. It is especially suitable for purifying located in fields. Mobile transformer oil purification plant mounted on trailer can be carried out on-road and off-road. Meanwhile, it also works with other electrical insulating oil such as cable, circuit breakers, capacitor, etc.
by absorbing the advanced technology of similar products at home and abroad, our Including Fixed Close Type and Mobile Trailer Mounted Type Electric Transformer Oil Purifier Equipment Has excellent performance both in design and cost. the oil treatment process and overall performance are in the leading position in China with its advantages of high working vacuum, fast oil filtration speed and oil quality protection. It is mainly used for purify the oil used in 500KV electricity. this series may include two types, fixed close type and mobile trailer mounted type, suitable for oil treatment, transformer vacuum oilling and hot oil circulation draying during big transformers installation and maintenance.
1. Used in the electric power system (66kV~500KV).
2. Features include high working vacuum, fast oil filtering and sound oil protection.
3. Suitable for oil treatment, vacuum oil injection and cyclic hot oil drying in the installation and maintenance of large capacity transformers.
Other Products:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Item | Name of Parameter | Unit | Model | ||||||
ZJA1.8KY (1800L/h) |
ZJA3KY (3000L/h) |
ZJA6KY (6000L/h) |
ZJA9KY (9000L/h) |
ZJA12KY (12000L/h) |
ZJA18KY (18000L/h) | ||||
Technical parameter of the equipment | Nominal flow capacity | L/min | 30 | 50 | 100 | 150 | 200 | 300 | |
Limit vacuity | PA | 5 | |||||||
Working vacuity | PA | 80 | |||||||
Working pressure | MPa | 0.5 | |||||||
Working temperature of oil | 45~65 | ||||||||
Working power | (380V-50Hz) 3Phase 4 Wires, or as per buyer's option | ||||||||
Total electric power | KW | 16 | 36 | 70 | 100 | 150 | 200 | ||
Pipe dimeter of oil outlet/inlet | DN | 20/20 | 25/25 | 32/32 | 40/40 | 50/50 | 65/65 | ||
Size | Length | cm | 160 | 180 | 220 | 250 | 280 | 345 | |
Width | cm | 125 | 145 | 160 | 195 | 215 | 260 | ||
Height | cm | 200 | 220 | 245 | 270 | 300 | 300 | ||
Weight | Kg | 500 | 700 | 1460 | 1800 | 2400 | 4000 | ||
Oil treatment index | Oil breakdown voltage | KV | 70 (Spherical Electrodes) | ||||||
Water content | PPM | 5 | |||||||
Air content | % | 0.3 | |||||||
Filtering accuracy | m | 1 |
