| Gender: | Male |
|---|---|
| Type: | BNC |
| Brand Name: | FUTAI |
| Color: | nickel |
| Model Number: | FT-Connector-178B |
| Place of Origin: | China (Mainland) |
| material: | brass |

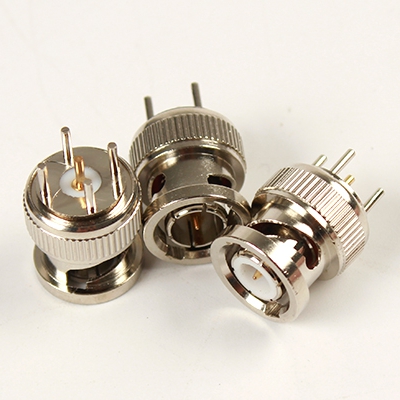

| product name: | bnc male connector |
| plating: | nickel |
| sample: | welcome ask sample for testing |
Quick Details
Specifications
Specifications:
Model |
FT-Connector-178B | |
Major Technical Characteristics | ||
Type |
BNC-C-JY3-178B | |
Impedance |
50 | |
Frequency Range |
DC~4GHz | |
Center conductor retention force |
0.57 N | |
Insertion Loss |
0.20dB/3GHz | |
Insulation resistance |
5000M | |
Voltage Standing Wave Ratio |
Straight 1.22/3GHz | |
Right angle 1.30/3GHz | ||
Durability(mating) |
500(cycles) | |
Cable |
RG1 | |
Material & Plating | ||
Body |
Brass |
Nickle plated |
Pin contact |
Brass |
Gold plated |
Resilient contact |
Tin bronze |
Nickel plated |
Insulator |
PTFE | |
Crimp ferrule |
Copper alloy |
Nickel or gold plated |
O-ring sealing |
6146 silicone rubber | |
We can provide other materials and plating specifications according to customer's Requirements.
