| Gender: | Male |
|---|---|
| Type: | SMA |
| Brand Name: | futai |
| Color: | nickel |
| Model Number: | FT-Connector-021Rubber |
| Place of Origin: | China (Mainland) |
| pins: | 1P |
| material: | copper |
| product name: | sma antenna connector |
| plating: | black |
| sample: | welcome ask sample for testing |
Quick Details
Specifications

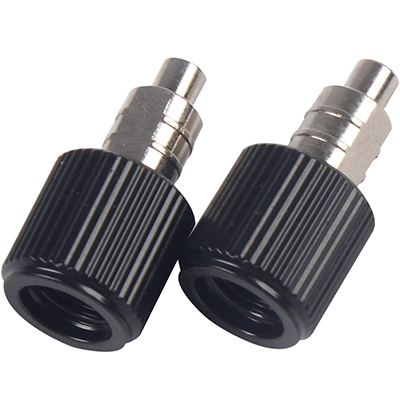

RF Coaxial SMA Antenna Connector
Specifications:
Model |
FT-Connector-021Rubber | |
Major Technical Characteristics | ||
Type |
SMA-C-KY1.5-021Rubber | |
Impedance |
50 | |
Frequency Range |
DC~12.4GHz(Semi-Rigid Cable DC-18GHz) | |
Center conductor retention force |
0.28 N | |
Insertion Loss |
0.15dB/6GHz | |
Voltage Standing Wave Ratio |
Straight Flexible Cable 1.10+0.02f Semi-Rigid Cable1.07+0.018f | |
Right angle Flexible Cable 1.20+0.03f Semi-Rigid Cable1.17+0.02f | ||
Durability(mating) |
500(cycles) | |
Cable |
for Rubber ANTENNA | |
Material & Plating | ||
Body |
Brass |
Gold plated |
Pin contact |
Brass |
Gold plated |
Socket contact |
Beryllium-copper Customized) |
Gold plated |
Resilient contact |
Beryllium-copper |
Gold plated |
Insulator |
PTFE | |
Crimp ferrule |
Copper alloy |
Nickel or gold plated |
O-ring sealing |
6146 silicone rubber | |
