| Warranty: | 1 year |
|---|---|
| Certification: | CE |
| Brand Name: | RYAN |
| Type: | oil heater |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Power(W): | 10-1400kw |
| Voltage: | 380v |
| Weight: | 2500-5000kg |
| Dimension(L*W*H): | customized |
| Model Number: | GYD |
| Place of Origin: | China (Mainland) |
| Power Source: | Electric |
| Net Heating Capacities: | 10-1,400 KW(8-1200 Mcal/h) |
| Energy Source: | Electricity (electrical heating) |
| Structure: | Welding |
| Heat Transfer Medium: | Thermal Oil |
| Thermal Efficiency: | More than 95% |
| Pump: | Horizontal Centrifugal Pump |
Quick Details
Specifications
General Description

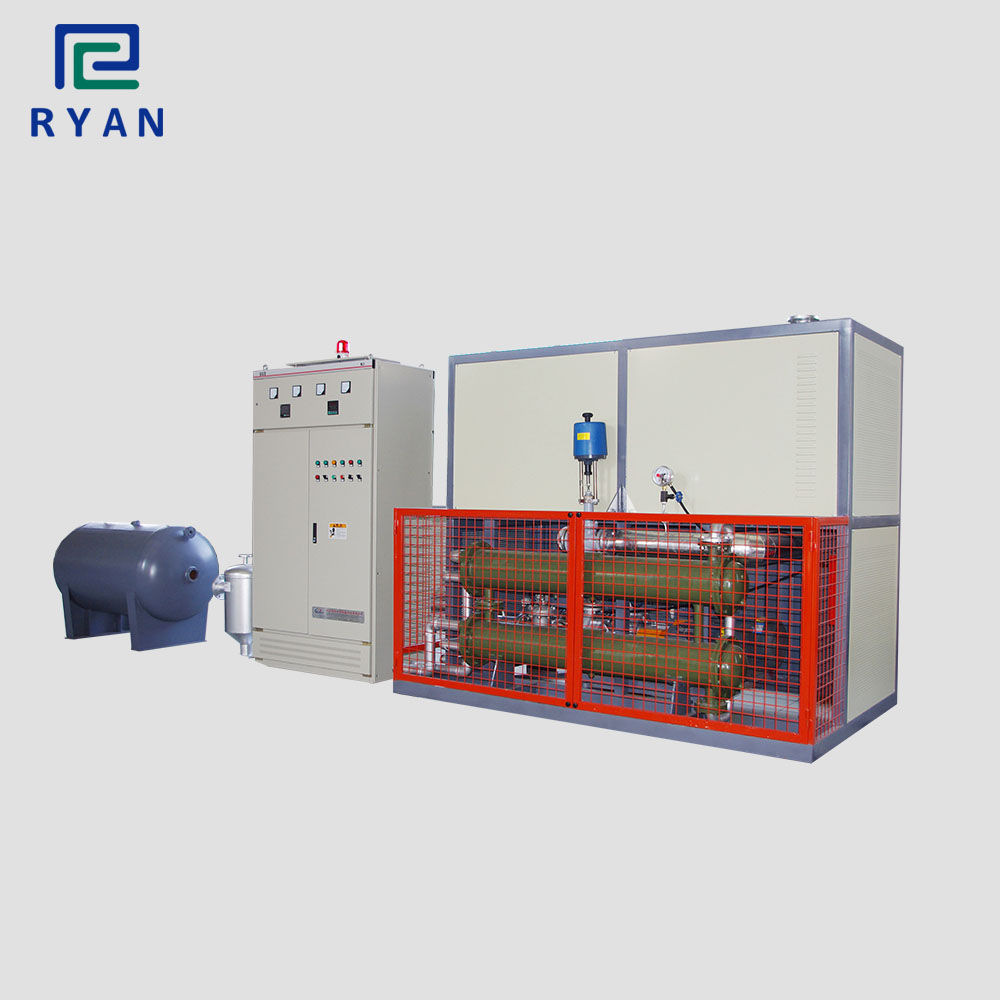

Electric heating thermal oil heater consists of the main parts (including electric heater host, high-temperature oil pump and Y-shape filter) expansion tank, control cabinet and piping. All the components of the system must work together in harmony for proper performance. Electricity as energy source, covert electric energy into heat energy through flanged immersion heater. The organic heat fluid (hot oil) as heat transfer medium is circulated in the whole system pushed by oil pump. and then the using-heat equipment takes heat from the hot oil, which returns back to the boiler after heat exchange. So it is an organic heat circulation system.
Working Principle
It is a type of indirect heating in which thermal oil as a liquid phase heat transfer medium is heated and circulated to one or more heat energy users within a closed loop system. The electric heating tube is directly inserted into the thermal oil for direct heating. A circulating pump is used to create liquid-phase circulation of heat using equipment, the heat conduction oil will return to the heater via the circulating pump, again to absorb heat, and transfer the heat to the heat using equipment. this process is repeated again and again, realizing continuous transfer of heat. As a result, the temperature of objects being heated rises, and heating requirements are fulfilled.
Advantages of thermal oil heater
Electric heating thermal oil heater consists of the main parts (including electric heater host, high-temperature oil pump and Y-shape filter) expansion tank, control cabinet and piping. All the components of the system must work together in harmony for proper performance. Electricity as energy source, covert electric energy into heat energy through flanged immersion heater. The organic heat fluid (hot oil) as heat transfer medium is circulated in the whole system pushed by oil pump. and then the using-heat equipment takes heat from the hot oil, which returns back to the boiler after heat exchange. So it is an organic heat circulation system.
Working Principle
It is a type of indirect heating in which thermal oil as a liquid phase heat transfer medium is heated and circulated to one or more heat energy users within a closed loop system. The electric heating tube is directly inserted into the thermal oil for direct heating. A circulating pump is used to create liquid-phase circulation of heat using equipment, the heat conduction oil will return to the heater via the circulating pump, again to absorb heat, and transfer the heat to the heat using equipment. this process is repeated again and again, realizing continuous transfer of heat. As a result, the temperature of objects being heated rises, and heating requirements are fulfilled.
Advantages of thermal oil heater
- Low working pressure
Liquid phase transport heat energy can reduce working pressure and get high temperature, heat carrier is smaller than the water saturation steam pressure 70 to 80 times, general heating is less than 0.5 Mpa.
1 - High heating temperature
Electric heating thermal oil heater can reach a temperature of 340C under the low pressure and the heating temperature automatic control. When the heating temperature is up to 300C, the working pressure is just one seventieth of the saturated steam pressure.
2 - Environmental protection design
Electric heating thermal oil heater is provided with new electrical heating system, using electricity instead of coal, saving cost, protecting environment without pollution.
3 - High thermal Efficiency
Electric heating thermal oil heater can reach the efficiency of 95%, and achieve stable & even heating and accurate temperature control.
