| Gender: | female,male |
|---|---|
| Type: | SMA |
| Brand Name: | FUTAI |
| Color: | gold |
| Model Number: | FT-SMA-JY1.5-G01 |
| Place of Origin: | China (Mainland) |
| product name: | sma rf connector |
| material: | brass |
| plated: | gold plated |
| insulator: | PTFE |
| sample: | welcome ask sample for testing |
Quick Details
Specifications

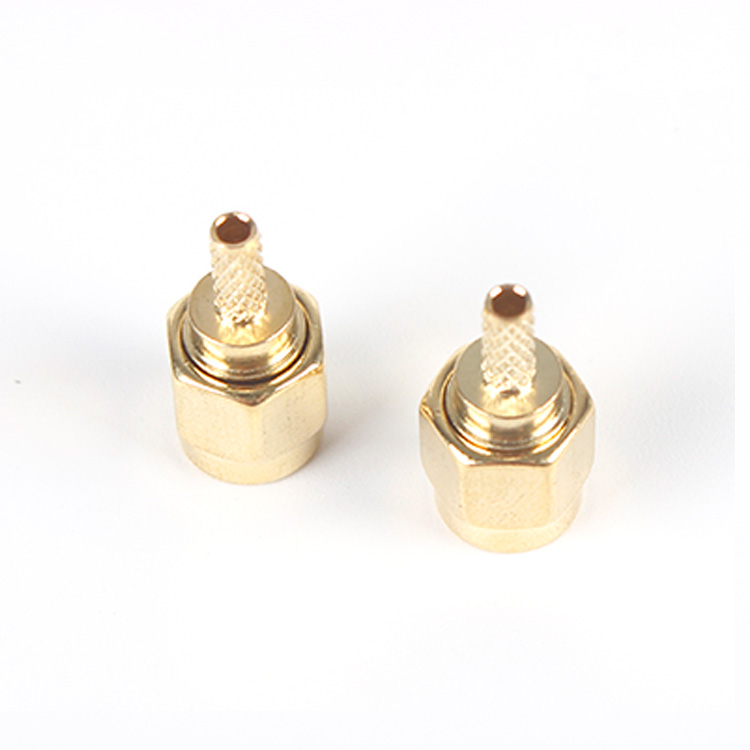

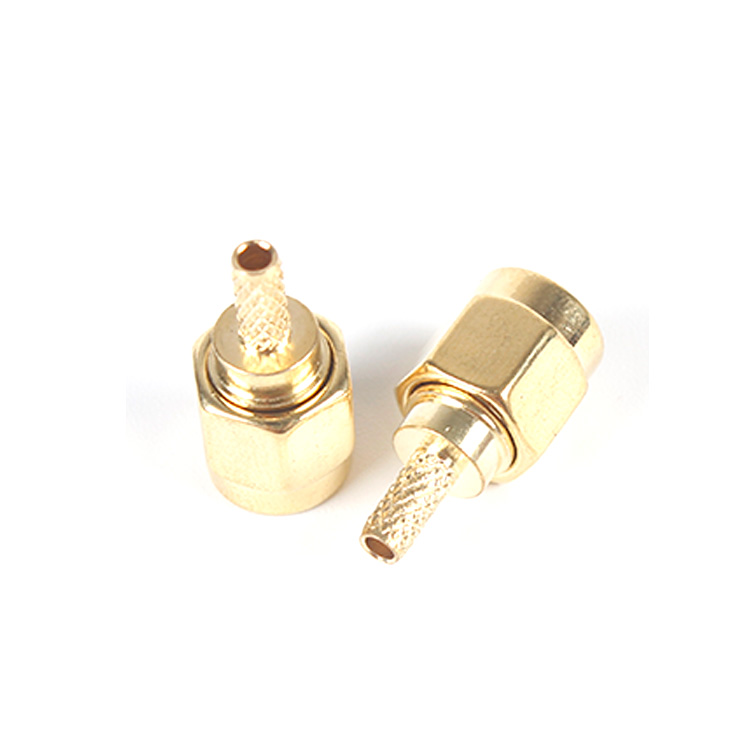

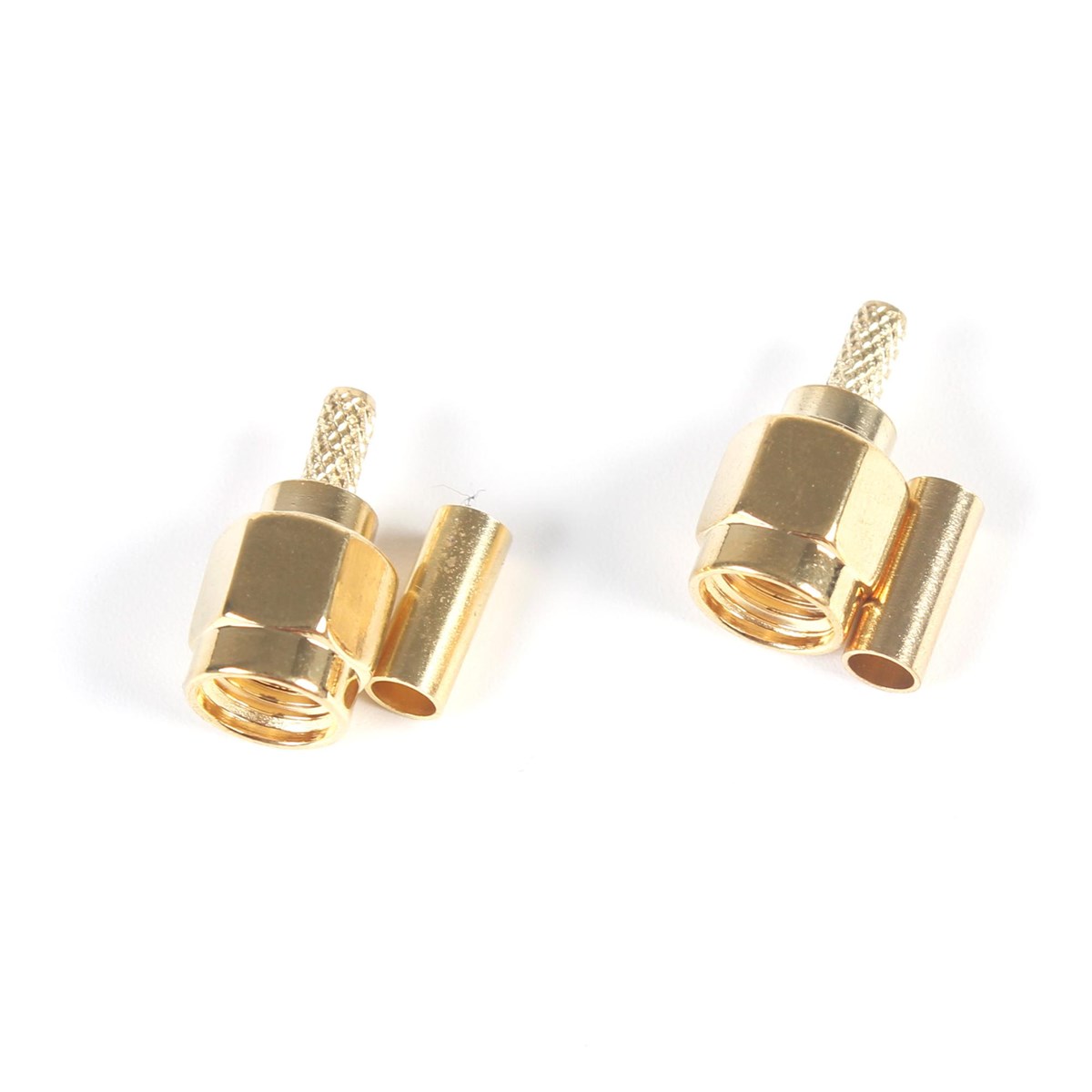

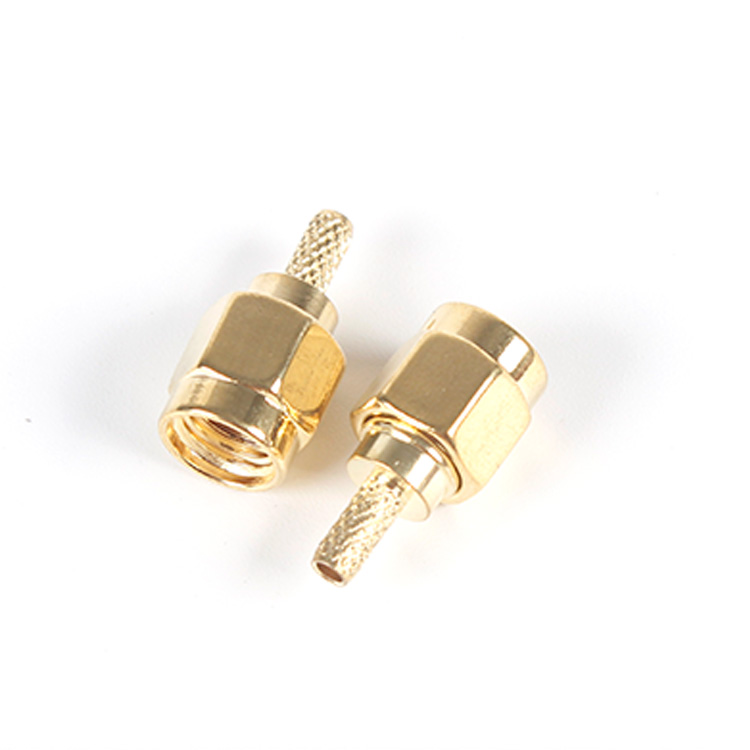

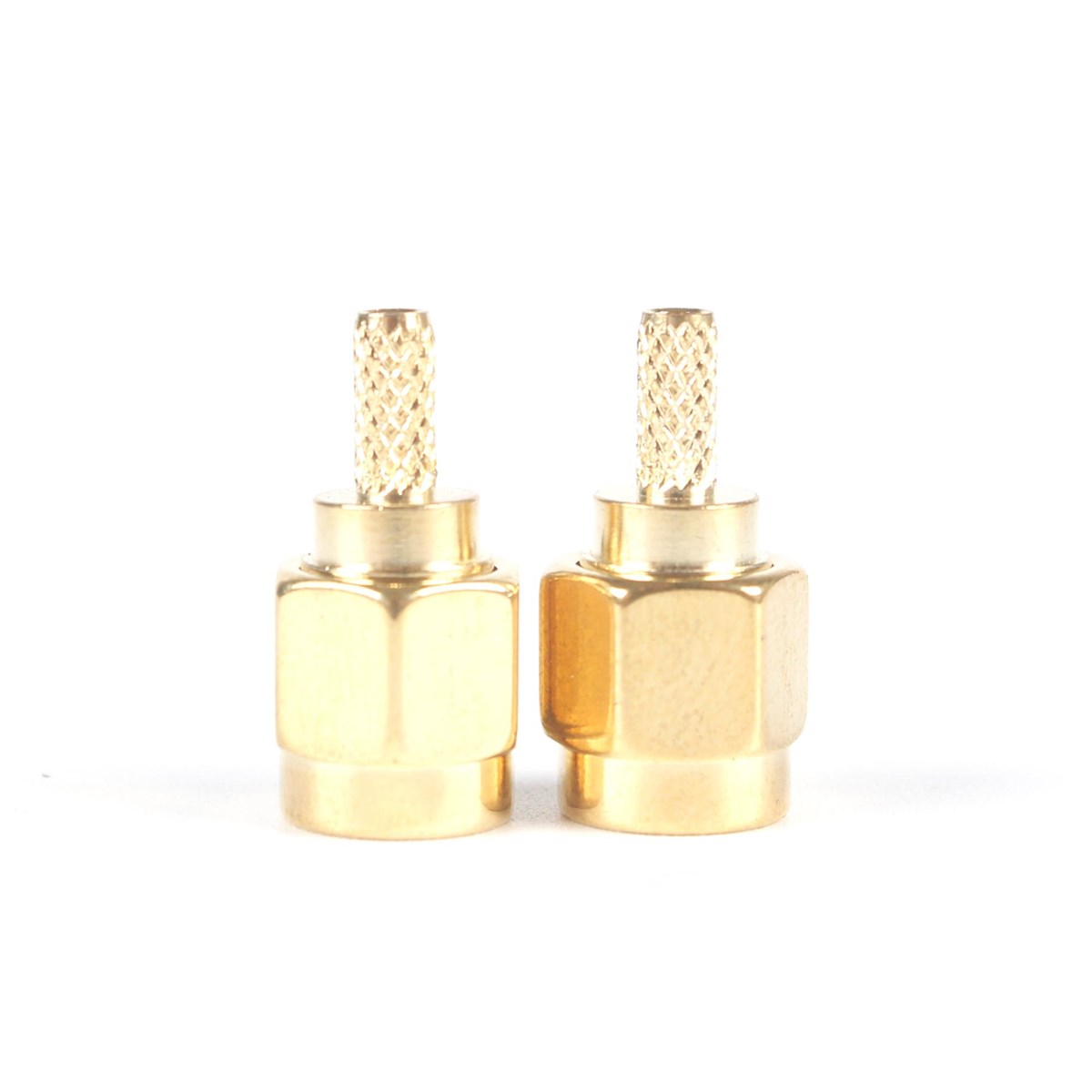

Hot Sale FT-SMA-JY1.5-G01 SMA RF Connector
Specifications:
Model |
FT-SMA-KY1.5-G01 | |
Major Technical Characteristics | ||
Type |
SMA-KY1.5-G01 | |
Impedance |
50 | |
Frequency Range |
DC~12.4GHz(Semi-Rigid Cable DC-18GHz) | |
Center conductor retention force |
0.28 N | |
Insertion Loss |
0.15dB/6GHz | |
Voltage Standing Wave Ratio |
Straight Flexible Cable 1.10+0.02f Semi-Rigid Cable1.07+0.018f | |
Right angle Flexible Cable 1.20+0.03f Semi-Rigid Cable1.17+0.02f | ||
Durability(mating) |
500(cycles) | |
Cable |
RG174 Cable | |
Material & Plating | ||
Body |
Brass |
Gold plated |
Pin contact |
Brass |
Gold plated |
Socket contact |
Beryllium-copper Customized) |
Gold plated |
Resilient contact |
Beryllium-copper |
Gold plated |
Insulator |
PTFE | |
Crimp ferrule |
Copper alloy |
Nickel or gold plated |
O-ring sealing |
6146 silicone rubber | |
We can provide other materials and plating specifications according to customer's Requirements.
Pictures
about Us
Futai HongKong Co., Ltd is specialized in designing manufacturing and selling all kinds of RF connectors, Cable Assemblies and antennas. Our subsidiary Jinrei Communication co., ltd is located in are three catagories:, RF Connector, Cable Assembly and Antenna.
Connectors are including RF Connectors (with SMA,MMCX, MCX, TNC, F, BNC,N, and so on).
Connectors are including RF Connectors (with SMA,MMCX, MCX, TNC, F, BNC,N, and so on).
Cable assemblies are includGaoqiao, Danyang City,Jiangsu.
Our major products ing interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).
Antenna are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.
Our major products ing interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).
Antenna are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.
the corporation has passsed ISO9001-2000 certification and ISO14001 in 2004.All of our products and raw materials are in line with the EU ROHS certification.
Our Professional R&D staff develop and research latest designs to meet global market.
Company purpose: Technological Innovation, Pragmatism, Customer Satisfaction.
Quality principal: Continuous Improvement, Become the Best.
We are looking forward to establishing business relations with clients from all over the world.
FAQ
Q1:Where can i get the product and price information?
A1:You can send us inquiry e-mail or directly contact us,when we receive your e-mail we'Ll contact you.
Q2:how long Can i get the sample?
A2:that is depends on your products, within 3-7 days is required generally.
Q3:how to ship the goods?
A3:We ship the products by courier company or if you have DHL,UPS,FedEx account,we can use it to ship sample.
Q4:What shall we do if we do not have drawings?
A4:Please send your sample to our factory,then we can copy or provide you better solutions, please send us pictures or drafts with dimensions(Length,Hight,Width), CAD or 3D file will be made for you if placed order.
Q5:Will my drawings be safe after sending to you?
A5:Yes, we will keep them well and not release to the third party without your permission.
Q6:how do you handle after-sales service?
A6:If you have workers who know how to repair,please consult our technical support. If there is no engineer, please return the goods,we can repair them for you.
Q7:What kinds of information you need for quote?
A7:Kindly please provide the product drawing in PDF,and will be better you can provide in step or IGSMOQ.
Please contact us with any questions!
