| Brand Name: | CHIKEK |
|---|---|
| Card type: | Mifare 1k/4k,NFC,EM4x35,I-code SLI |
| Communication: | UART TTL |
| Dimension: | 34.5mmx58mmx3mm |
| Frequency: | 13.56MHz |
| Model Number: | CHK342MT |
| Place of Origin: | China (Mainland) |
| Antenna: | Inbuilt on board |
| Protocol: | ISO14443A/B ISO15693 |
Quick Details
Specifications
Key Features:
DC3.3V ~5V power supply, UART-TTL interface;
Adopts ARM MCU solution, lower power consumption;
Compliant with ISO14443A/B, ISO15693 standard;
R/W MIFARE Classic 1K /4K, MIFARE Ultralight, MIFARE Ultralight C,NFC NTAG, MIFARE PRO,ISO14443A-4 contactless CPU card, I CODE SLI/SLI S, TI 2048,Fujitsu MB89R112A metal tags,etc;

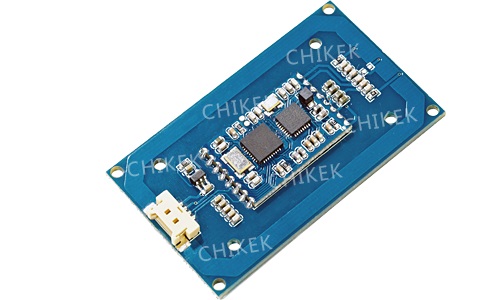

Inbuilt antenna on board, reading range up to 4 ~ 10cm
Technical Parameters:
Electrical Specification |
|
Power supply |
DC 3.3V ~ 5V |
Power consumption |
Max current:<150mA, Standby current: <1 mA |
Operation frequency |
13.56MHz |
Baudrate |
9600~115200 bit/s ( default 9600bps) |
Interface |
UART TTL |
Antenna |
Inbuilt on board |
Reading range |
up to 4 cm ~ 10 cm( depends on antenna and cards) |
Mechanical Specifications |
|
Dimension |
34.5mmx58mmx3mm (LxWxH) |
Weight |
8g |
Material |
FR-4, Blue |
Model |
CHK342MT |
Environmental Conditions |
|
Operation temperature |
-20C+80C |
Storage temperature |
-40C+85C |
Humidity |
Relative humidity 5%95% |
Supported Standard/ Tags |
|
ISO14443 A |
Read/write: MIFARE Classic 1K /4K, MIFARE Ultralight, MIFARE Ultralight C, NTAG 21x
Read UID only: Read UID only of all other ISO14443A RFID tags |
ISO14443 B |
SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176 |
ISO15693 |
EM4135, EM4043, EM4x33, EM4x35, I-Code SLI / SLIX, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity) |
SDK information |
|
Demo software |
WINDOWS, C# language |
Files |
Comprotocol document API document User Manual Demo.Exe |
Note: Other functions and details to be continued and upgrade
