Quick Details

Brand Name: CHIKEK
Card type: ATA5577/5567
Communication: UART TTL
Dimension: 25mmx16.5mmx2.8mm (LxWxH)
Frequency: 125KHz
Model Number: CHK102MT
Place of Origin: China (Mainland)
Antenna: External,stamp hole
Support: ISO11784/11785

Specifications

Introduction:

    CHK102MT is a 125KHz embedding RFID reader Module, configurable for ISO/IEC 11784/785 compatibility, and read/write contactless T5577 identification card.

    this module is available to set to read data in different blocks or pages, and set password protection or without password, also support to use different modulation/coding way as RF16, RF32 or RF64, etc.


    It works with UART TTL interface, DC 3.3V ~5V lower power consumption, optional with different sizes RFID antennas coils for specific requesting reading range from 5 -10cm.


    Also the according functional wall mount/access control reader with housing and IP65 standard can be offered when demand.


Key Features:


  • Frequency available with 125KHz
  • 3.3V ~ 5V DC Power supply, UART-TTL interface
  • R/W or Read-only UID of ATA 5577 and its compatible cards;
  • Available to set to read different Page or Block address with password;
  • Optional output as WG26, WG34 or UART TTL
  • External antenna, reading range up to 5~7cm
  • External LED&BUZ available (external driver circuit needed)

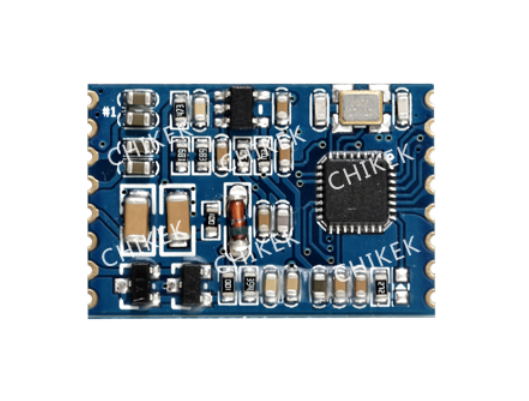

125KHz T5577 Access Control Card ReadWrite RFID Module
125KHz T5577 Access Control Card ReadWrite RFID Module

Technical Parameters:


Electrical Specification



Power supply

DC 3.3V-5V

Power consumption

< 45mA

Operation frequency

125KHz

Baudrate

9600~115200 bit/s ( default 9600bps)

Interface

UART TTL

Antenna

External, stamp-hole

Reading range

50-70mm (depends on tag and antenna size)



Mechanical Specifications



Dimension

25mmx16.5mmx2.8mm (LxWxH)

Weight

3G

Material

FR-4, Blue

Model

CHK102MT



Environmental Conditions



Operation temperature

-20C+80C

Storage temperature

-40C+85C

Humidity

Relative humidity 5%95%



Supported Standard/ Tags



ISO11784/11785

ATA5567, ATA 5577 and compatible cards



SDK information



Demo software

Windows, C# program language

Files

Comprotocol document

User Manual

Demo.Exe



    Note:  Other functions and details to be continued and upgraded
