| Gender: | Male |
|---|---|
| Type: | MCX |
| Brand Name: | FUTAI |
| Color: | gold |
| Model Number: | FT-Connector-049 |
| Place of Origin: | China (Mainland) |
| Product Name: | MCX Connector |
| Pins: | 1P |
| Plating: | gold plating |
| Sample: | welcome ask sample for testing |
Quick Details
Specifications
FT-Connector-049 MCX connector
Specifications:
Model |
FT-Connector-049 | ||
Major Technical Characteristics | |||
Type |
MCX-C-JY1.5-049 | ||
Impedance |
50 | ||
Frequency Range |
DC~6GHz | ||
Center conductor retention force |
0.28N | ||
Insertion Loss |
0.18dB(1GHz) | ||
Voltage Standing Wave Ratio |
Straight 1.20/1GHz | ||
Right angle 1.45/1GHz | |||
Durability(mating) |
500(cycles) | ||
Cable |
RG174,RG316 | ||
Material & Plating | |||
Body |
Brass |
Gold plated | |
Pin contact |
Tin bronze |
Gold plated | |
Resilient contact |
Beryllium-copper |
Gold plated | |
Socket contact |
Beryllium or tin bronze |
Gold plated | |
Insulator |
PTFE | ||
Crimp ferrule |
Copper alloy |
Nickel or gold plated | |
O-ring sealing |
6146 silicone rubber | ||
We can provide other materials and plating specifications according to customer's Requirements.

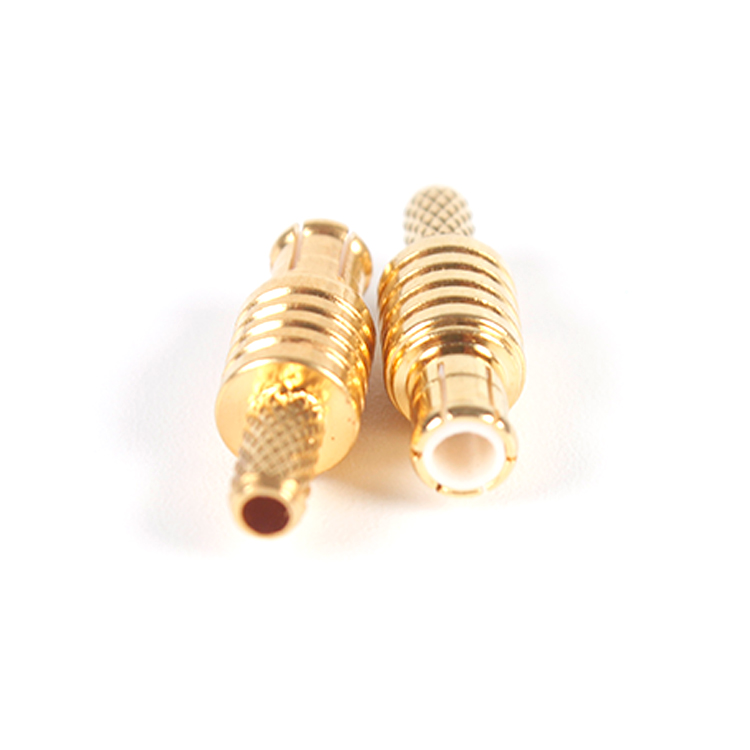

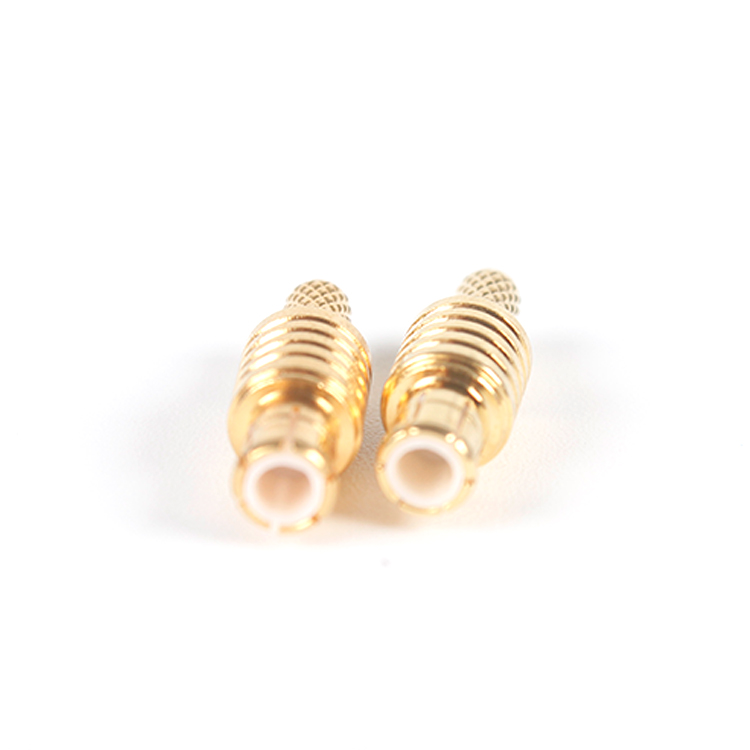

Pictures
