| Brand Name: | CHIKEK |
|---|---|
| Card type: | MIFARE, NFC, SRI4K, I-Code SLI |
| Communication: | USB-HID driverless/HID Keyboard |
| Dimension: | 22mmx53mmx5mm (LxWxH) |
| Frequency: | 125KHz/134.2KHz/13.56MHz |
| Model Number: | CHK37xMK |
| Place of Origin: | China (Mainland) |
| Antenna: | External,UFL/Molex/stamp hole |
| Supported Standard: | EM, ISO11784/11785,ISO14443A/B,ISO15693,ISO7816 |
Quick Details
Specifications
Key Features:
DC 3.3V~ 5V power supply, HID Keyboard interface;
Compliant with ISO11784/11785, or ISO14443A/B, ISO15693, ISO18092 Standard;
Available to operate DESFire PICC level, Application ID create/delete/format, etc;
Support to create Standard DataFile&BackupFile, and ValueFile, RecordFile, etc;
Dimension with 22mmX53mmX5mm(comply for all product in this series);
External antenna, reading range up to 5 ~ 7cm;
Data output in any file of text, excel, word, etc directly in HEX or DEC, etc;

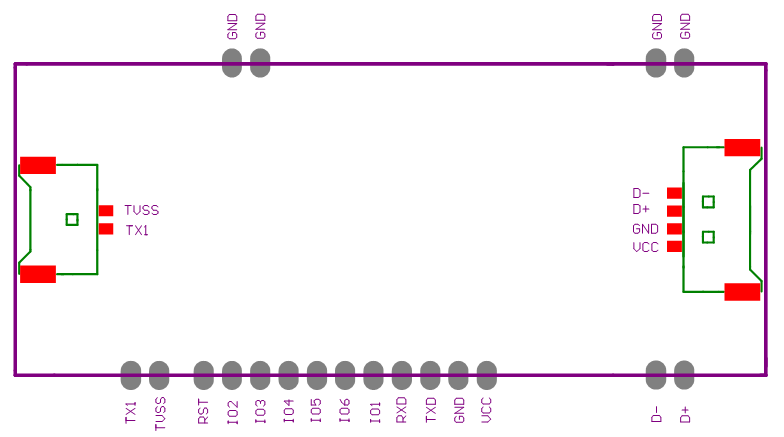

Connection available with 1.25mm-pitch PIN connector, or stamp-holes;
External LED&BUZZER(external driver circuit needed)
Technical Parameters:
Electrical Specification |
|
Power supply |
DC 3.3V ~ 5V |
Power consumption |
Max current:<50mA, Standby current: <1 mA |
Operation frequency |
125KHz/134.2KHz, or 13.56MHz |
Baudrate |
9600~115200 bit/s ( default 9600bps) |
Interface |
USB-HID driverless or HID Keyboard |
Antenna |
External, UFL/Molex connector, or stamp hole |
Reading range |
up to 4 cm ~ 10 cm( depends on antenna and cards) |
Mechanical Specifications |
|
Dimension |
22mmx53mmx5mm (LxWxH) |
Weight |
7g |
Material |
FR-4, Blue |
Environmental Conditions |
|
Operation temperature |
-20C+80C |
Storage temperature |
-40C+85C |
Humidity |
Relative humidity 5%95% |
Supported Standard/ Tags |
|
|
EM4100,EM4200,TK4100 |
ISO11784/11785 |
HitagS 64, HitagS 256, HitagS 2048 |
ISO14443 A |
Read/write: MIFARE Classic 1K /4K, MIFARE Ultralight/Ultralight C, MIFARE DESFireEV1, MIFARE Smart MX, MIFARE Plus S / X, MIFARE Pro X, NTAG 21x
Read UID only: Read UID only of all other ISO14443A RFID tags |
ISO14443 B |
SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176 |
ISO15693 |
EM4135, EM4043, EM4x33, EM4x35, I-Code SLI / SLIX, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity) |
ISO7816 |
PSAM T=1 (optional) |
Model List |
Supported standard |
CHK171MK |
EM, ISO11784/11785 |
CHK371MK |
ISO14443A only |
CHK372MK |
ISO14443A/B, ISO15693 |
CHK373MK |
ISO14443A/B, ISO15693, MIFARE DESFire |
SDK information |
|
Demo software |
WINDOWS, C# language |
Files |
Comprotocol document API document User Manual Demo.Exe |
Note: Other functions and details to be continued and upgrade
