Quick Details

Brand Name: CHIKEK
Card type: MIFARE, NFC, SRI4K, I-Code SLI
Communication: USB(micro USB)
Dimension: 80mmX84mmX12mm (LxWxH)
Frequency: 13.56MHz
Model Number: CHK301W-02U
Place of Origin: China (Mainland)
Antenna: Internal
Protocol: ISO14443A/B, ISO15693

Specifications

Key Features:


  • Virtual USB COM interface,micro USB connector
  • Compliant with ISO/IEC14443-4 Type A/B, ISO/IEC15693 international Standard
  • Available working mode of Read/Write or Read UID only
  • Support contactless cards of MIFARE Classic, MIFARE Ultralight/UL C,NFC NTAG tags, I CODE SLI/SLI S, Fujitsu MB89R112A metal tags, etc
  • Support DES/3DES/AES/MAC encryption algorithm, password writing/stored
  • Available to operate MIFARE DESFire EV1 Card's PICC level, Application ID create/ delete/format, etc
  • Internal LED and BUZ indication for working status
                 USB Port Contactless Card RFID Desktop Reader Writer 1356MHz

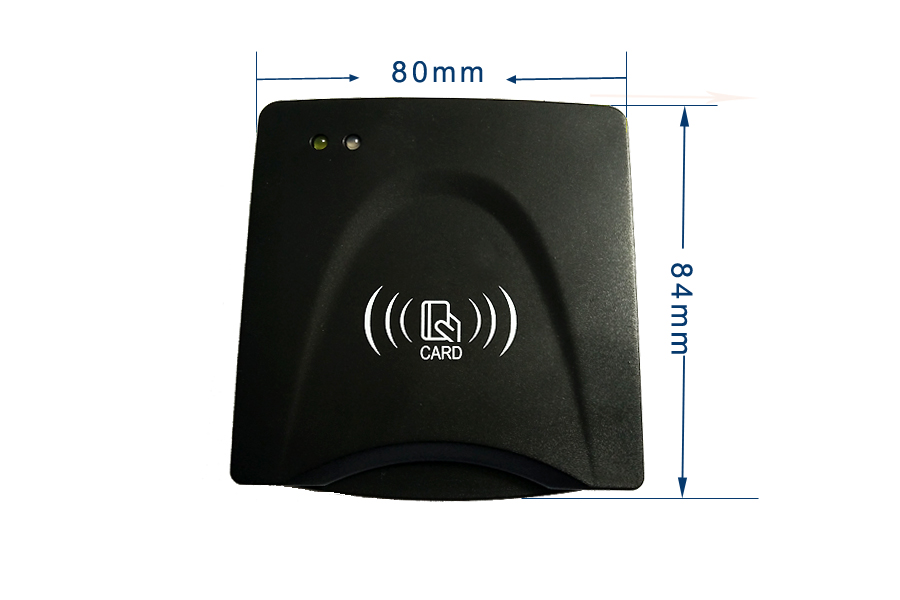

USB Port Contactless Card RFID Reader Writer 1356MHz

Technical Parameters:



Electrical Specification



Power supply

DC 5V from USB

Power consumption

Max current:<50mA,   Standby current: <1 mA

Operation frequency

13.56MHz

Baudrate

9600~115200 bit/s ( default115200bps)

Interface

USB (micro USB)

Antenna

Internal

Reading range

up to5 cm ~ 10 cm( depends on antenna and cards)



Mechanical Specifications



Dimension

80mmX84mmX12Mm (LxWxH)

Weight

50g

Material

ABS, Black gloss surface



Environmental Conditions



Operation temperature

-20C+80C

Storage temperature

-40C+85C

Humidity

Relative humidity 5%95%



Supported Standard/ Tags



ISO14443 A

Read/write:

MIFARE Classic 1K /4K, MIFARE Ultralight, MIFARE Ultralight C, MIFARE DESFire EV1, MIFARE Smart MX, MIFARE Plus S / X, MIFARE Pro X, NTAG 21x



Read UID only:

Read UID only of all other ISO14443A RFID tags

ISO14443 B

SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176

ISO15693

EM4135, EM4043, EM4x33, EM4x35, I-Code SLI / SLIX, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity), Fujitsu MB89R112A



SDK information



Demo software

WINDOWS,  C# language

Files

Comprotocol document

API document

User Manual

Demo.Exe



     Note:  Other functions and details to be continued and upgrade
