| Brand Name: | techwin |
|---|---|
| Wavelength: | no |
| Data Rate: | no |
| warranty: | 12 months |
| Connector: | usb |
| Model Number: | CKLS-1064-B |
| Place of Origin: | China (Mainland) |
| Application: | Laser Marking |
| Certification: | CE,ISO |
| Graphic Format Supported: | AI |
| Condition: | New |
| Applicable Material: | metal |
| After-sales Service Provided: | No overseas service provided |
| Power(W): | 1 |
| Cooling Mode: | Air Cooling |
| CNC or Not: | Yes |
| Laser Type: | Fiber Laser |
Quick Details
Specifications
Techwin fiber amplifier single-mode CW fiber lasers
Introduction
Techwin 1.0μm single-mode CW fiber lasers of are a highly integrated continuous Yb-doped fiber laser system with high power output. these fiber lasers employ integrated design of all fiber structure and use double cladding fiber pumping technology, thus realizing high performance output laser. The output power can be up to 20W and near diffraction-limited beam quality is achieved at the same time. They can be widely used in the areas of scientific research, experimental teaching and device testing.
Techwin 1.0μm single-mode CW fiber lasers employ the control system based on microprocessor which has stable property, long lifetime and free maintenance. with a clear interface and easy control, the LCD on the front panel can give a real-time display of the operating state of the output power and temperature. the LCD can also offer warning messages. Besides, in order to be convenient for system integration, Techwin can offer modularized package according to the user`s requirements.
Features:
High output power: up to 50W
Excellent beam quality
High Stability and reliable performance
Single-mode output, PM optional
Applications:
Test and measure
Scientific research
Spectroscopy analysis
Other lab applications

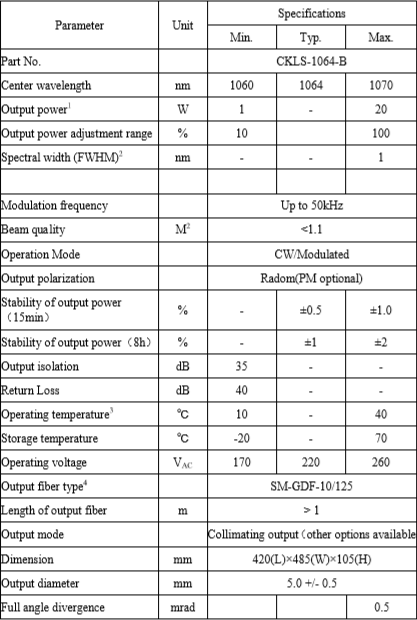

Specification
1.Output power is optional, typical output power: 1W, 2W, 5W, 10W, 20W, 30W,50W;
2. Spectral width on request;
3. the output power stability is measured under 25℃, 30 minutes after warm-up;
4. PM fiber is optional.
Order information:
CKLS-1064-B-<PW>
B: Benchtop
PW: Output power in W, 5-5W, 10-10W, 20-20W, 50-50W,
