| Brand Name: | Q&T |
|---|---|
| Accuracy: | Better Than 1% |
| Power Supply: | 24V |

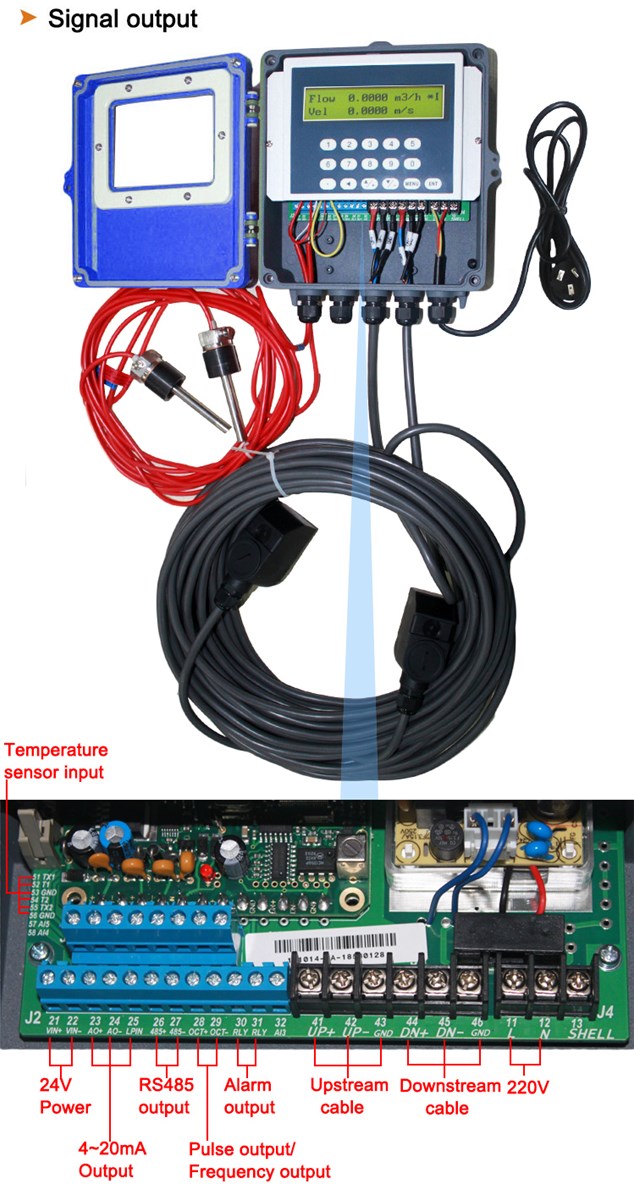

| output: | RS485;4-20mA;0-20mA;OCT |
| Medium: | Aluminium alloy |
| Model Number: | QTDS-H100 |
Quick Details
Specifications
ISO approved wall mounted Ultrasonic sea water flow meter
Low cost fixed mounted inline pipe type stationary ultrasonic flow meters Application:
Product Detail
Specification
Transducers Installation
V-method Installation
W-method Installation
Low cost fixed mounted inline pipe type stationary ultrasonic flow meters Application:

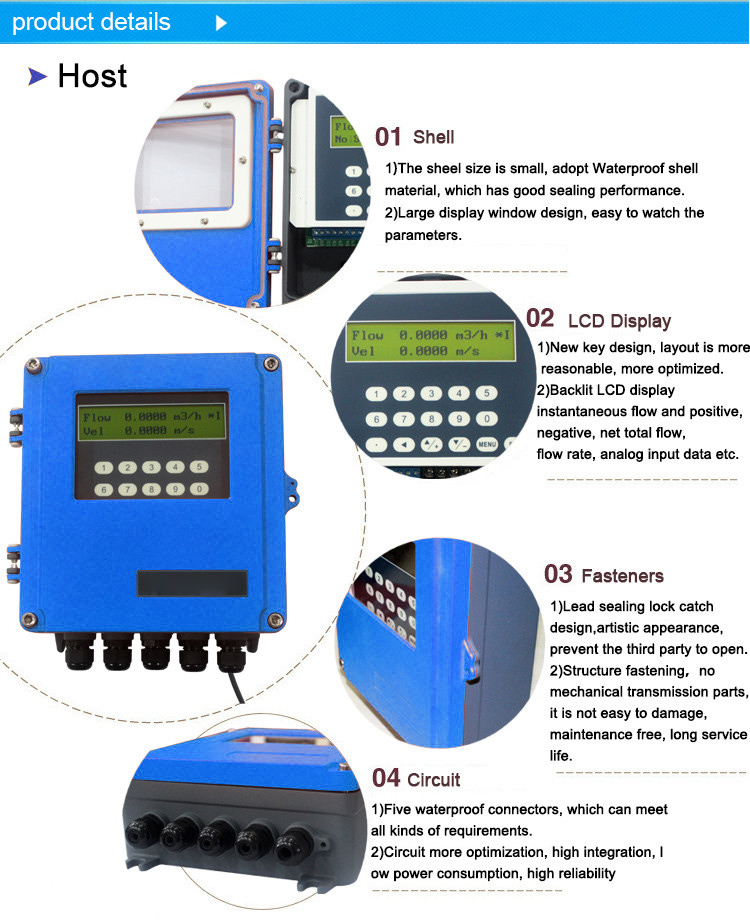

the ultrasonic flow meter is designed to measure the fluid velocity of liquid within closed conduit. the transducers are a non-contacting, clamp-on type, which will provide benefits of non- fouling operation and easy installation.
Product Detail
Specification
| Accuracy | Better than 1% |
| Measurement Period |
500ms |
| the maximum Flow rate |
64 m/s |
| Disply | 2*10 LCD display with english totalizers for net accumulation and positive and negative accumulations |
| Body material | Aluminium alloy |
| Operation | 2*5 membrane keyboards |
Input |
Three 4-20mA Current input,accuracy 0.1%,can collect temperature, Pressure,level signals etc. |
| Two way three wired PT100 | |
| Data storage | Built-in SD sard can store time,instant flow,totle flow,signal statusand so on, Via special Software send the data to computer,and easy to Statistics and Management |
| Communication | MOBUS,M-BUS,FUJI extension agreement,compatible for other Manufacturers's communication |
| Communication Interface | RS-232C,baud-rate:from 75 to 57600.Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. |
Other function |
Automatic memory the negative and positive and net flow 512 days ago and 128 month ago and ten years ago. |
| Can automatic memory outage and flow data before thirty times,can also Achieve the flow automatically and manually refill, All flow can be read by MODBUS | |
| Can programme ration or batch controller,Self diagnosis failure function | |
| Can via email to transmit the code to update the software |
Transducers Installation
V-method Installation
V-method installation is the moswidely used mode for daily measurement with pipe inner diameters ranging from15 millimeter to 200 millimeter.It is also called reflective mode or method.
Z-method is commonly used when the pipe diameter is between 300 millimeters and 500 millimeters.
W-method Installation
W-method is usually used on plastic pipes with a diameter from 15 millimeters to 100 millimeters.
